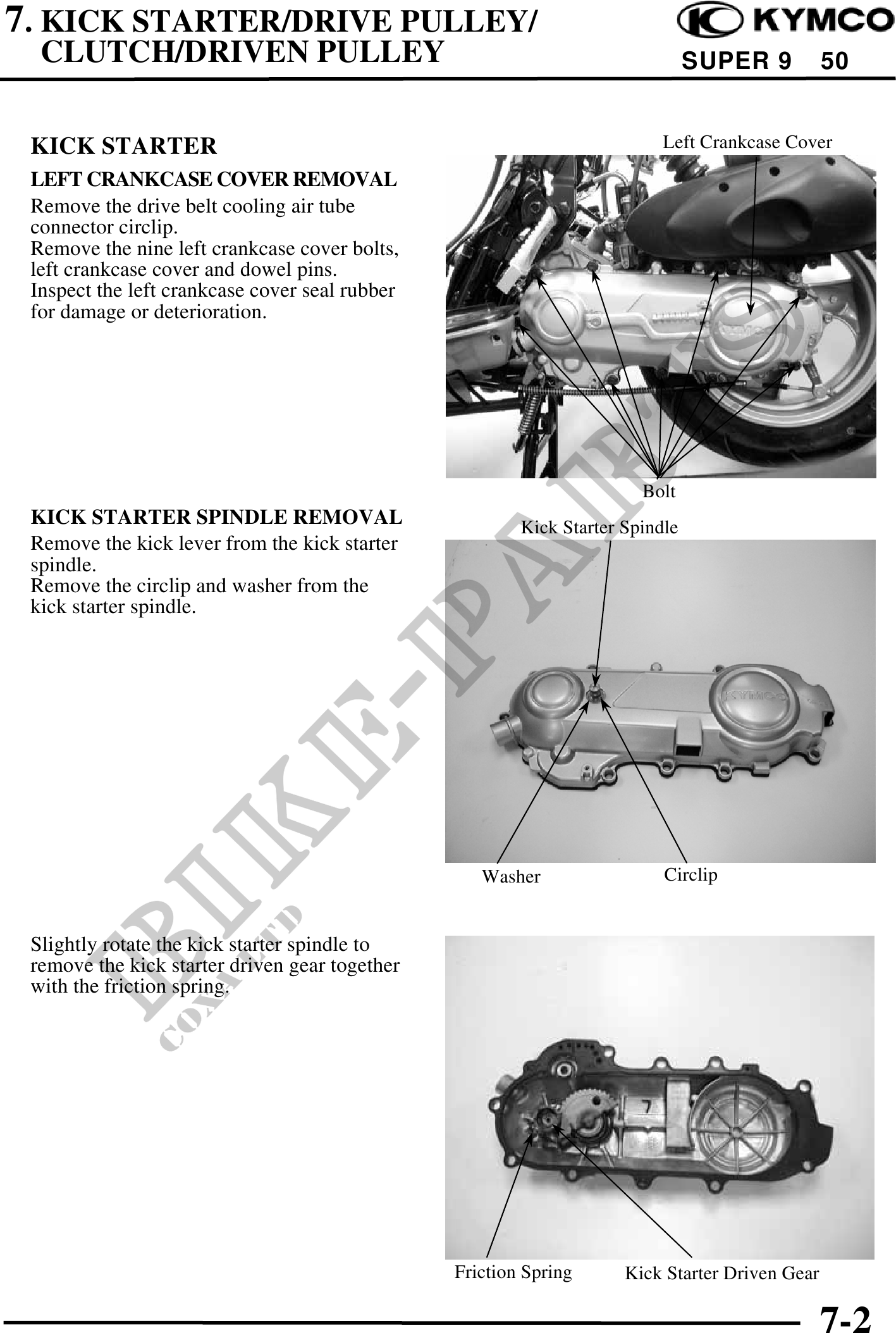

7. KICK STARTER/DRIVE PULLEY/
CLUTCH/DRIVEN PULLEY SUPER 9 50
KICK STARTER Left Crankcase Cover
LEFT CRANKCASE COVER REMOVAL
Remove the drive belt cooling air tube
connector circlip.
Remove the nine left crankcase cover bolts,
left crankcase cover and dowel pins.
Inspect the left crankcase cover seal rubber
for damage or deterioration.
Bolt
KICK STARTER SPINDLE REMOVAL Kick Starter Spindle
Remove the kick lever from the kick starter
spindle.
Remove the circlip and washer from the
kick starter spindle.
Washer Circlip
Slightly rotate the kick starter spindle to
remove the kick starter driven gear together
with the friction spring.
Friction Spring Kick Starter Driven Gear
7-2
