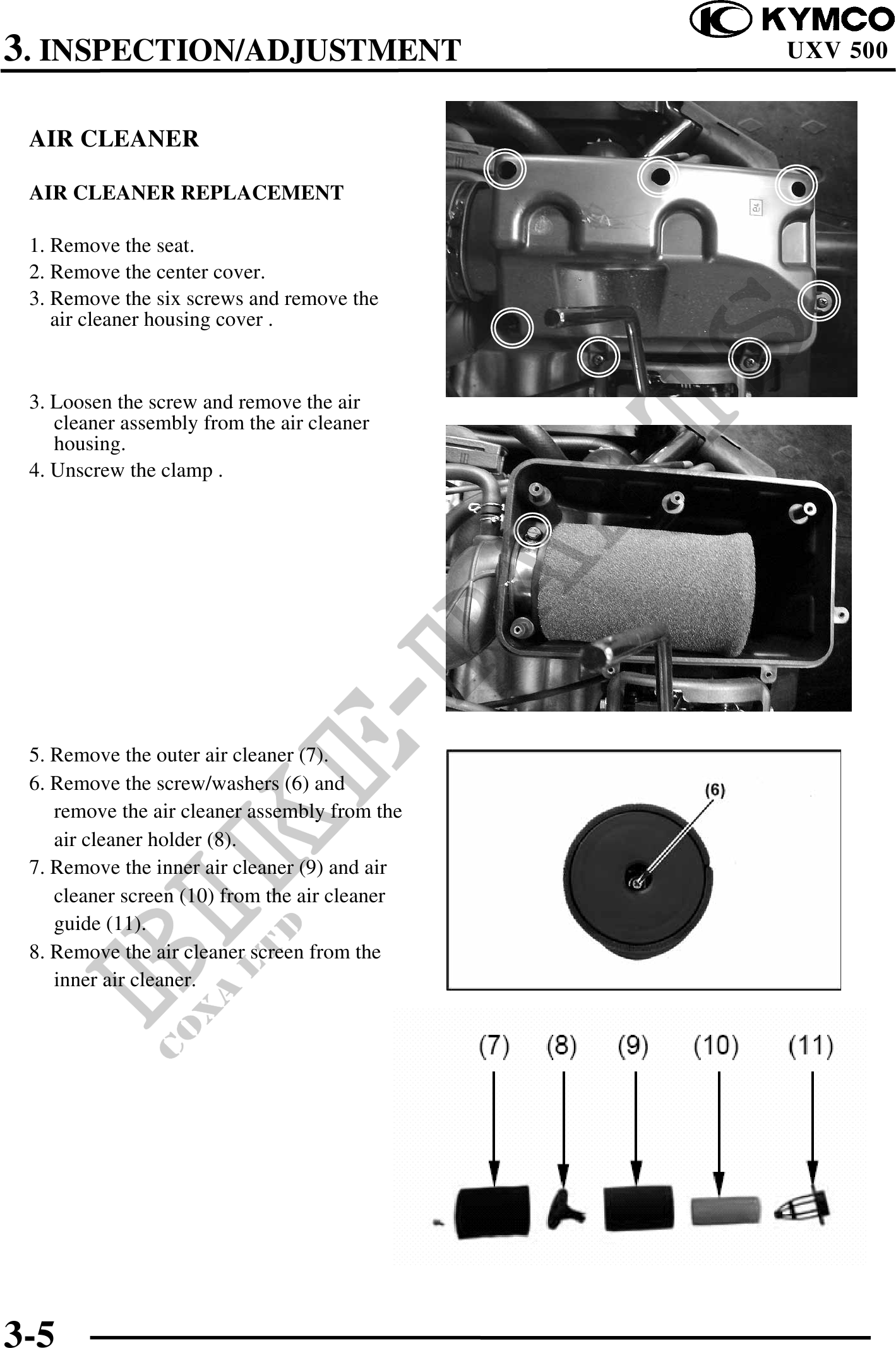

3. INSPECTION/ADJUSTMENT UXV 500
AIR CLEANER
AIR CLEANER REPLACEMENT
1. Remove the seat.
2. Remove the center cover.
3. Remove the six screws and remove the
air cleaner housing cover .
3. Loosen the screw and remove the air
cleaner assembly from the air cleaner
housing.
4. Unscrew the clamp .
5. Remove the outer air cleaner (7).
6. Remove the screw/washers (6) and
remove the air cleaner assembly from the
air cleaner holder (8).
7. Remove the inner air cleaner (9) and air
cleaner screen (10) from the air cleaner
guide (11).
8. Remove the air cleaner screen from the
inner air cleaner.
3-5
