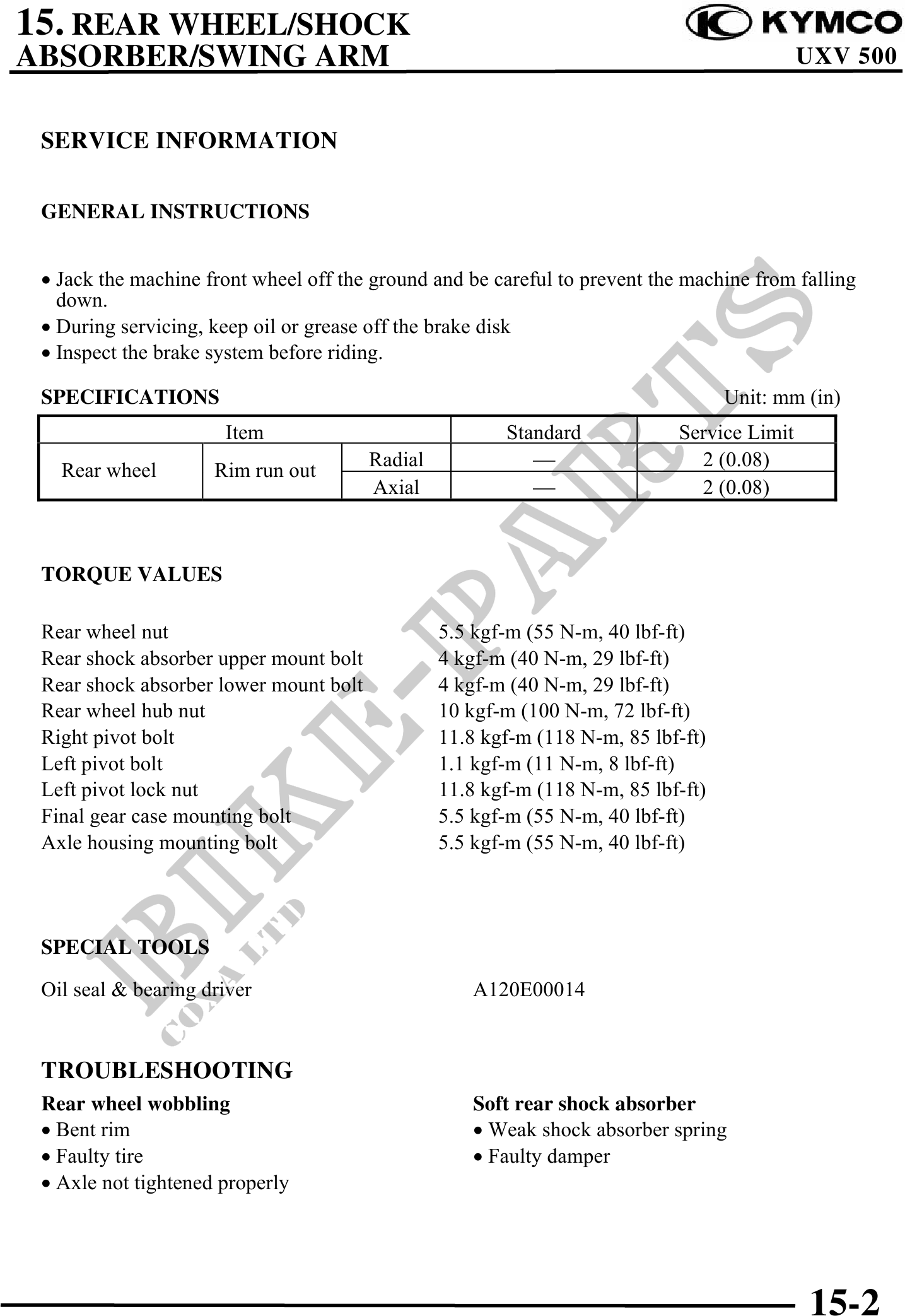

15. REAR WHEEL/SHOCK
ABSORBER/SWING ARM UXV 500
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· Jack the machine front wheel off the ground and be careful to prevent the machine from falling
down.
· During servicing, keep oil or grease off the brake disk
· Inspect the brake system before riding.
SPECIFICATIONS Unit: mm (in)
Item Standard Service Limit
Radial 2 (0.08)
Rear wheel Rim run out
Axial 2 (0.08)
TORQUE VALUES
Rear wheel nut 5.5 kgf-m (55 N-m, 40 lbf-ft)
Rear shock absorber upper mount bolt 4 kgf-m (40 N-m, 29 lbf-ft)
Rear shock absorber lower mount bolt 4 kgf-m (40 N-m, 29 lbf-ft)
Rear wheel hub nut 10 kgf-m (100 N-m, 72 lbf-ft)
Right pivot bolt 11.8 kgf-m (118 N-m, 85 lbf-ft)
Left pivot bolt 1.1 kgf-m (11 N-m, 8 lbf-ft)
Left pivot lock nut 11.8 kgf-m (118 N-m, 85 lbf-ft)
Final gear case mounting bolt 5.5 kgf-m (55 N-m, 40 lbf-ft)
Axle housing mounting bolt 5.5 kgf-m (55 N-m, 40 lbf-ft)
SPECIAL TOOLS
Oil seal & bearing driver A120E00014
TROUBLESHOOTING
Rear wheel wobbling Soft rear shock absorber
· Bent rim · Weak shock absorber spring
· Faulty tire · Faulty damper
· Axle not tightened properly
15-2
