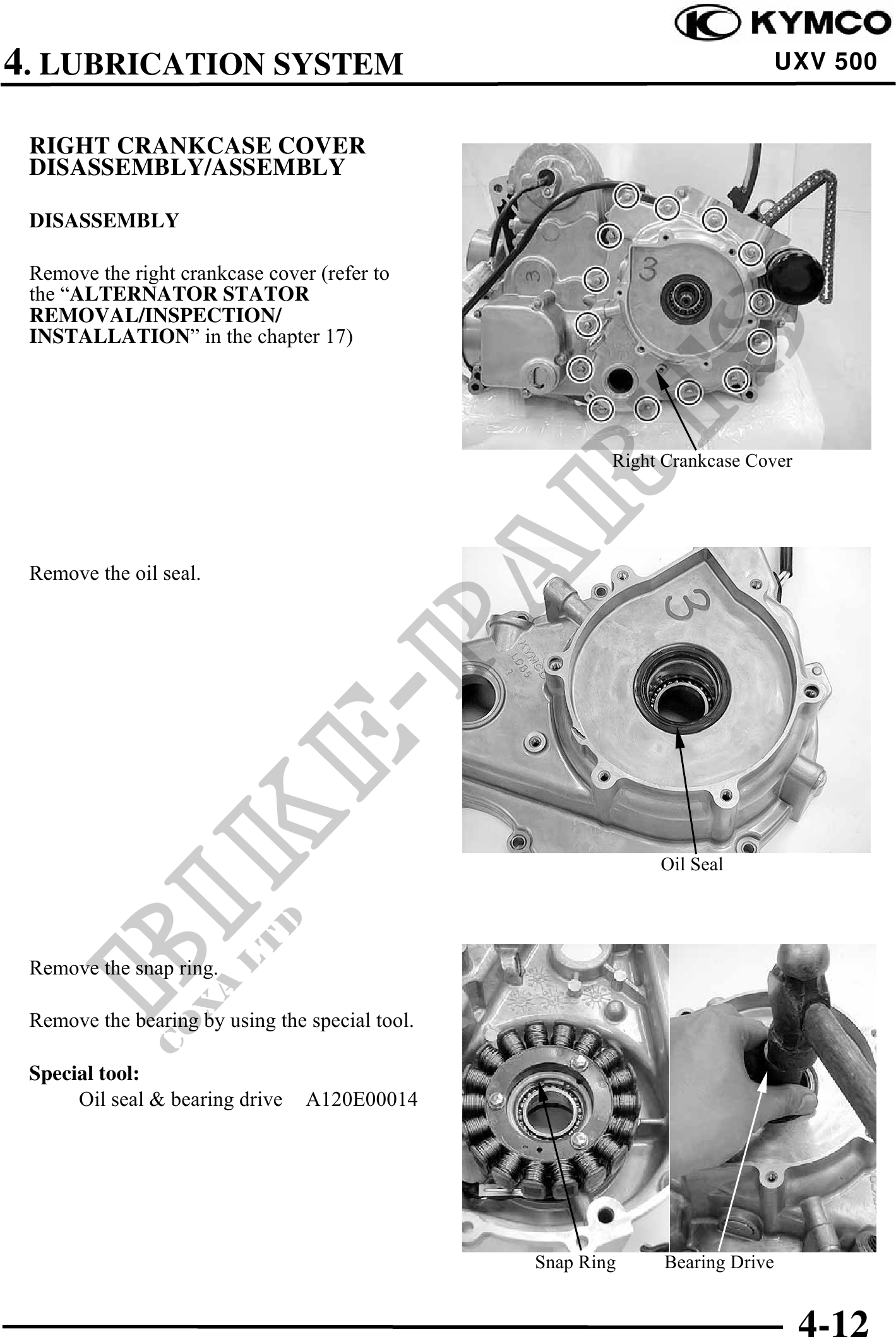

          4. LUBRICATION SYSTEM                                                          UXV 500


 RIGHT CRANKCASE COVER
 DISASSEMBLY/ASSEMBLY

 DISASSEMBLY

 Remove the right crankcase cover (refer to
 the "ALTERNATOR STATOR
 REMOVAL/INSPECTION/
 INSTALLATION" in the chapter 17)




                                                         Right Crankcase Cover




 Remove the oil seal.




                                                              Oil Seal




 Remove the snap ring.

 Remove the bearing by using the special tool.

 Special tool:
      Oil seal & bearing drive   A120E00014




                                                 Snap Ring     Bearing Drive


                                                                                 4-12
