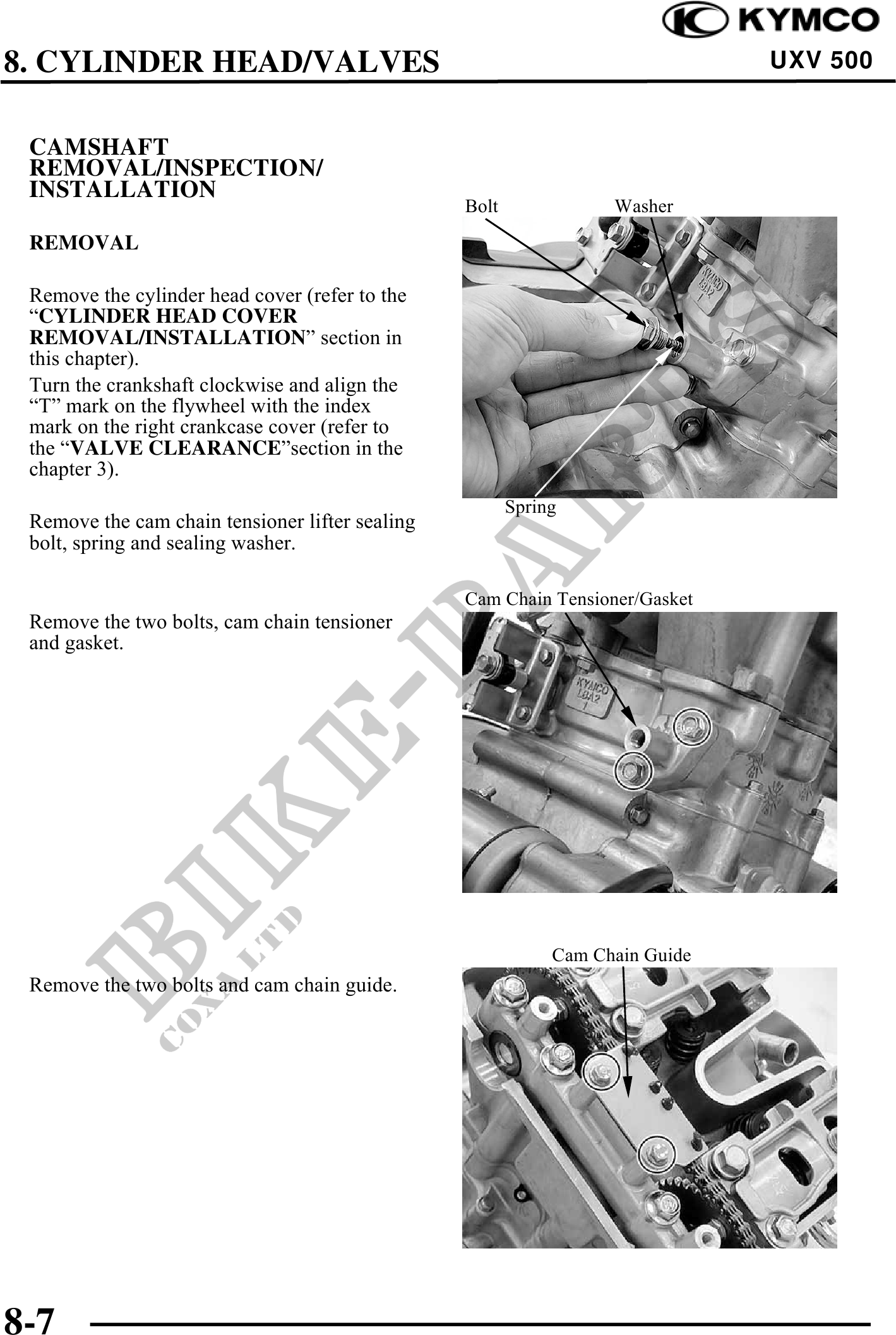

8. CYLINDER HEAD/VALVES UXV 500
CAMSHAFT
REMOVAL/INSPECTION/
INSTALLATION
Bolt Washer
REMOVAL
Remove the cylinder head cover (refer to the
"CYLINDER HEAD COVER
REMOVAL/INSTALLATION" section in
this chapter).
Turn the crankshaft clockwise and align the
"T" mark on the flywheel with the index
mark on the right crankcase cover (refer to
the "VALVE CLEARANCE"section in the
chapter 3).
Spring
Remove the cam chain tensioner lifter sealing
bolt, spring and sealing washer.
Cam Chain Tensioner/Gasket
Remove the two bolts, cam chain tensioner
and gasket.
Cam Chain Guide
Remove the two bolts and cam chain guide.
8-7
