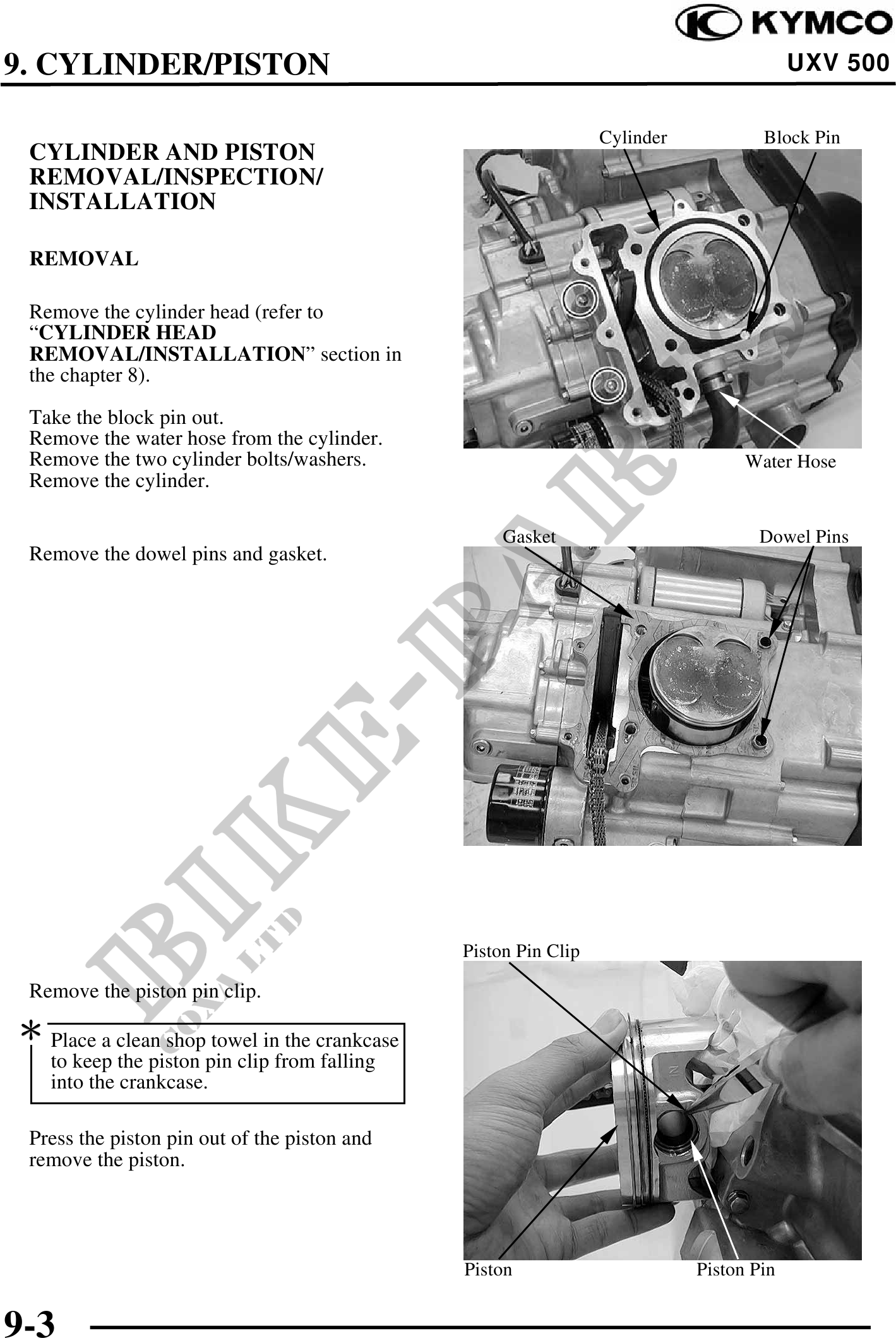

9. CYLINDER/PISTON UXV 500
Cylinder Block Pin
CYLINDER AND PISTON
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Remove the cylinder head (refer to
"CYLINDER HEAD
REMOVAL/INSTALLATION" section in
the chapter 8).
Take the block pin out.
Remove the water hose from the cylinder.
Remove the two cylinder bolts/washers. Water Hose
Remove the cylinder.
Gasket Dowel Pins
Remove the dowel pins and gasket.
Piston Pin Clip
Remove the piston pin clip.
Place a clean shop towel in the crankcase
to keep the piston pin clip from falling
into the crankcase.
Press the piston pin out of the piston and
remove the piston.
Piston Piston Pin
9-3
