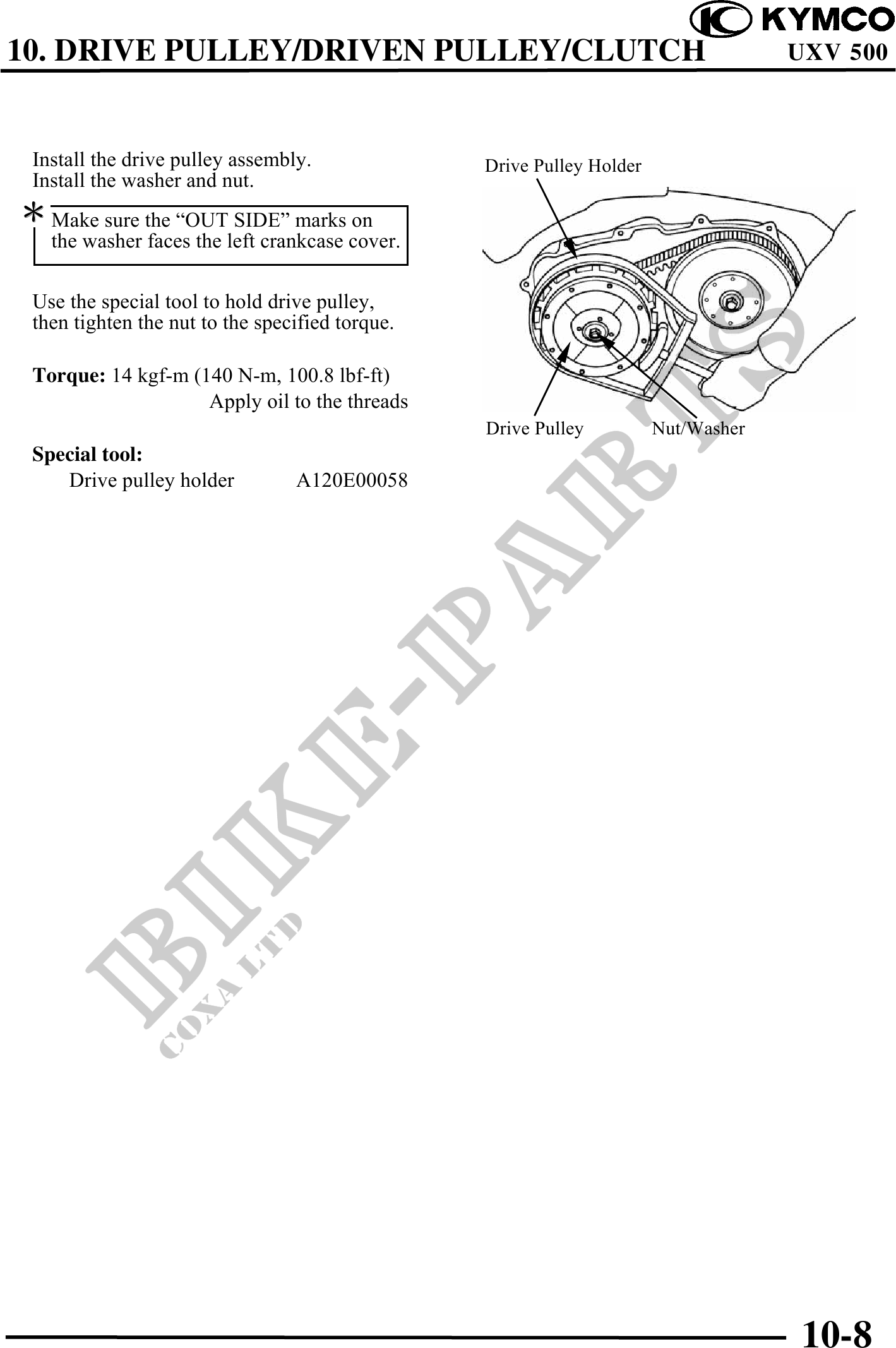

10. DRIVE PULLEY/DRIVEN PULLEY/CLUTCH UXV 500
Install the drive pulley assembly. Drive Pulley Holder
Install the washer and nut.
Make sure the "OUT SIDE" marks on
the washer faces the left crankcase cover.
Use the special tool to hold drive pulley,
then tighten the nut to the specified torque.
Torque: 14 kgf-m (140 N-m, 100.8 lbf-ft)
Apply oil to the threads
Drive Pulley Nut/Washer
Special tool:
Drive pulley holder A120E00058
10-8
