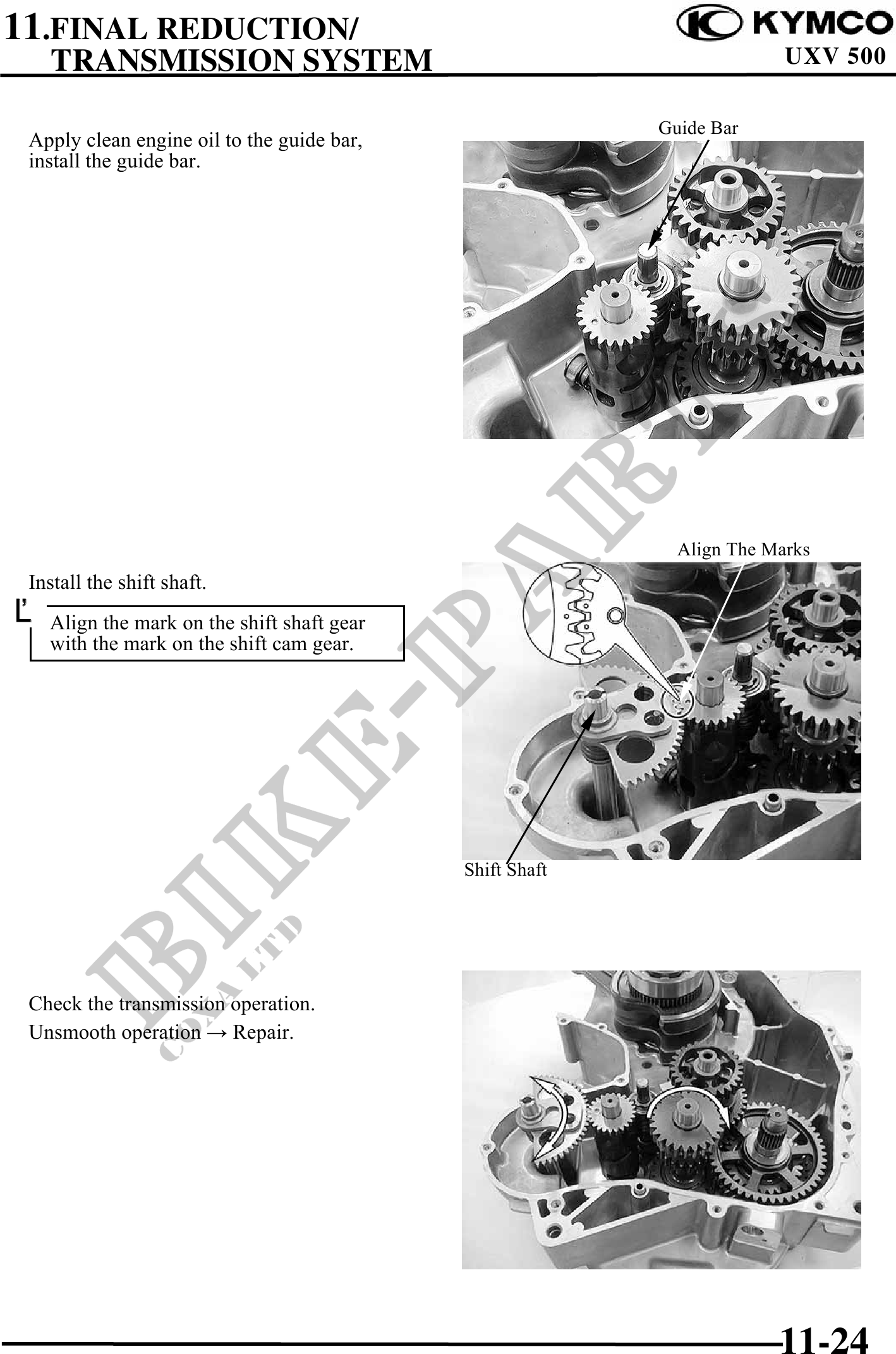

          11.FINAL REDUCTION/
    TRANSMISSION SYSTEM                                                 UXV 500

                                                          Guide Bar
 Apply clean engine oil to the guide bar,
 install the guide bar.




                                                            Align The Marks
 Install the shift shaft.
 Align the mark on the shift shaft gear
   with the mark on the shift cam gear.




                                            Shift Shaft




 Check the transmission operation.
 Unsmooth operation  Repair.




                                                                       11-24
