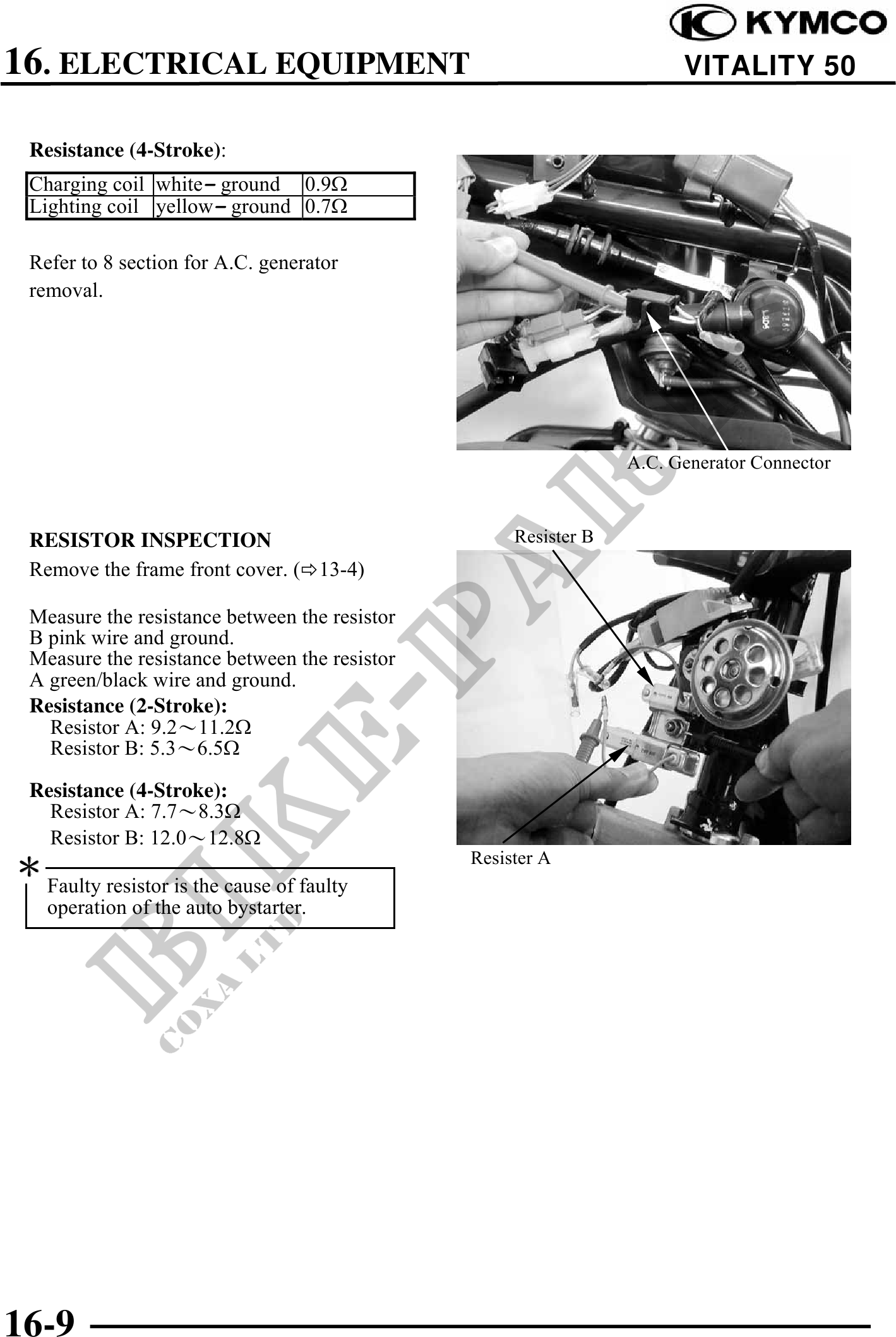

16. ELECTRICAL EQUIPMENT VITALITY 50
Resistance (4-Stroke):
Charging coil white ground 0.9
Lighting coil yellow ground 0.7
Refer to 8 section for A.C. generator
removal.
A.C. Generator Connector
RESISTOR INSPECTION Resister B
Remove the frame front cover. ( 13-4)
Measure the resistance between the resistor
B pink wire and ground.
Measure the resistance between the resistor
A green/black wire and ground.
Resistance (2-Stroke):
Resistor A: 9.211.2
Resistor B: 5.36.5
Resistance (4-Stroke):
Resistor A: 7.78.3
Resistor B: 12.012.8
Resister A
Faulty resistor is the cause of faulty
operation of the auto bystarter.
16-9
