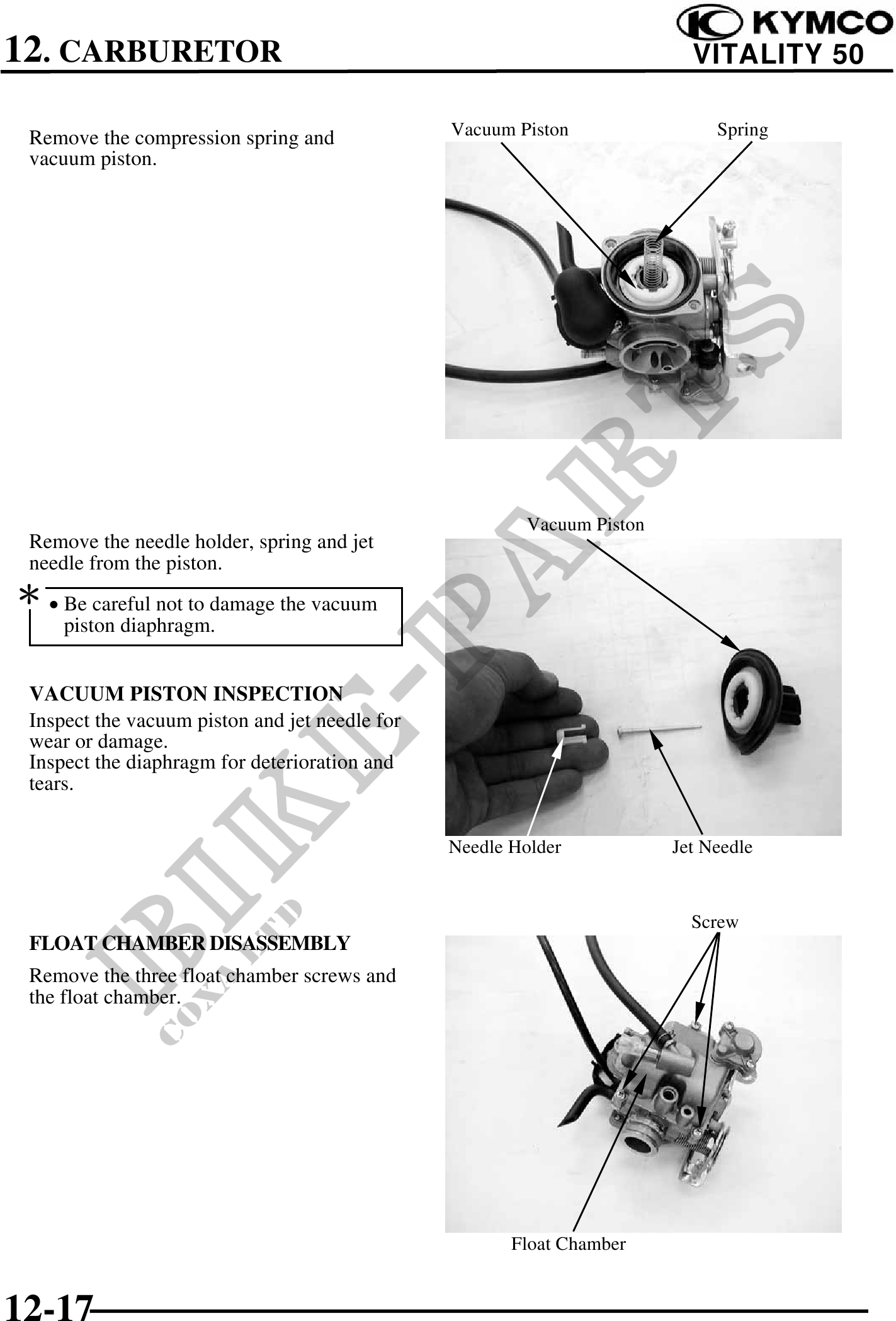

12. CARBURETOR VITALITY 50
Remove the compression spring and Vacuum Piston Spring
vacuum piston.
Vacuum Piston
Remove the needle holder, spring and jet
needle from the piston.
· Be careful not to damage the vacuum
piston diaphragm.
VACUUM PISTON INSPECTION
Inspect the vacuum piston and jet needle for
wear or damage.
Inspect the diaphragm for deterioration and
tears.
Needle Holder Jet Needle
Screw
FLOAT CHAMBER DISASSEMBLY
Remove the three float chamber screws and
the float chamber.
Float Chamber
12-17
