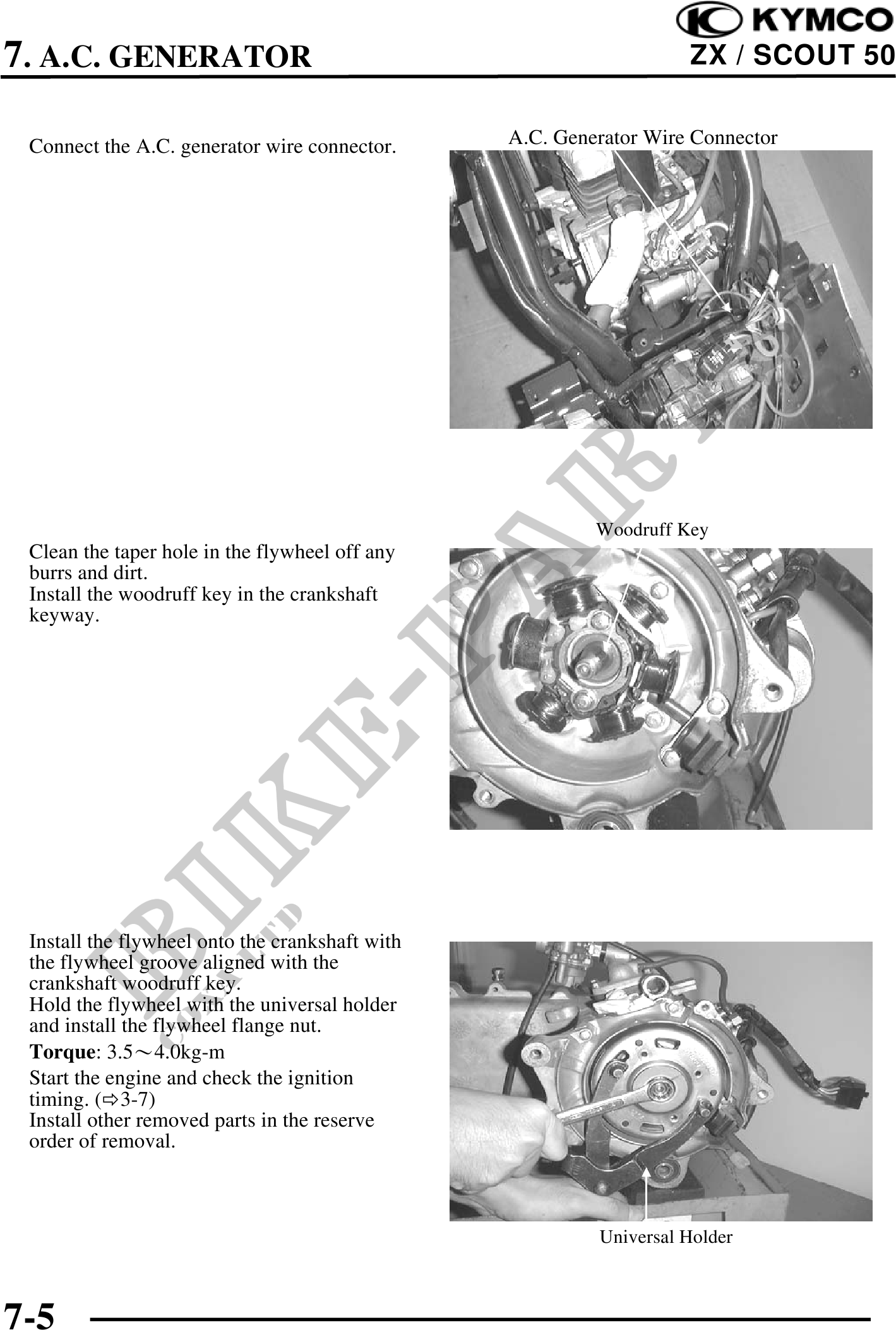

7. A.C. GENERATOR ZX / SCOUT 50
Connect the A.C. generator wire connector. A.C. Generator Wire Connector
Woodruff Key
Clean the taper hole in the flywheel off any
burrs and dirt.
Install the woodruff key in the crankshaft
keyway.
Install the flywheel onto the crankshaft with
the flywheel groove aligned with the
crankshaft woodruff key.
Hold the flywheel with the universal holder
and install the flywheel flange nut.
Torque: 3.54.0kg-m
Start the engine and check the ignition
timing. ( 3-7)
Install other removed parts in the reserve
order of removal.
Universal Holder
7-5
