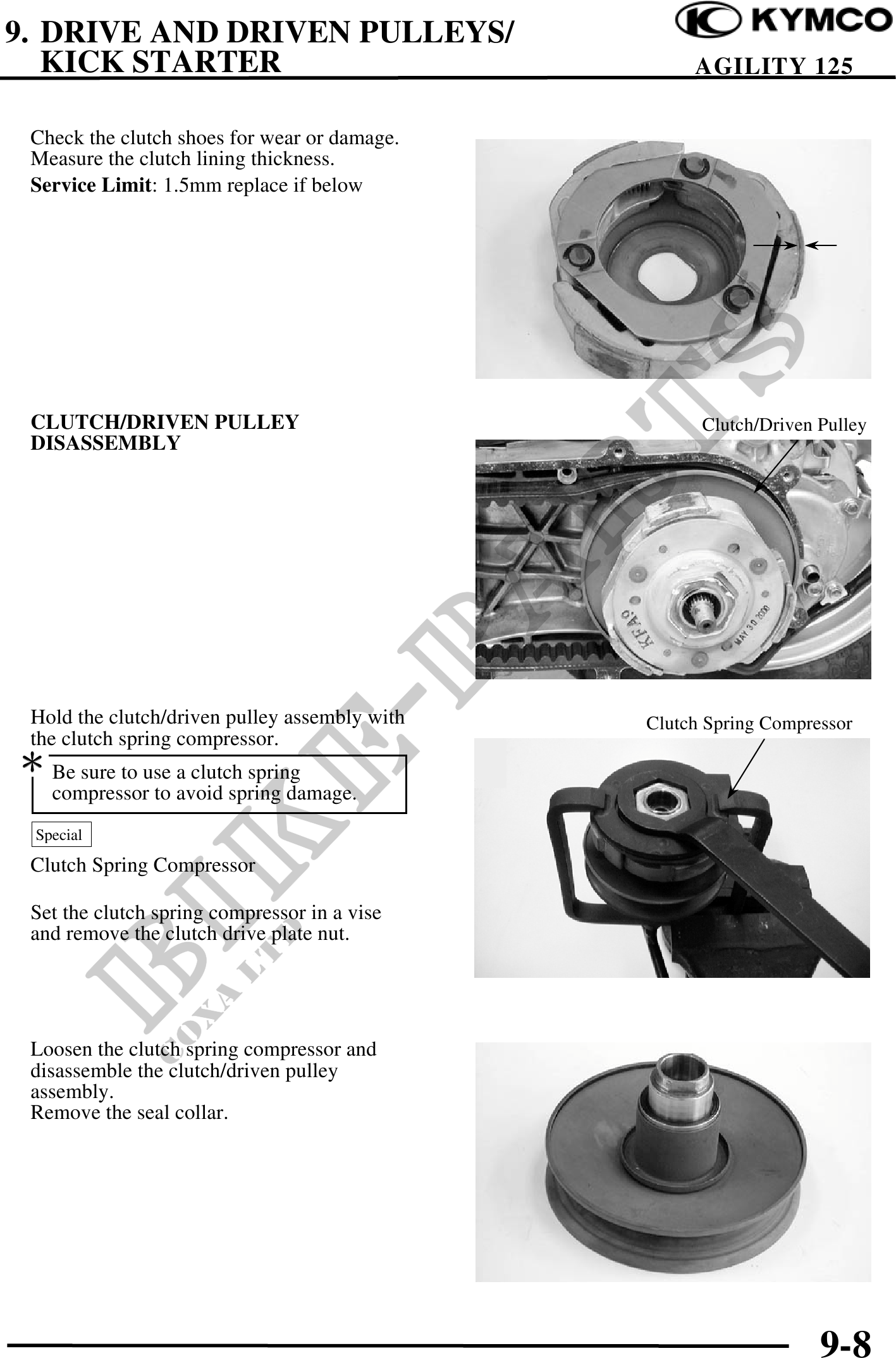

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER AGILITY 125
Check the clutch shoes for wear or damage.
Measure the clutch lining thickness.
Service Limit: 1.5mm replace if below
CLUTCH/DRIVEN PULLEY Clutch/Driven Pulley
DISASSEMBLY
Hold the clutch/driven pulley assembly with Clutch Spring Compressor
the clutch spring compressor.
Be sure to use a clutch spring
compressor to avoid spring damage.
Special
Clutch Spring Compressor
Set the clutch spring compressor in a vise
and remove the clutch drive plate nut.
Loosen the clutch spring compressor and
disassemble the clutch/driven pulley
assembly.
Remove the seal collar.
9-8
