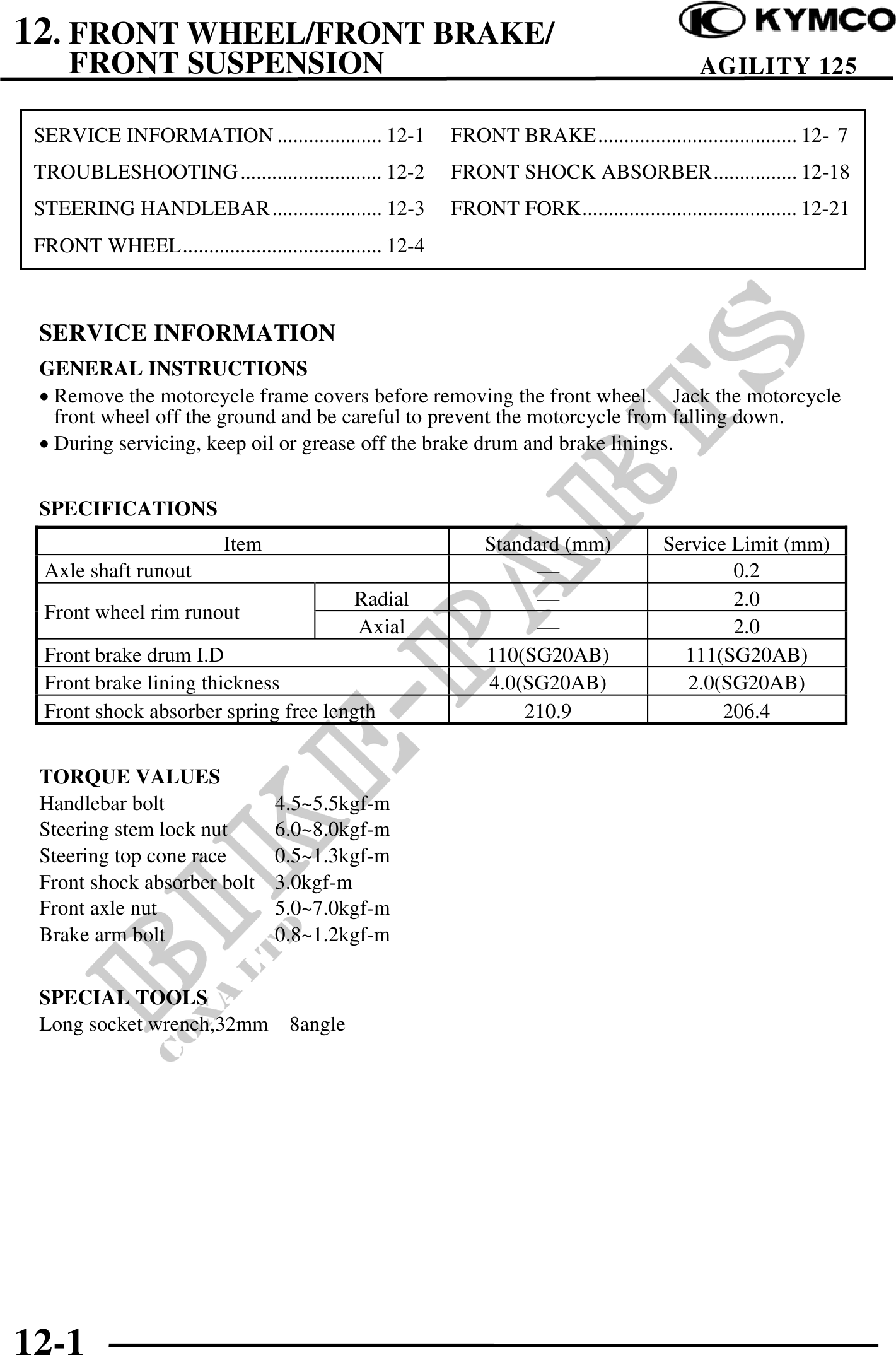

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION AGILITY 125
SERVICE INFORMATION .................... 12-1 FRONT BRAKE...................................... 12- 7
TROUBLESHOOTING ........................... 12-2 FRONT SHOCK ABSORBER................ 12-18
STEERING HANDLEBAR..................... 12-3 FRONT FORK......................................... 12-21
FRONT WHEEL...................................... 12-4
SERVICE INFORMATION
GENERAL INSTRUCTIONS
· Remove the motorcycle frame covers before removing the front wheel. Jack the motorcycle
front wheel off the ground and be careful to prevent the motorcycle from falling down.
· During servicing, keep oil or grease off the brake drum and brake linings.
SPECIFICATIONS
Item Standard (mm) Service Limit (mm)
Axle shaft runout 0.2
Radial 2.0
Front wheel rim runout
Axial 2.0
Front brake drum I.D 110(SG20AB) 111(SG20AB)
Front brake lining thickness 4.0(SG20AB) 2.0(SG20AB)
Front shock absorber spring free length 210.9 206.4
TORQUE VALUES
Handlebar bolt 4.5~5.5kgf-m
Steering stem lock nut 6.0~8.0kgf-m
Steering top cone race 0.5~1.3kgf-m
Front shock absorber bolt 3.0kgf-m
Front axle nut 5.0~7.0kgf-m
Brake arm bolt 0.8~1.2kgf-m
SPECIAL TOOLS
Long socket wrench,32mm 8angle
12-1
