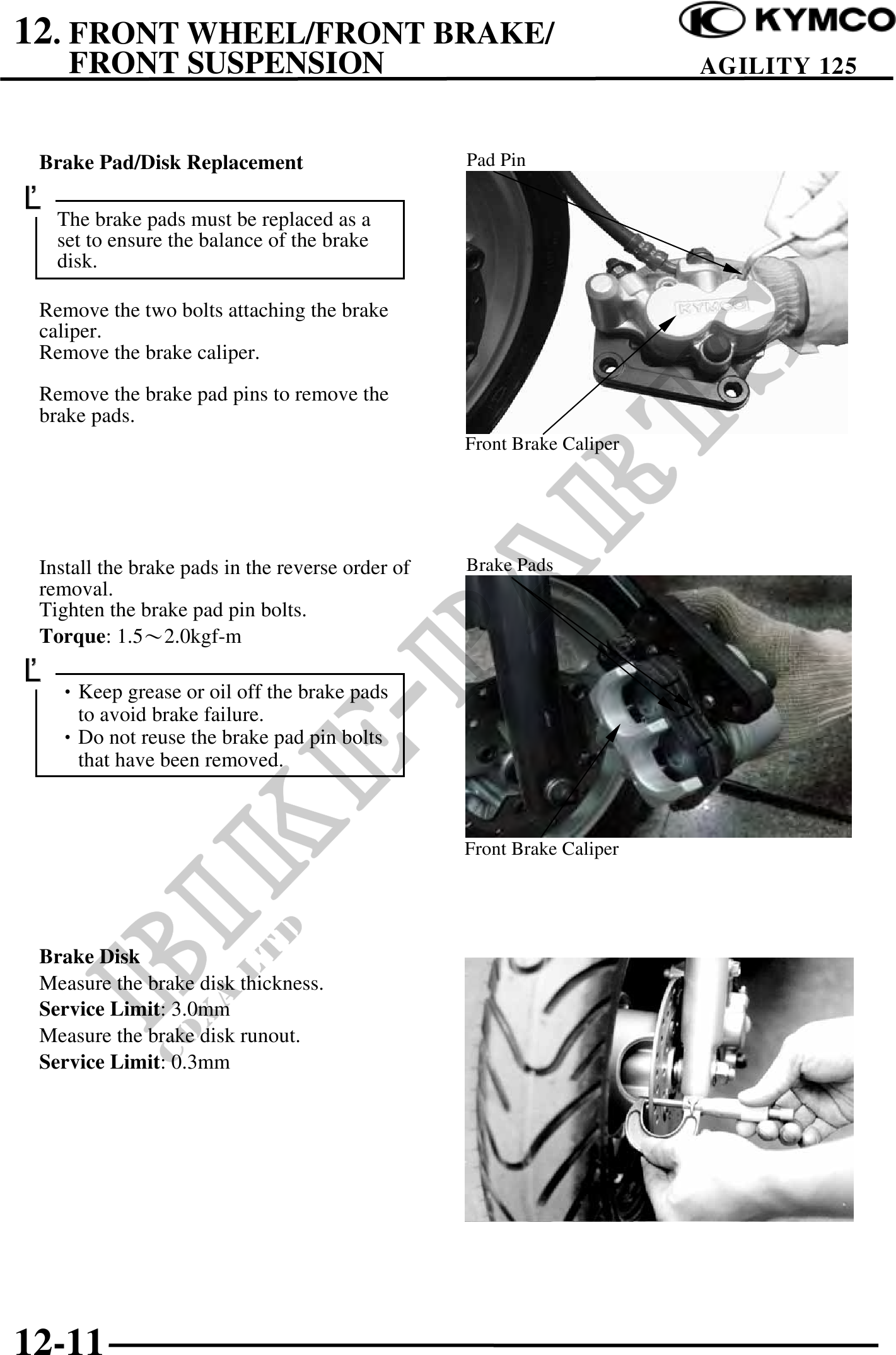

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION AGILITY 125
Brake Pad/Disk Replacement Pad Pin
The brake pads must be replaced as a
set to ensure the balance of the brake
disk.
Remove the two bolts attaching the brake
caliper.
Remove the brake caliper.
Remove the brake pad pins to remove the
brake pads.
Front Brake Caliper
Install the brake pads in the reverse order of Brake Pads
removal.
Tighten the brake pad pin bolts.
Torque: 1.52.0kgf-m
Keep grease or oil off the brake pads
to avoid brake failure.
Do not reuse the brake pad pin bolts
that have been removed.
Front Brake Caliper
Brake Disk
Measure the brake disk thickness.
Service Limit: 3.0mm
Measure the brake disk runout.
Service Limit: 0.3mm
12-11
