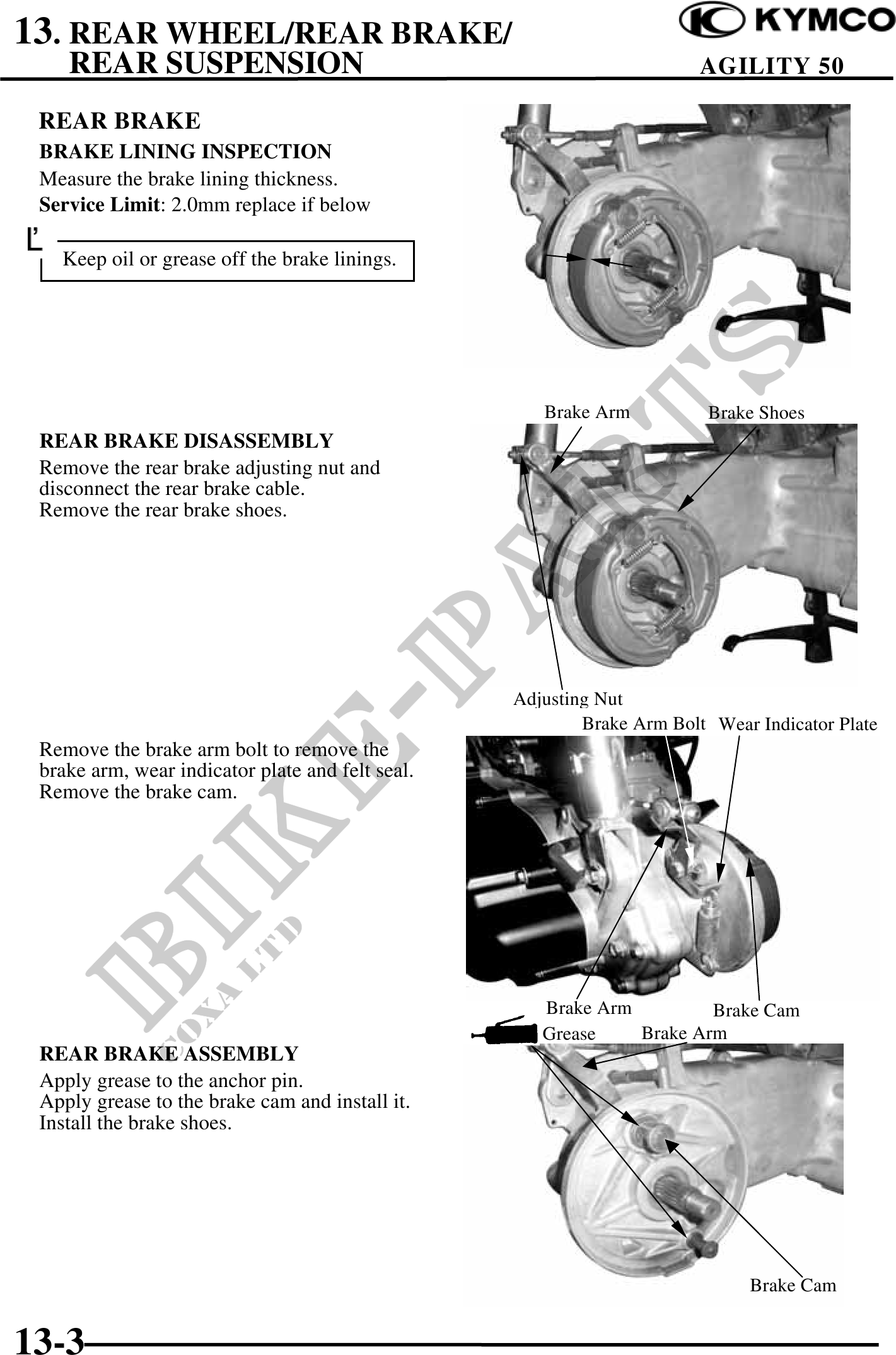

13. REAR WHEEL/REAR BRAKE/
REAR SUSPENSION AGILITY 50
REAR BRAKE
BRAKE LINING INSPECTION
Measure the brake lining thickness.
Service Limit: 2.0mm replace if below
Keep oil or grease off the brake linings.
Brake Arm Brake Shoes
REAR BRAKE DISASSEMBLY
Remove the rear brake adjusting nut and
disconnect the rear brake cable.
Remove the rear brake shoes.
Adjusting Nut
Brake Arm Bolt Wear Indicator Plate
Remove the brake arm bolt to remove the
brake arm, wear indicator plate and felt seal.
Remove the brake cam.
Brake Arm Brake Cam
Grease Brake Arm
REAR BRAKE ASSEMBLY
Apply grease to the anchor pin.
Apply grease to the brake cam and install it.
Install the brake shoes.
Brake Cam
13-3
