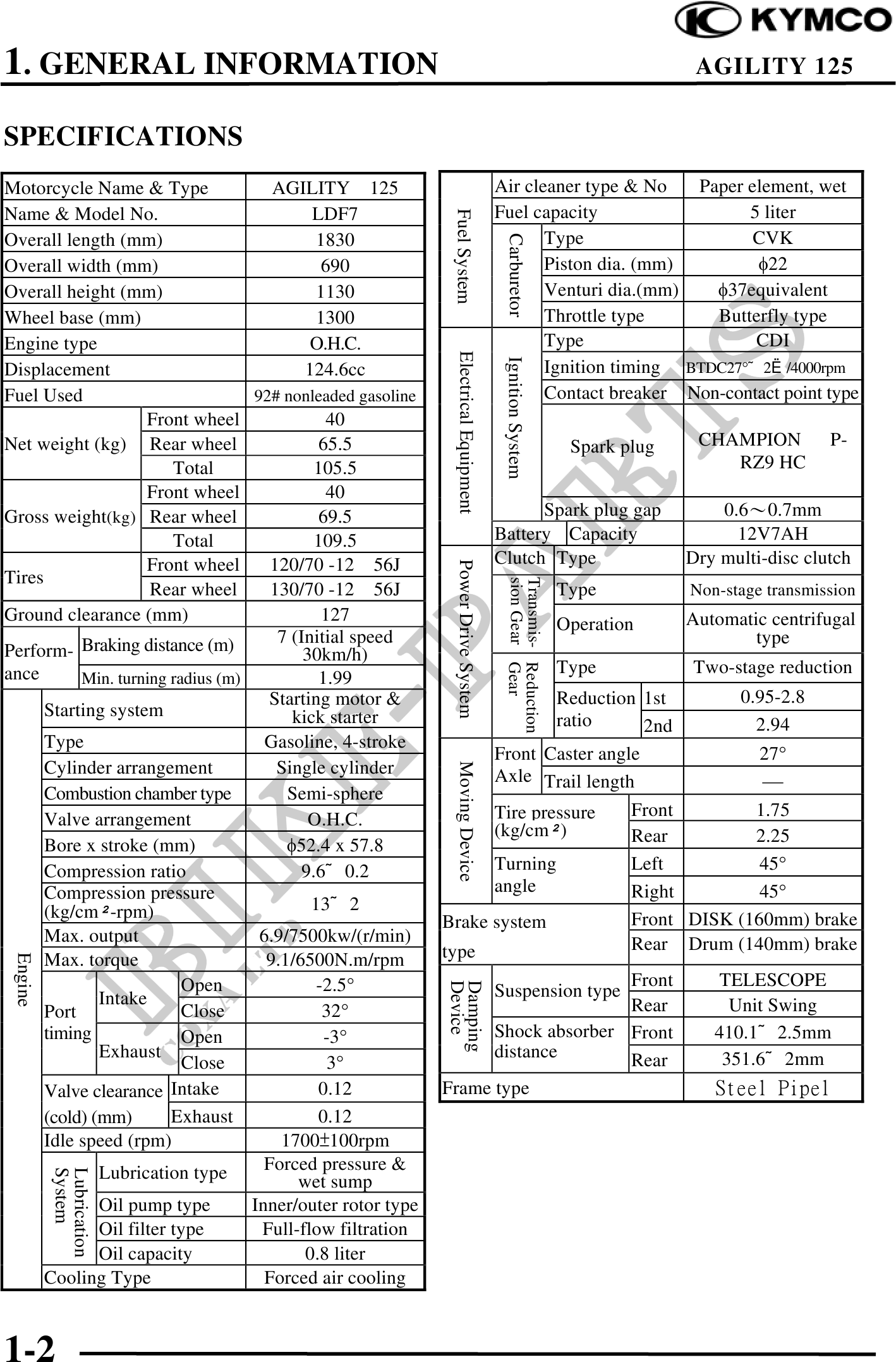

1. GENERAL INFORMATION AGILITY 125
SPECIFICATIONS
Motorcycle Name & Type AGILITY 125 Air cleaner type & No Paper element, wet
Name & Model No. LDF7 Fuel capacity 5 liter
Fuel System
Overall length (mm) 1830 Type CVK
Carburetor
Overall width (mm) 690 Piston dia. (mm) 22
Overall height (mm) 1130 Venturi dia.(mm) 37equivalent
Wheel base (mm) 1300 Throttle type Butterfly type
Engine type O.H.C. Type CDI
Electrical Equipment
Ignition System
Displacement 124.6cc Ignition timing BTDC27°2°/4000rpm
Fuel Used 92# nonleaded gasoline Contact breaker Non-contact point type
Front wheel 40
Net weight (kg) Rear wheel 65.5 Spark plug CHAMPION P-
Total 105.5 RZ9 HC
Front wheel 40
Gross weight(kg) Rear wheel 69.5 Spark plug gap 0.60.7mm
Total 109.5 Battery Capacity 12V7AH
Front wheel 120/70 -12 56J Clutch Type Dry multi-disc clutch
Power Drive System
Tires
sion Gear Gear
Transmis- Reduction
Rear wheel 130/70 -12 56J Type Non-stage transmission
Ground clearance (mm) 127 Operation Automatic centrifugal
7 (Initial speed type
Perform- Braking distance (m) 30km/h)
ance Type Two-stage reduction
Min. turning radius (m) 1.99
Starting motor & Reduction 1st 0.95-2.8
Starting system kick starter ratio 2nd 2.94
Type Gasoline, 4-stroke
Front Caster angle 27°
Cylinder arrangement Single cylinder
Moving Device
Axle Trail length
Combustion chamber type Semi-sphere
Valve arrangement O.H.C. Tire pressure Front 1.75
(kg/cm) Rear 2.25
Bore x stroke (mm) 52.4 x 57.8
Compression ratio 9.60.2 Turning Left 45°
Compression pressure angle Right 45°
(kg/cm-rpm) 132
Brake system Front DISK (160mm) brake
Max. output 6.9/7500kw/(r/min) Rear Drum (140mm) brake
type
Engine
Max. torque 9.1/6500N.m/rpm
Open -2.5° Front TELESCOPE
Device
Damping
Intake Suspension type
Port Close 32° Rear Unit Swing
timing Open -3° Shock absorber Front 410.12.5mm
Exhaust distance Rear 351.62mm
Close 3°
Valve clearance Intake 0.12 Frame type Steel Pipel
(cold) (mm) Exhaust 0.12
Idle speed (rpm) 1700100rpm
Lubrication type Forced pressure &
System
Lubrication
wet sump
Oil pump type Inner/outer rotor type
Oil filter type Full-flow filtration
Oil capacity 0.8 liter
Cooling Type Forced air cooling
1-2
