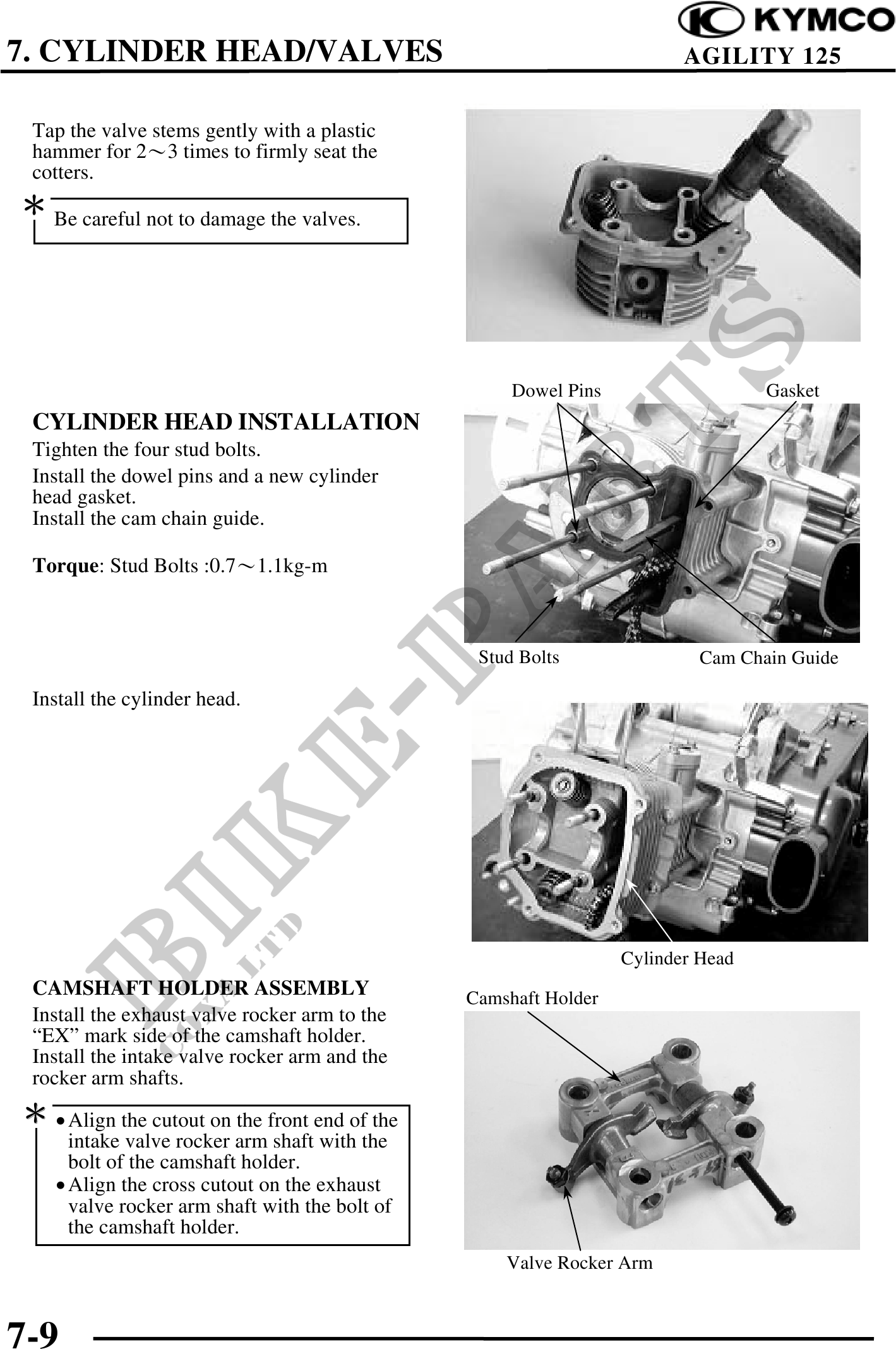

7. CYLINDER HEAD/VALVES AGILITY 125
Tap the valve stems gently with a plastic
hammer for 23 times to firmly seat the
cotters.
Be careful not to damage the valves.
Dowel Pins Gasket
CYLINDER HEAD INSTALLATION
Tighten the four stud bolts.
Install the dowel pins and a new cylinder
head gasket.
Install the cam chain guide.
Torque: Stud Bolts :0.71.1kg-m
Stud Bolts Cam Chain Guide
Install the cylinder head.
Cylinder Head
CAMSHAFT HOLDER ASSEMBLY Camshaft Holder
Install the exhaust valve rocker arm to the
"EX" mark side of the camshaft holder.
Install the intake valve rocker arm and the
rocker arm shafts.
· Align the cutout on the front end of the
intake valve rocker arm shaft with the
bolt of the camshaft holder.
· Align the cross cutout on the exhaust
valve rocker arm shaft with the bolt of
the camshaft holder.
Valve Rocker Arm
7-9
