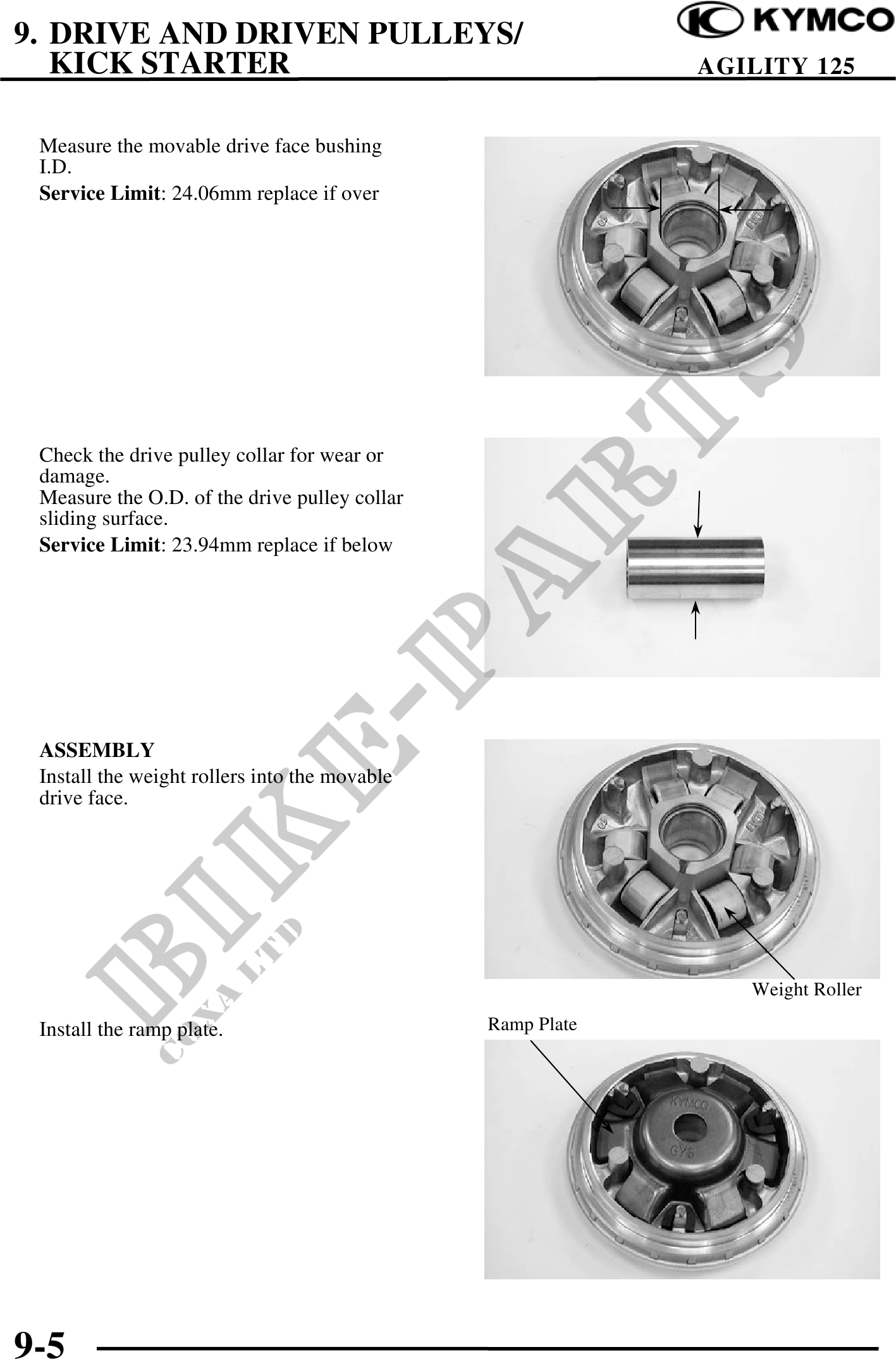

9. DRIVE AND DRIVEN PULLEYS/
KICK STARTER AGILITY 125
Measure the movable drive face bushing
I.D.
Service Limit: 24.06mm replace if over
Check the drive pulley collar for wear or
damage.
Measure the O.D. of the drive pulley collar
sliding surface.
Service Limit: 23.94mm replace if below
ASSEMBLY
Install the weight rollers into the movable
drive face.
Weight Roller
Install the ramp plate. Ramp Plate
9-5
