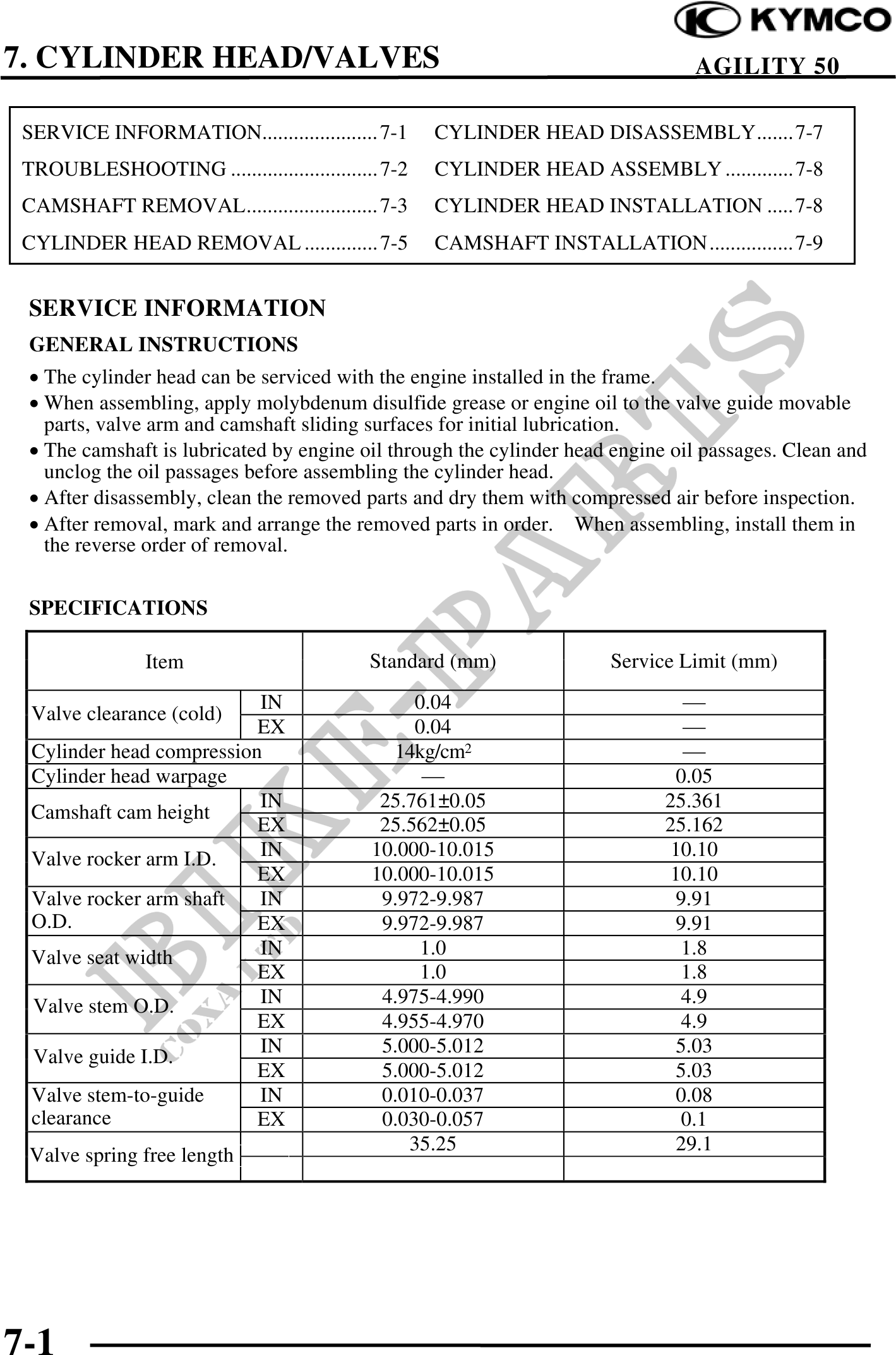

          7. CYLINDER HEAD/VALVES                                                        AGILITY 50

 SERVICE INFORMATION...................... 7-1      CYLINDER HEAD DISASSEMBLY.......7-7
 TROUBLESHOOTING ............................ 7-2   CYLINDER HEAD ASSEMBLY .............7-8
 CAMSHAFT REMOVAL......................... 7-3      CYLINDER HEAD INSTALLATION .....7-8
 CYLINDER HEAD REMOVAL .............. 7-5           CAMSHAFT INSTALLATION................7-9


 SERVICE INFORMATION
 GENERAL INSTRUCTIONS
 · The cylinder head can be serviced with the engine installed in the frame.
 · When assembling, apply molybdenum disulfide grease or engine oil to the valve guide movable
   parts, valve arm and camshaft sliding surfaces for initial lubrication.
 · The camshaft is lubricated by engine oil through the cylinder head engine oil passages. Clean and
   unclog the oil passages before assembling the cylinder head.
 · After disassembly, clean the removed parts and dry them with compressed air before inspection.
 · After removal, mark and arrange the removed parts in order. When assembling, install them in
   the reverse order of removal.


 SPECIFICATIONS

                Item                        Standard (mm)             Service Limit (mm)
                           IN                    0.04
  Valve clearance (cold)
                           EX                    0.04
  Cylinder head compression                   14kg/cm2
  Cylinder head warpage                                                      0.05
                           IN                25.7610.05                     25.361
  Camshaft cam height
                           EX                25.5620.05                     25.162
  Valve rocker arm I.D.    IN               10.000-10.015                   10.10
                           EX               10.000-10.015                   10.10
  Valve rocker arm shaft   IN                9.972-9.987                     9.91
  O.D.                     EX                9.972-9.987                     9.91
  Valve seat width         IN                    1.0                          1.8
                           EX                     1.0                         1.8
  Valve stem O.D.          IN                4.975-4.990                      4.9
                           EX                4.955-4.970                      4.9
                           IN                5.000-5.012                     5.03
  Valve guide I.D.
                           EX                5.000-5.012                     5.03
  Valve stem-to-guide      IN                0.010-0.037                     0.08
  clearance                EX                0.030-0.057                      0.1
                                                35.25                        29.1
 Valve spring free length




7-1
