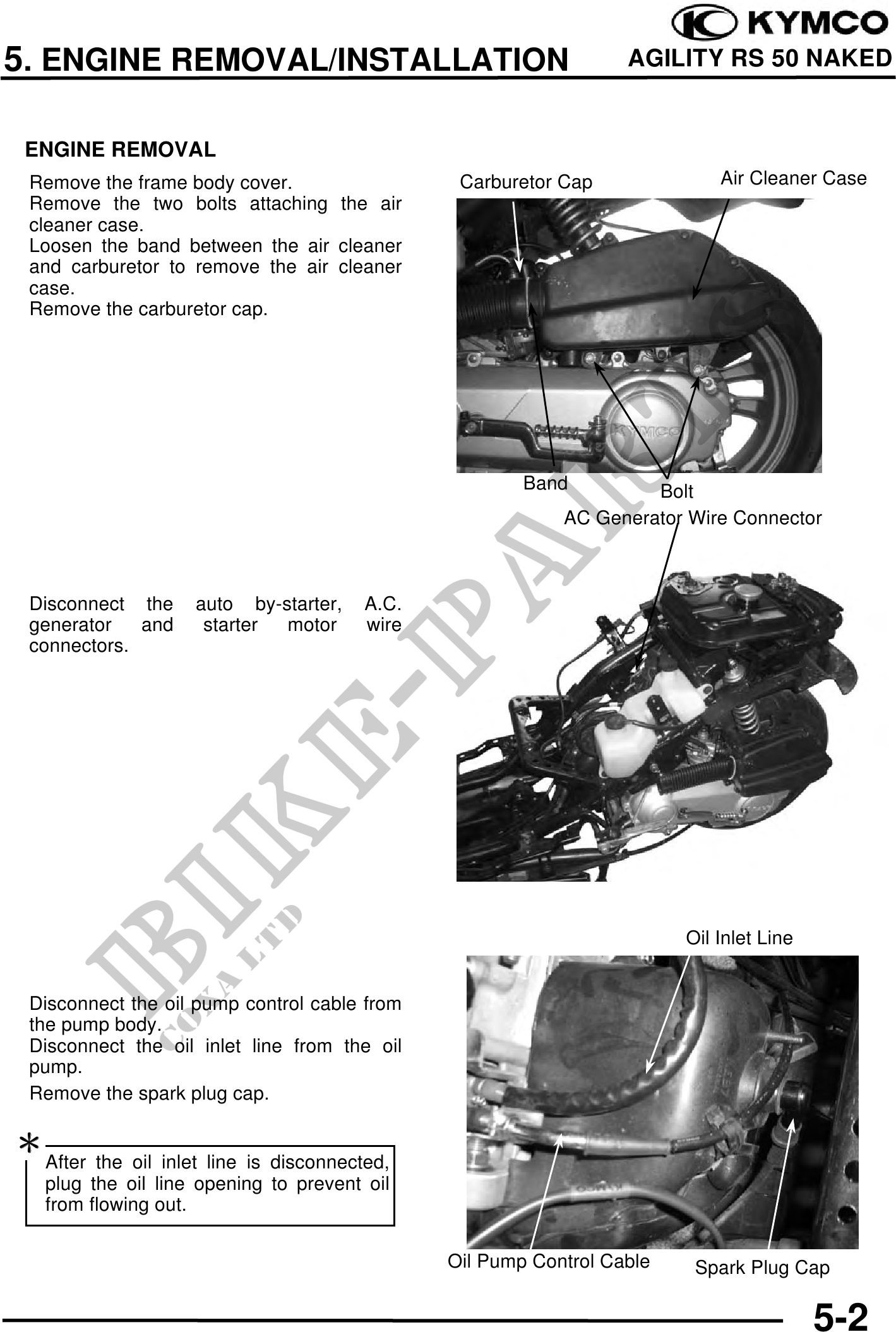

5. ENGINE REMOVAL/INSTALLATION AGILITY RS 50 NAKED
ENGINE REMOVAL
Remove the frame body cover. Carburetor Cap Air Cleaner Case
Remove the two bolts attaching the air
cleaner case.
Loosen the band between the air cleaner
and carburetor to remove the air cleaner
case.
Remove the carburetor cap.
Band Bolt
AC Generator Wire Connector
Disconnect the auto by-starter, A.C.
generator and starter motor wire
connectors.
Oil Inlet Line
Disconnect the oil pump control cable from
the pump body.
Disconnect the oil inlet line from the oil
pump.
Remove the spark plug cap.
After the oil inlet line is disconnected,
plug the oil line opening to prevent oil
from flowing out.
Oil Pump Control Cable Spark Plug Cap
5-2
