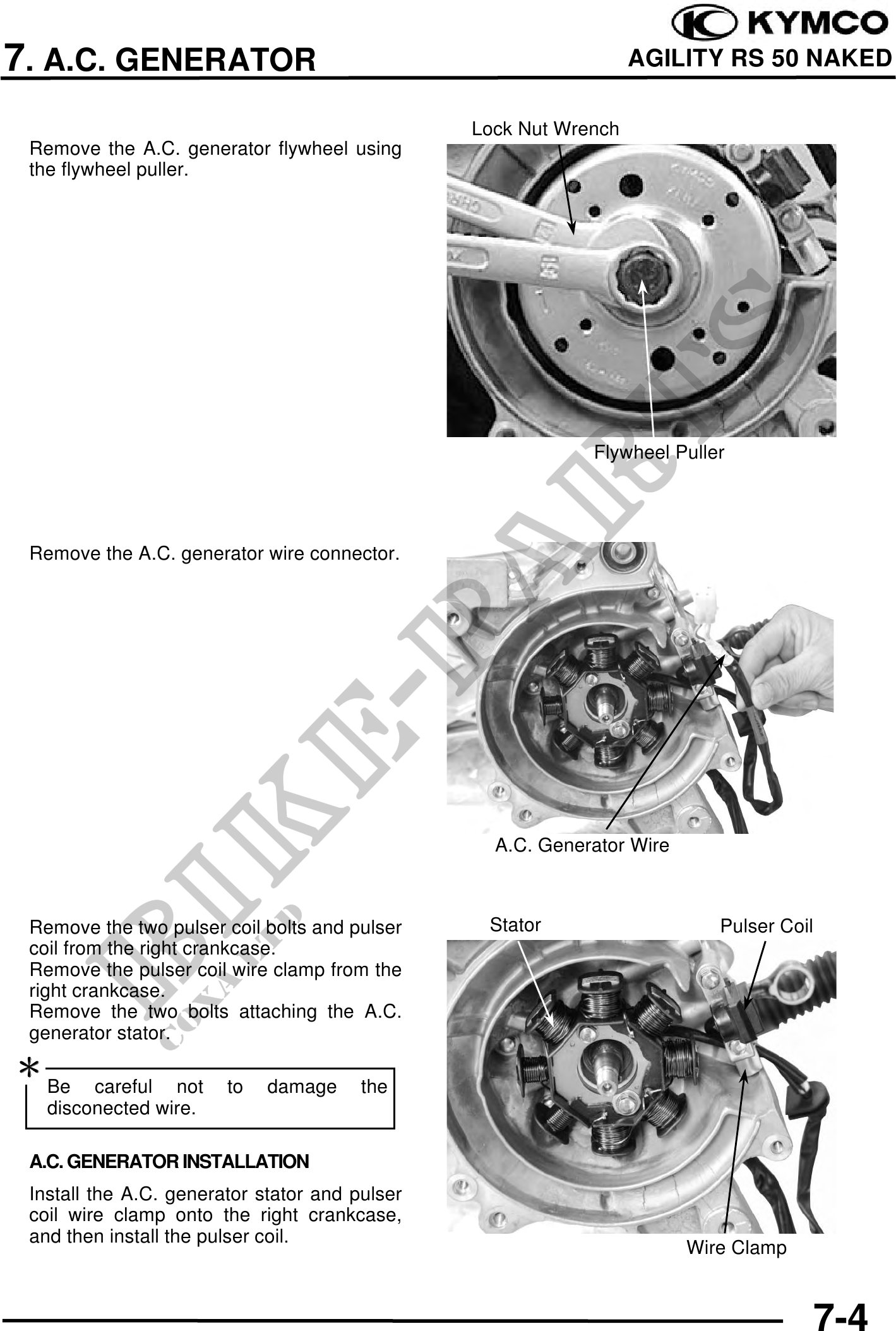

7. A.C. GENERATOR AGILITY RS 50 NAKED
Lock Nut Wrench
Remove the A.C. generator flywheel using
the flywheel puller.
Flywheel Puller
Remove the A.C. generator wire connector.
A.C. Generator Wire
Remove the two pulser coil bolts and pulser Stator Pulser Coil
coil from the right crankcase.
Remove the pulser coil wire clamp from the
right crankcase.
Remove the two bolts attaching the A.C.
generator stator.
Be careful not to damage the
disconected wire.
A.C. GENERATOR INSTALLATION
Install the A.C. generator stator and pulser
coil wire clamp onto the right crankcase,
and then install the pulser coil.
Wire Clamp
7-4
