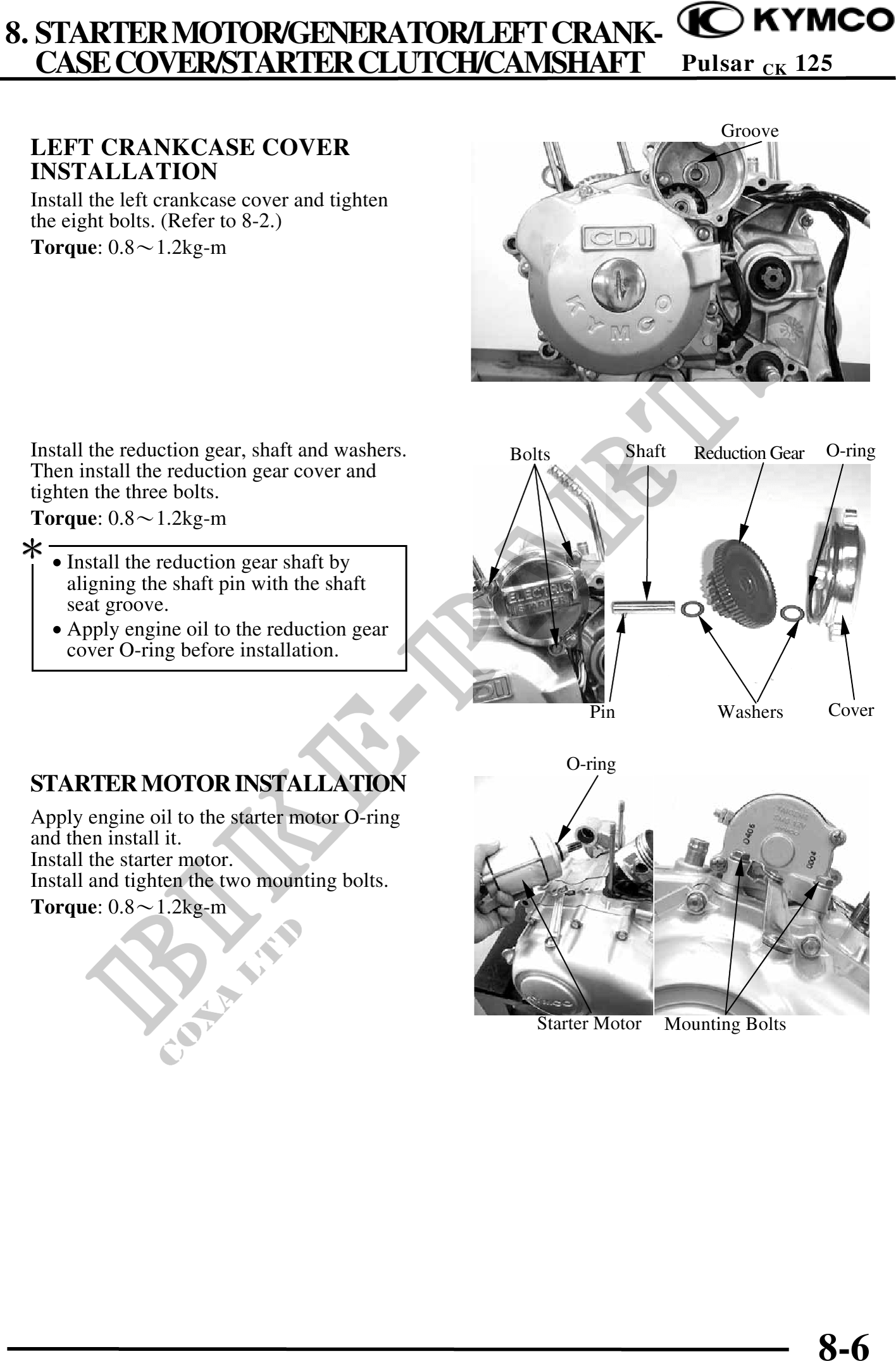

          8. STARTER MOTOR/GENERATOR/LEFT CRANK-
   CASE COVER/STARTER CLUTCH/CAMSHAFT                                      Pulsar   CK   125

                                                                              Groove
 LEFT CRANKCASE COVER
 INSTALLATION
 Install the left crankcase cover and tighten
 the eight bolts. (Refer to 8-2.)
 Torque: 0.81.2kg-m




 Install the reduction gear, shaft and washers.   Bolts            Shaft   Reduction Gear   O-ring
 Then install the reduction gear cover and
 tighten the three bolts.
 Torque: 0.81.2kg-m
 · Install the reduction gear shaft by
      aligning the shaft pin with the shaft
      seat groove.
    · Apply engine oil to the reduction gear
      cover O-ring before installation.

                                                            Pin              Washers        Cover

                                                          O-ring
 STARTER MOTOR INSTALLATION
 Apply engine oil to the starter motor O-ring
 and then install it.
 Install the starter motor.
 Install and tighten the two mounting bolts.
 Torque: 0.81.2kg-m




                                                     Starter Motor     Mounting Bolts
