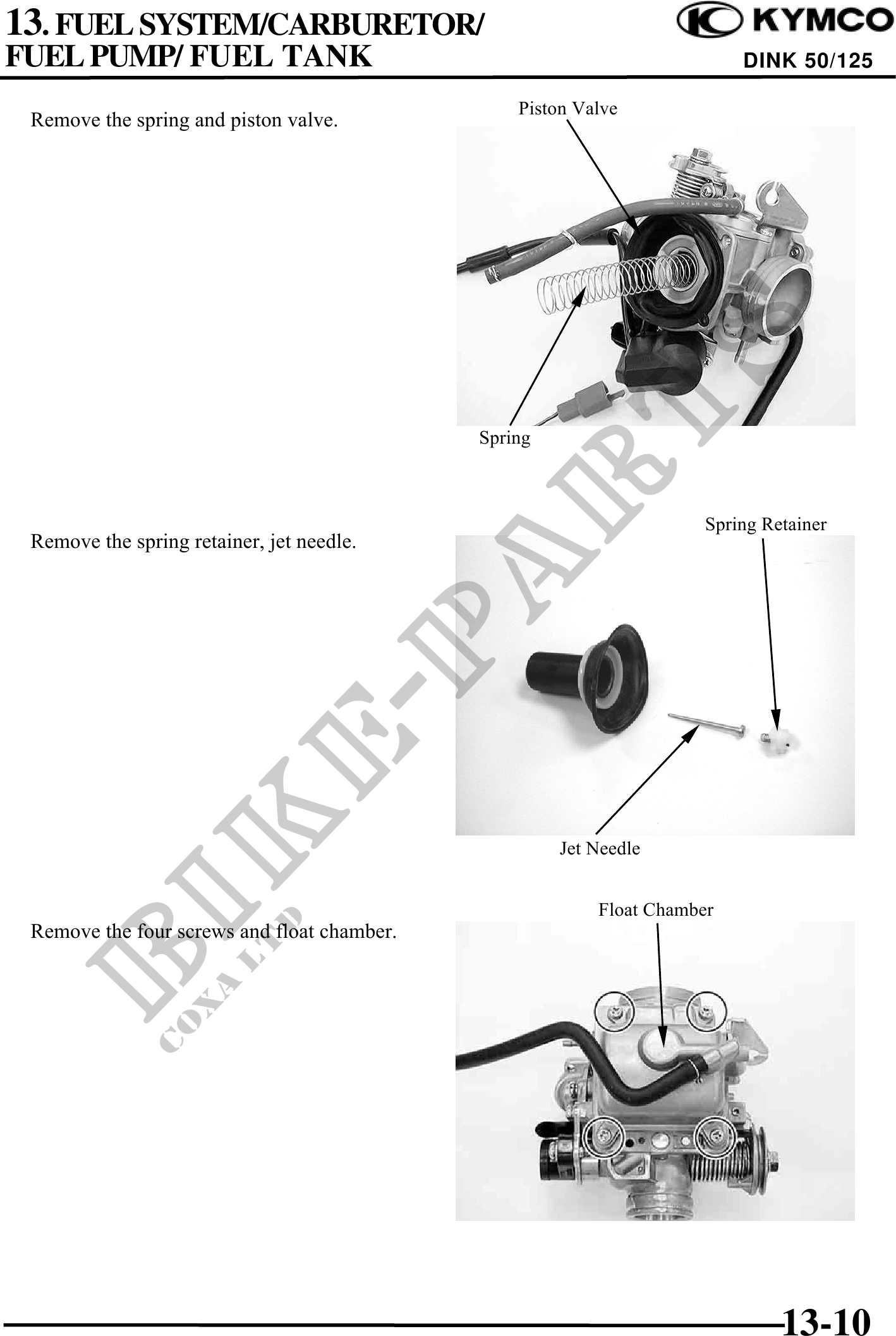

          13. FUEL SYSTEM/CARBURETOR/
FUEL PUMP/ FUEL TANK                                                      DINK 50/125

                                                 Piston Valve
 Remove the spring and piston valve.




                                             Spring



                                                                      Spring Retainer
 Remove the spring retainer, jet needle.




                                                      Jet Needle


                                                          Float Chamber
 Remove the four screws and float chamber.




                                                                               13-10
