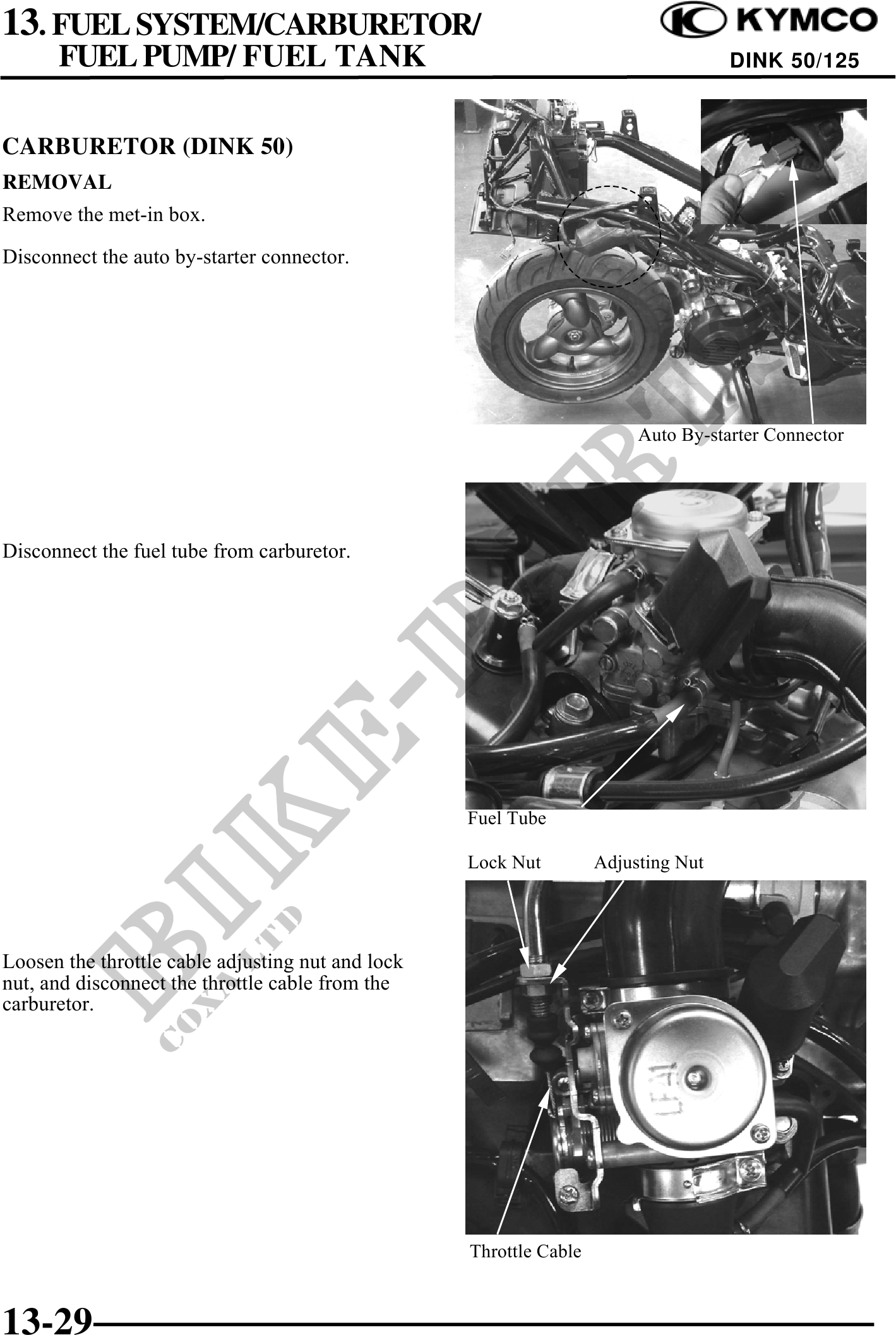

          13. FUEL SYSTEM/CARBURETOR/
      FUEL PUMP/ FUEL TANK                                                          DINK 50/125



CARBURETOR (DINK 50)
REMOVAL
Remove the met-in box.

Disconnect the auto by-starter connector.




                                                                         Auto By-starter Connector




Disconnect the fuel tube from carburetor.




                                                   Fuel Tube

                                                   Lock Nut         Adjusting Nut




Loosen the throttle cable adjusting nut and lock
nut, and disconnect the throttle cable from the
carburetor.




                                                   Throttle Cable
