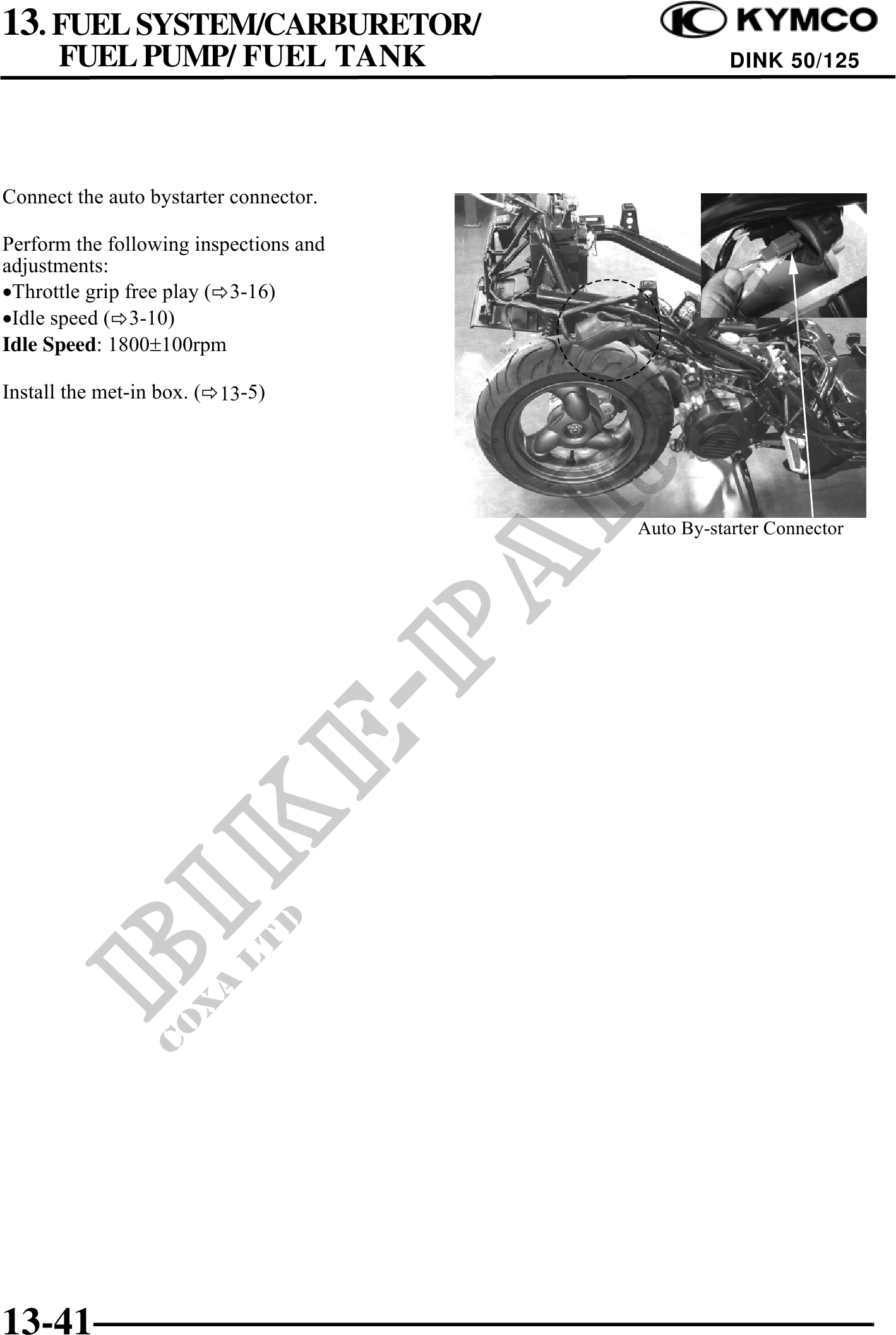

          13. FUEL SYSTEM/CARBURETOR/
      FUEL PUMP/ FUEL TANK                         DINK 50/125




Connect the auto bystarter connector.

Perform the following inspections and
adjustments:
·Throttle grip free play ( 3-16)
·Idle speed ( 3-10)
Idle Speed: 1800100rpm

Install the met-in box. ( 13-5)




                                        Auto By-starter Connector




13-41
