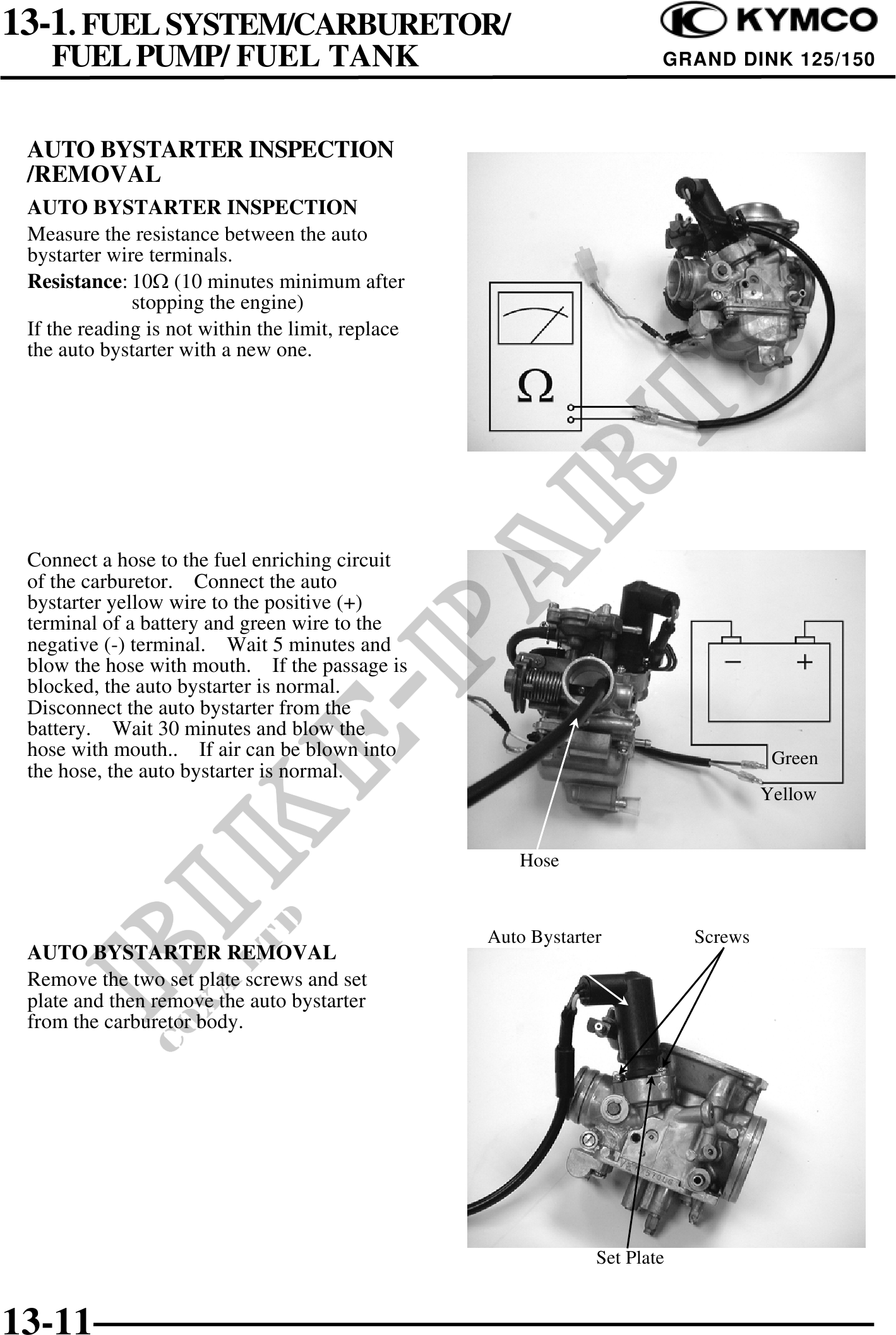

13-1. FUEL SYSTEM/CARBURETOR/
FUEL PUMP/ FUEL TANK GRAND DINK 125/150
AUTO BYSTARTER INSPECTION
/REMOVAL
AUTO BYSTARTER INSPECTION
Measure the resistance between the auto
bystarter wire terminals.
Resistance: 10 (10 minutes minimum after
stopping the engine)
If the reading is not within the limit, replace
the auto bystarter with a new one.
Connect a hose to the fuel enriching circuit
of the carburetor. Connect the auto
bystarter yellow wire to the positive (+)
terminal of a battery and green wire to the
negative (-) terminal. Wait 5 minutes and
blow the hose with mouth. If the passage is
blocked, the auto bystarter is normal.
Disconnect the auto bystarter from the
battery. Wait 30 minutes and blow the
hose with mouth.. If air can be blown into Green
the hose, the auto bystarter is normal.
Yellow
Hose
Auto Bystarter Screws
AUTO BYSTARTER REMOVAL
Remove the two set plate screws and set
plate and then remove the auto bystarter
from the carburetor body.
Set Plate
13-11
