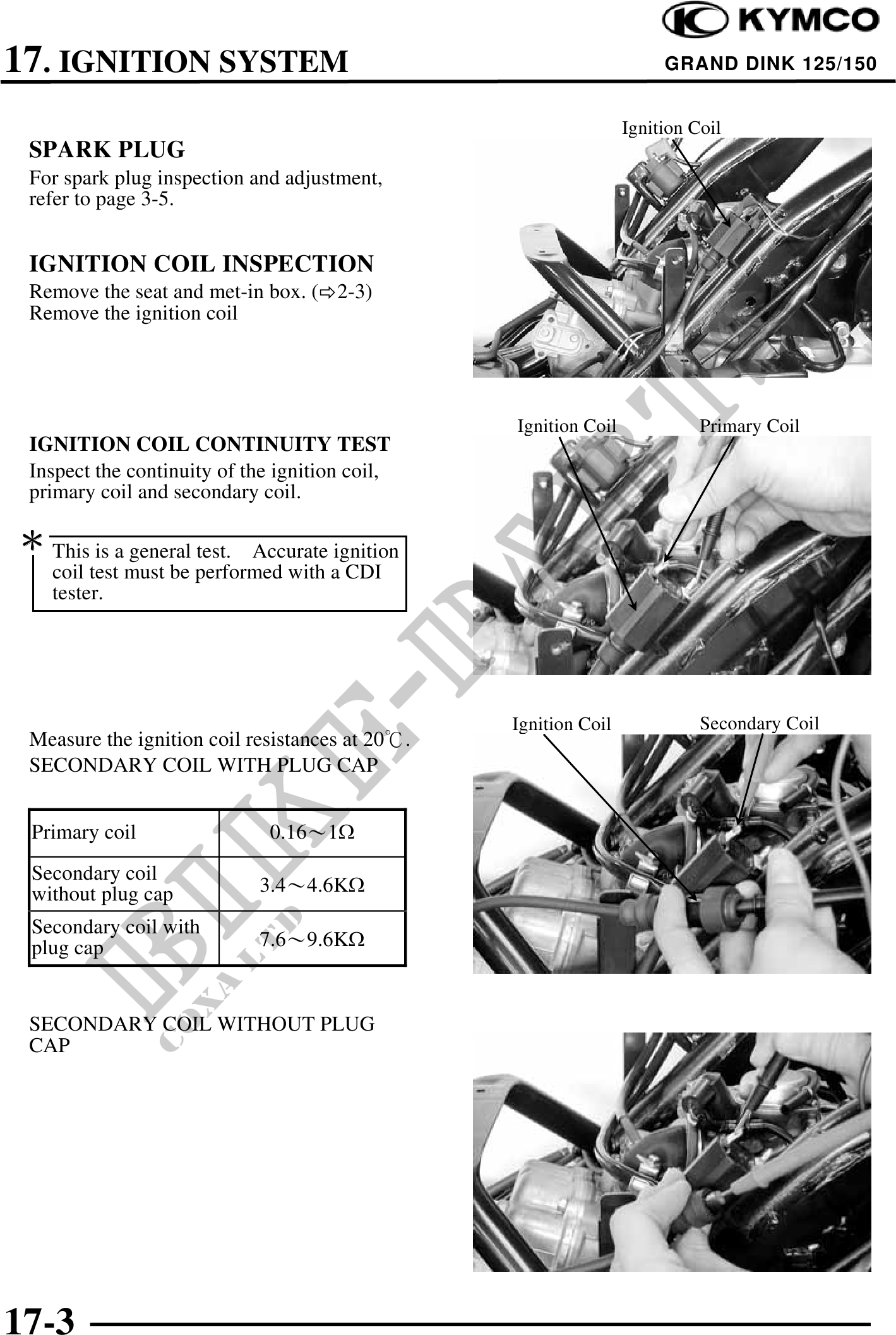

17. IGNITION SYSTEM GRAND DINK 125/150
Ignition Coil
SPARK PLUG
For spark plug inspection and adjustment,
refer to page 3-5.
IGNITION COIL INSPECTION
Remove the seat and met-in box. ( 2-3)
Remove the ignition coil
Ignition Coil Primary Coil
IGNITION COIL CONTINUITY TEST
Inspect the continuity of the ignition coil,
primary coil and secondary coil.
This is a general test. Accurate ignition
coil test must be performed with a CDI
tester.
Ignition Coil Secondary Coil
Measure the ignition coil resistances at 20.
SECONDARY COIL WITH PLUG CAP
Primary coil 0.161
Secondary coil
without plug cap 3.44.6K
Secondary coil with
plug cap 7.69.6K
SECONDARY COIL WITHOUT PLUG
CAP
17-3
