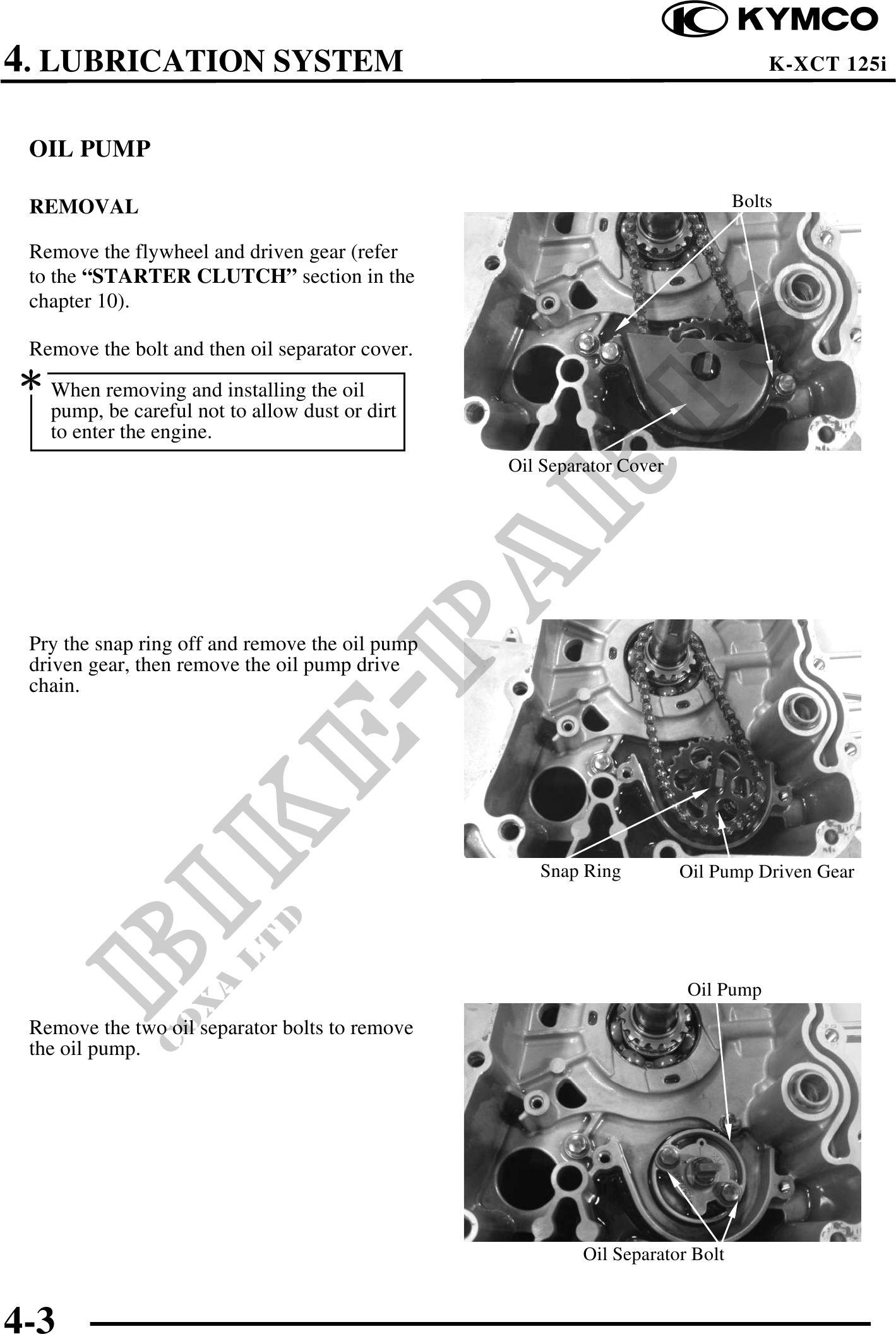

4. LUBRICATION SYSTEM K-XCT 125i
OIL PUMP
REMOVAL Bolts
Remove the flywheel and driven gear (refer
to the "STARTER CLUTCH" section in the
chapter 10).
Remove the bolt and then oil separator cover.
When removing and installing the oil
pump, be careful not to allow dust or dirt
to enter the engine.
Oil Separator Cover
Pry the snap ring off and remove the oil pump
driven gear, then remove the oil pump drive
chain.
Snap Ring Oil Pump Driven Gear
Oil Pump
Remove the two oil separator bolts to remove
the oil pump.
Oil Separator Bolt
4-3
