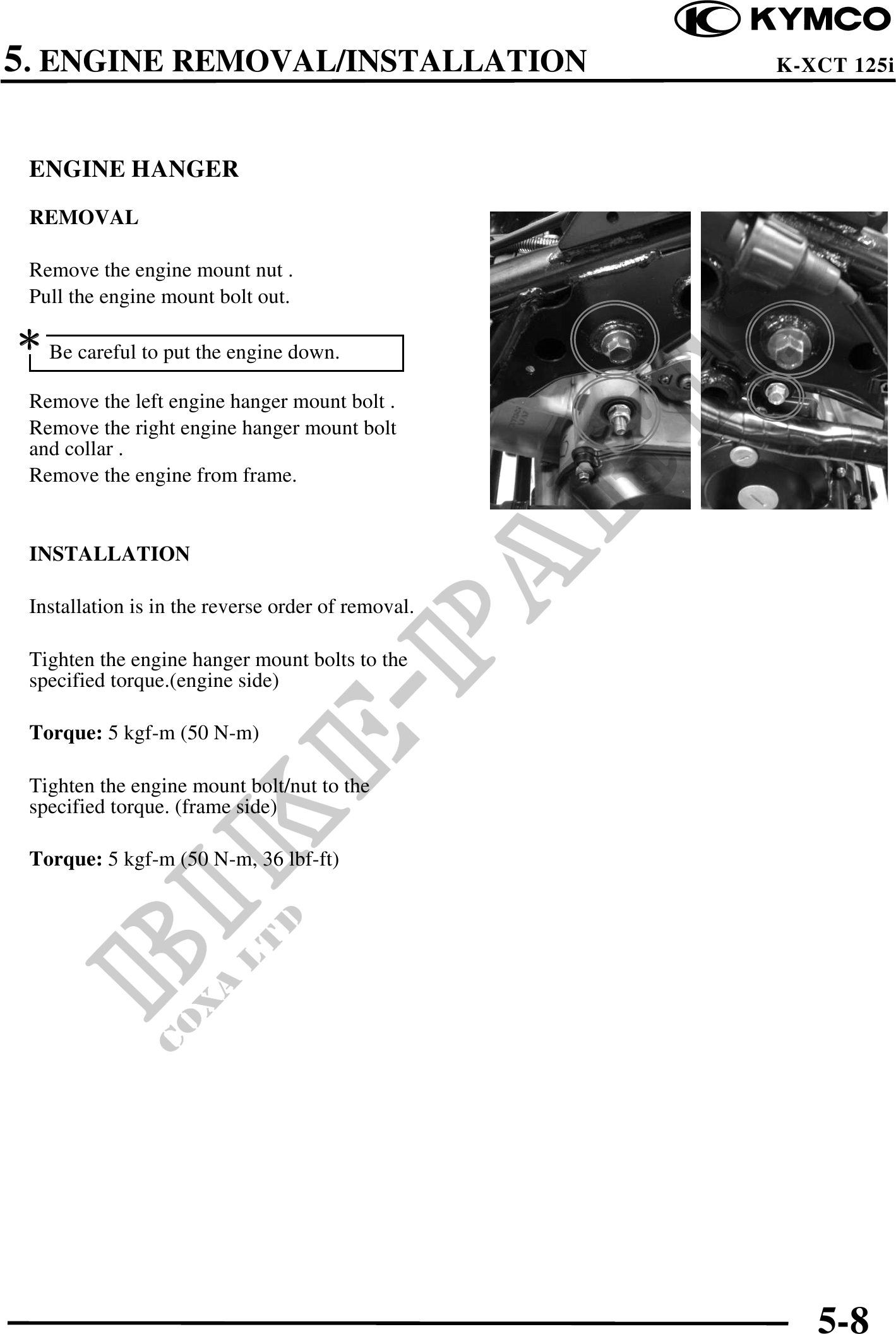

5. ENGINE REMOVAL/INSTALLATION K-XCT 125i
ENGINE HANGER
REMOVAL
Remove the engine mount nut .
Pull the engine mount bolt out.
Be careful to put the engine down.
Remove the left engine hanger mount bolt .
Remove the right engine hanger mount bolt
and collar .
Remove the engine from frame.
INSTALLATION
Installation is in the reverse order of removal.
Tighten the engine hanger mount bolts to the
specified torque.(engine side)
Torque: 5 kgf-m (50 N-m)
Tighten the engine mount bolt/nut to the
specified torque. (frame side)
Torque: 5 kgf-m (50 N-m, 36 lbf-ft)
5-8
