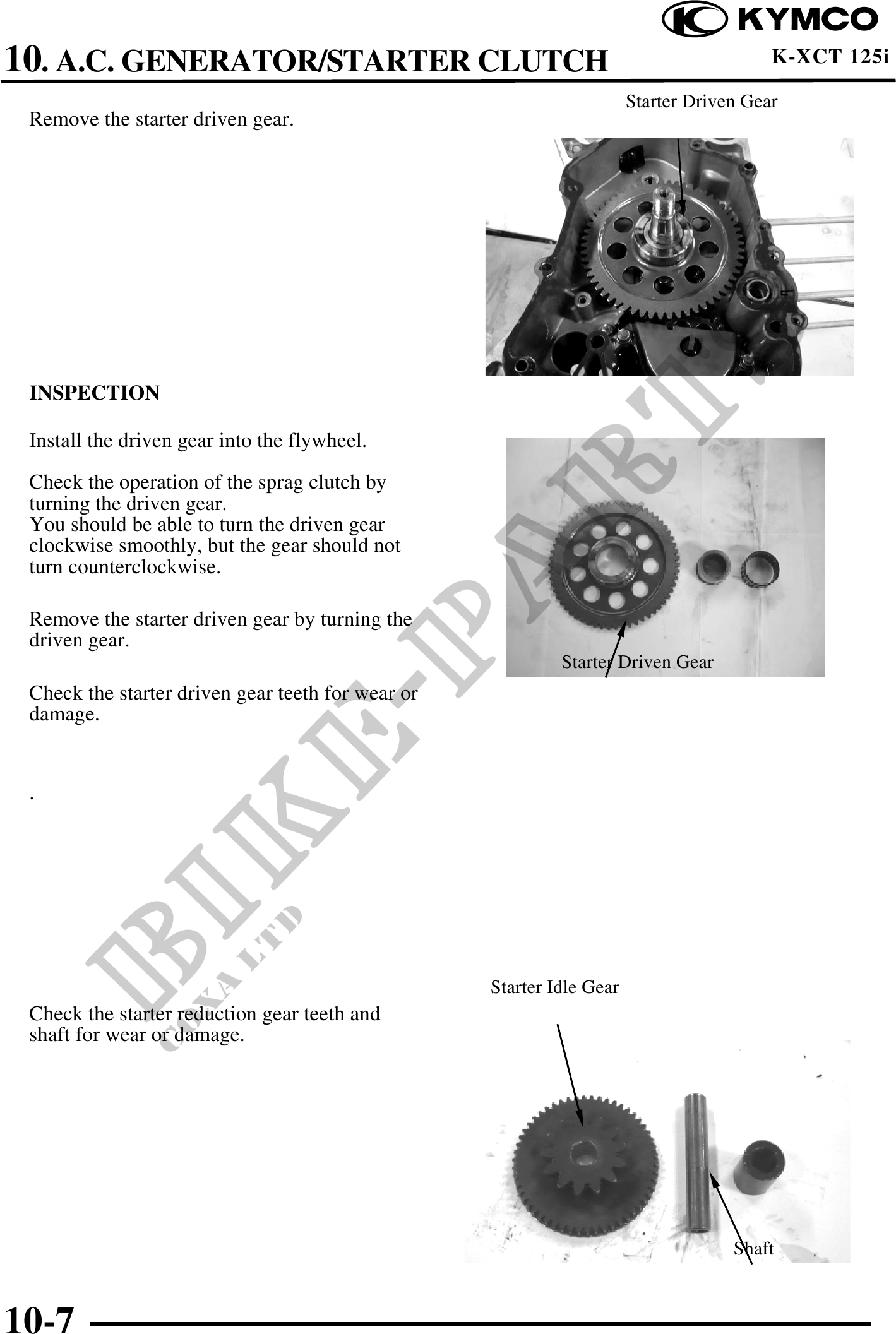

10. A.C. GENERATOR/STARTER CLUTCH K-XCT 125i
Starter Driven Gear
Remove the starter driven gear.
INSPECTION
Install the driven gear into the flywheel.
Check the operation of the sprag clutch by
turning the driven gear.
You should be able to turn the driven gear
clockwise smoothly, but the gear should not
turn counterclockwise.
Remove the starter driven gear by turning the
driven gear.
Starter Driven Gear
Check the starter driven gear teeth for wear or
damage.
.
Service limit: 41 mm (1.64 in)
Service limit: 20.15 mm (0.806 in)
Starter Idle Gear
Check the starter reduction gear teeth and
shaft for wear or damage.
Shaft
10-7
