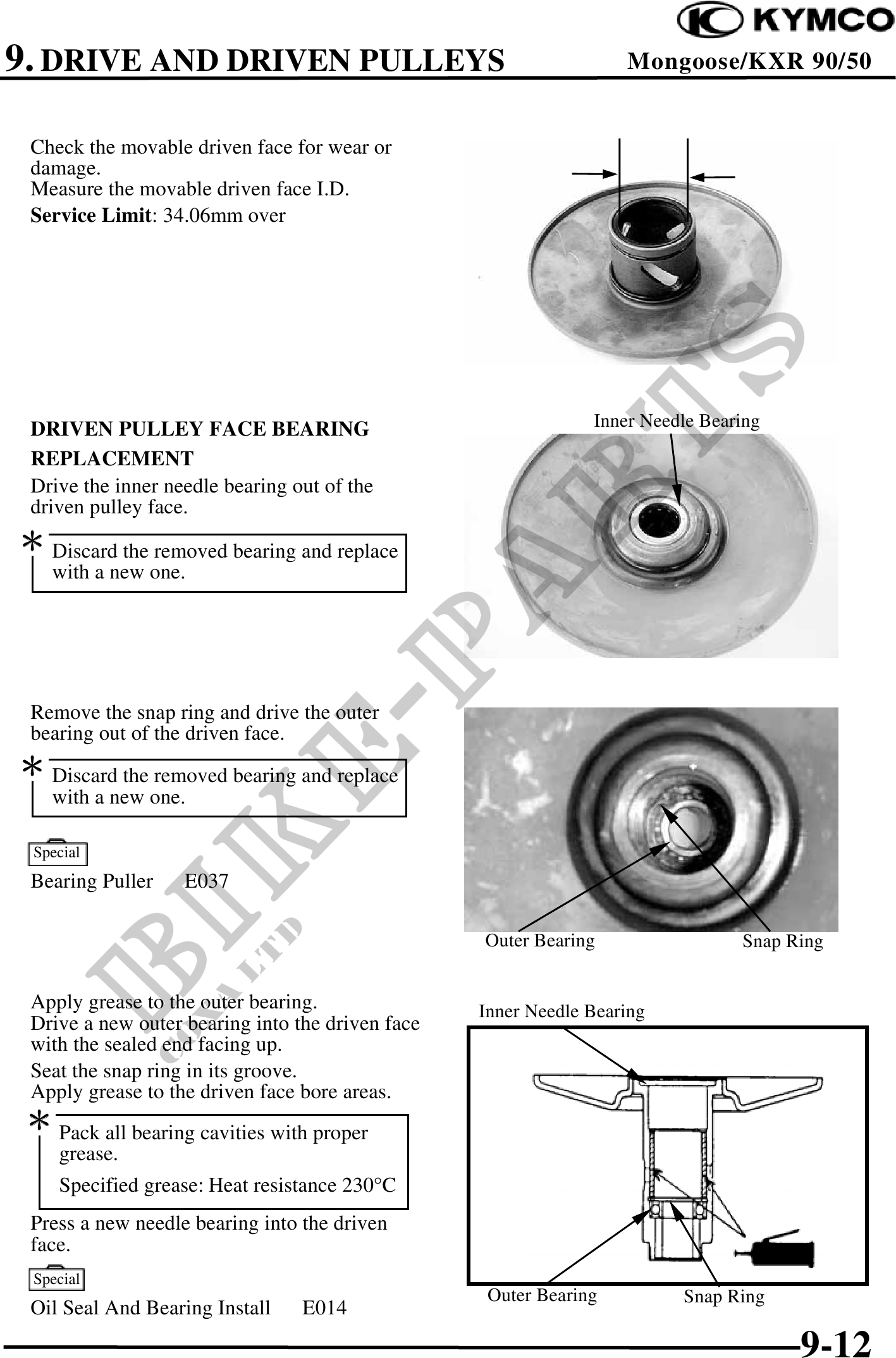

9. DRIVE AND DRIVEN PULLEYS Mongoose/KXR 90/50
Check the movable driven face for wear or
damage.
Measure the movable driven face I.D.
Service Limit: 34.06mm over
DRIVEN PULLEY FACE BEARING Inner Needle Bearing
REPLACEMENT
Drive the inner needle bearing out of the
driven pulley face.
Discard the removed bearing and replace
with a new one.
Remove the snap ring and drive the outer
bearing out of the driven face.
Discard the removed bearing and replace
with a new one.
Special
Bearing Puller E037
Outer Bearing Snap Ring
Apply grease to the outer bearing. Inner Needle Bearing
Drive a new outer bearing into the driven face
with the sealed end facing up.
Seat the snap ring in its groove.
Apply grease to the driven face bore areas.
Pack all bearing cavities with proper
grease.
Specified grease: Heat resistance 230°C
Press a new needle bearing into the driven
face.
Special
Outer Bearing Snap Ring
Oil Seal And Bearing Install E014
9-12
