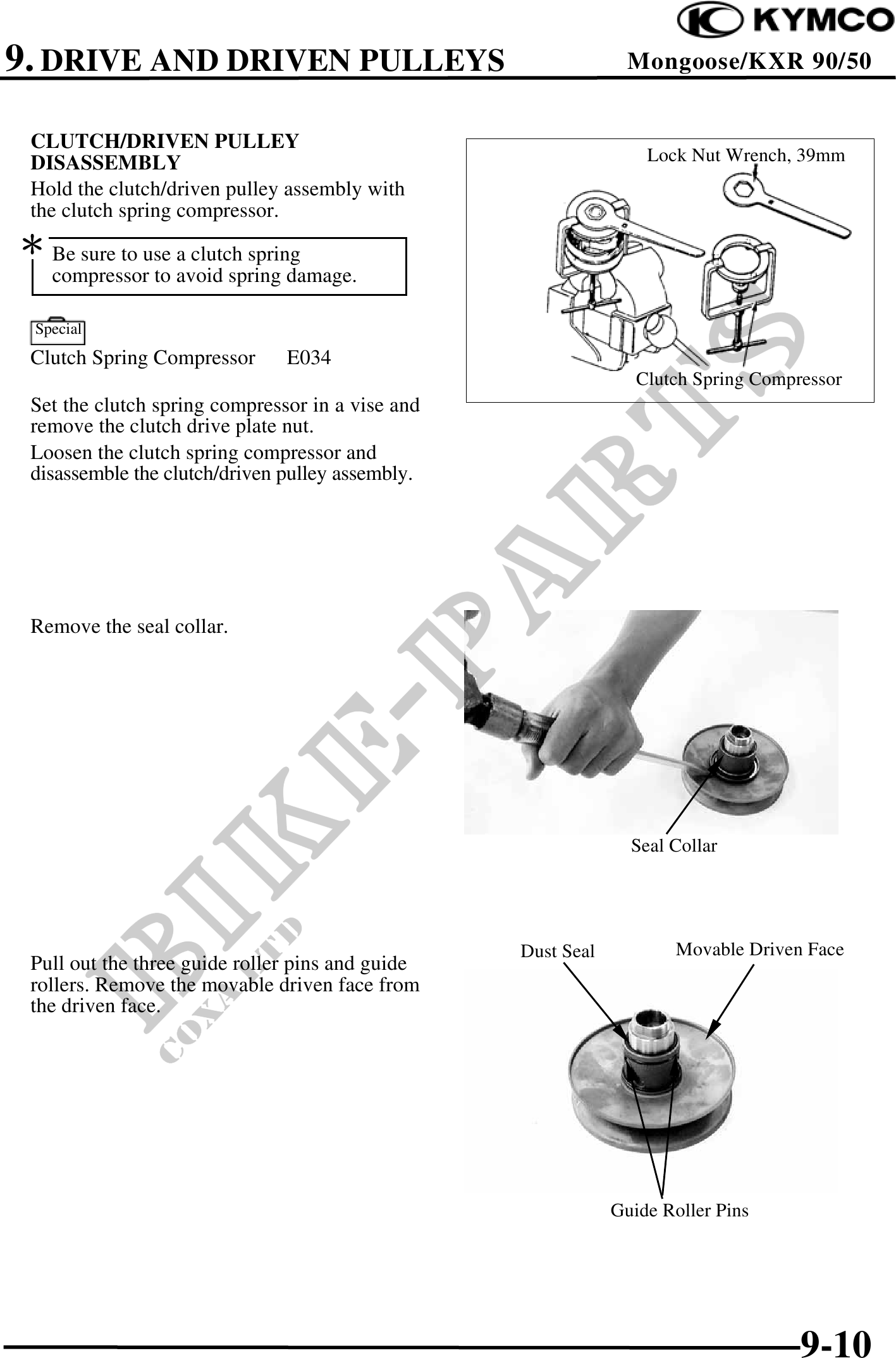

9. DRIVE AND DRIVEN PULLEYS Mongoose/KXR 90/50
CLUTCH/DRIVEN PULLEY
DISASSEMBLY Lock Nut Wrench, 39mm
Hold the clutch/driven pulley assembly with
the clutch spring compressor.
Be sure to use a clutch spring
compressor to avoid spring damage.
Special
Clutch Spring Compressor E034
Clutch Spring Compressor
Set the clutch spring compressor in a vise and
remove the clutch drive plate nut.
Loosen the clutch spring compressor and
disassemble the clutch/driven pulley assembly.
Remove the seal collar.
Seal Collar
Dust Seal Movable Driven Face
Pull out the three guide roller pins and guide
rollers. Remove the movable driven face from
the driven face.
Guide Roller Pins
9-10
