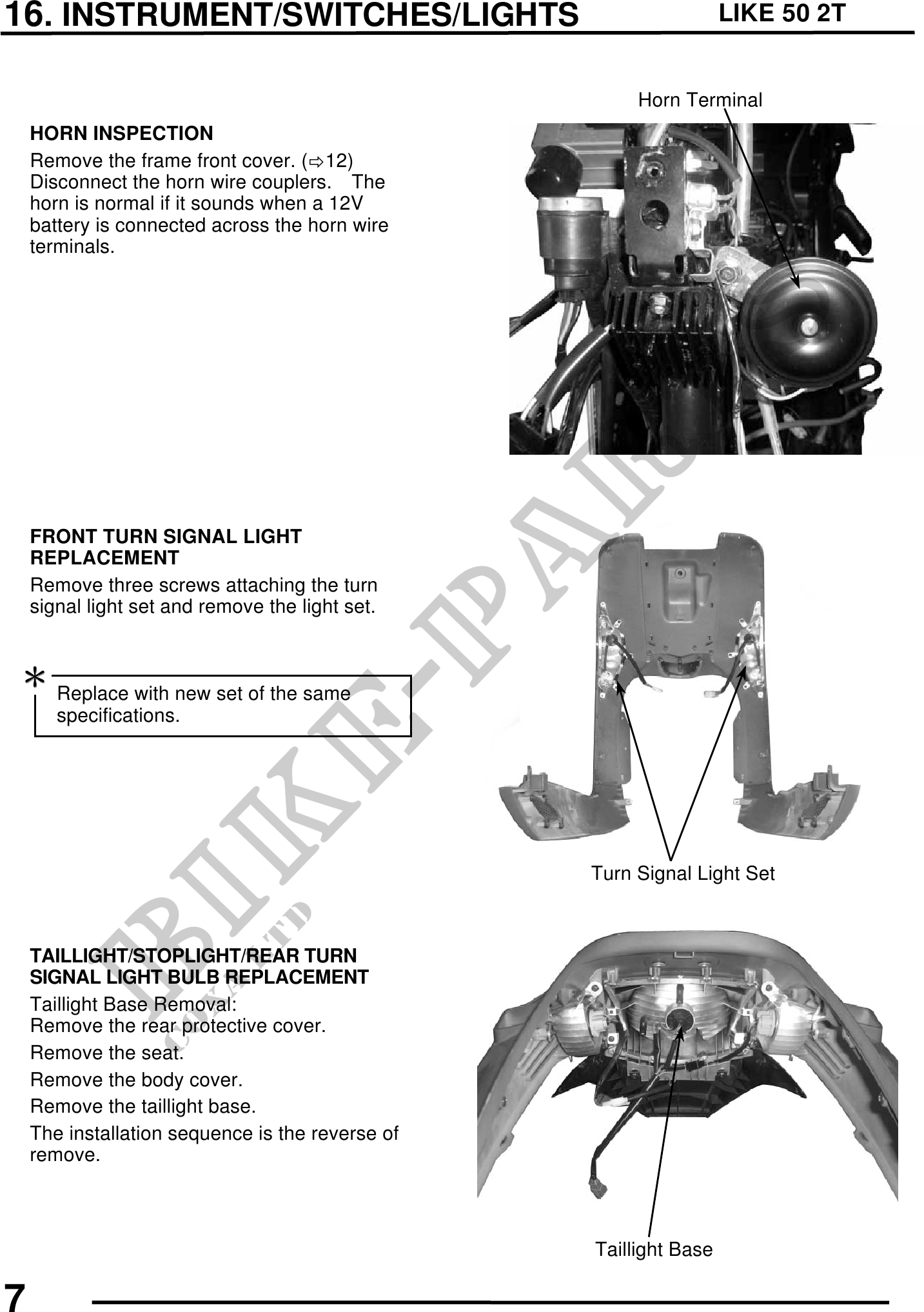

16. INSTRUMENT/SWITCHES/LIGHTS LIKE 50 2T
Horn Terminal
HORN INSPECTION
Remove the frame front cover. ( 12)
Disconnect the horn wire couplers. The
horn is normal if it sounds when a 12V
battery is connected across the horn wire
terminals.
FRONT TURN SIGNAL LIGHT
REPLACEMENT
Remove three screws attaching the turn
signal light set and remove the light set.
Replace with new set of the same
specifications.
Turn Signal Light Set
TAILLIGHT/STOPLIGHT/REAR TURN
SIGNAL LIGHT BULB REPLACEMENT
Taillight Base Removal:
Remove the rear protective cover.
Remove the seat.
Remove the body cover.
Remove the taillight base.
The installation sequence is the reverse of
remove.
Taillight Base
7
