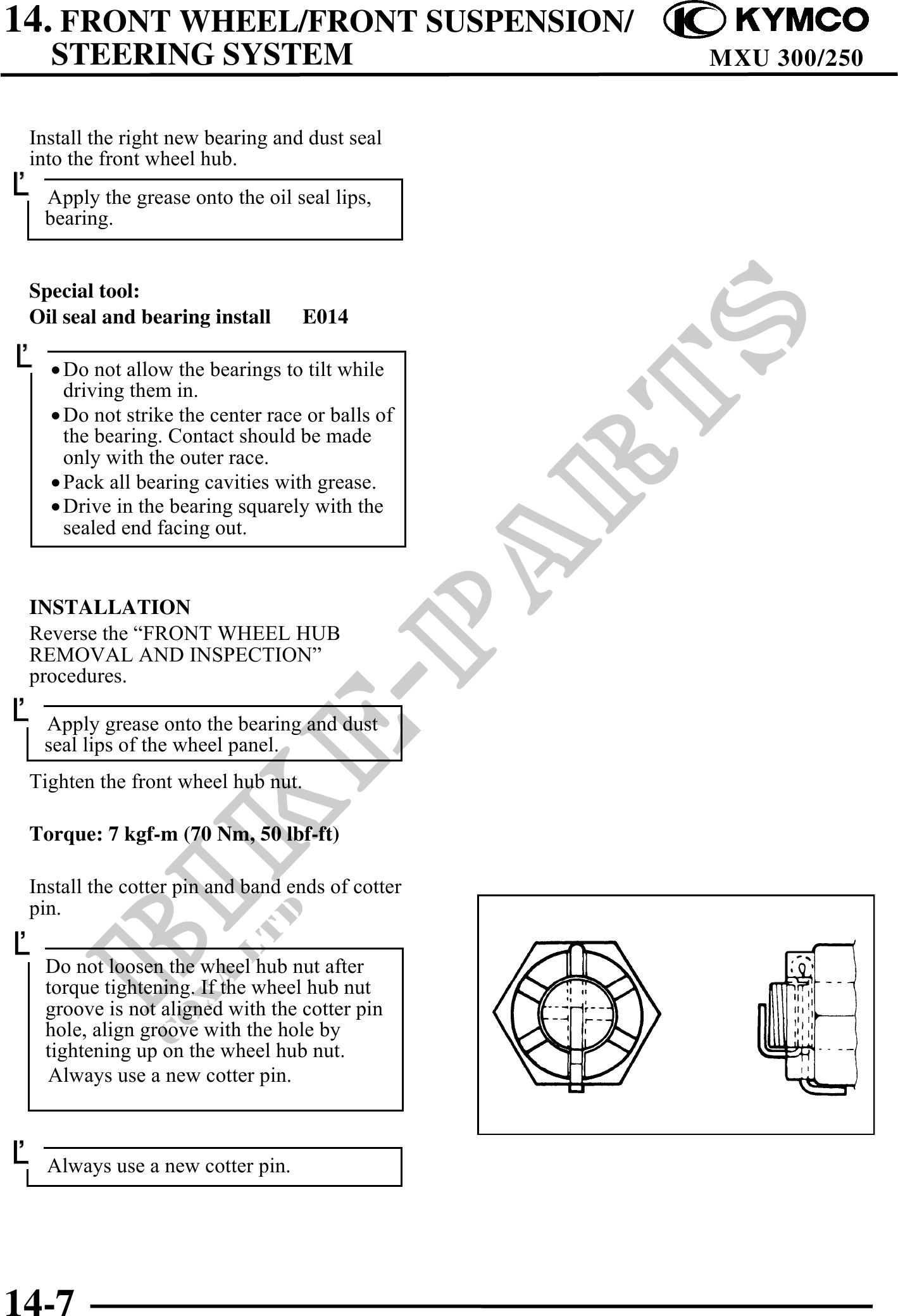

14. FRONT WHEEL/FRONT SUSPENSION/ STEERING SYSTEM MXU 300/250 Install the right new bearing and dust seal into the front wheel hub. Apply the grease onto the oil seal lips, bearing. Special tool: Oil seal and bearing install E014 · Do not allow the bearings to tilt while driving them in. · Do not strike the center race or balls of the bearing. Contact should be made only with the outer race. · Pack all bearing cavities with grease. · Drive in the bearing squarely with the sealed end facing out. INSTALLATION Reverse the "FRONT WHEEL HUB REMOVAL AND INSPECTION" procedures. Apply grease onto the bearing and dust seal lips of the wheel panel. Tighten the front wheel hub nut. Torque: 7 kgf-m (70 Nm, 50 lbf-ft) Install the cotter pin and band ends of cotter pin. Do not loosen the wheel hub nut after torque tightening. If the wheel hub nut groove is not aligned with the cotter pin hole, align groove with the hole by tightening up on the wheel hub nut. Always use a new cotter pin. Always use a new cotter pin. 14-7
