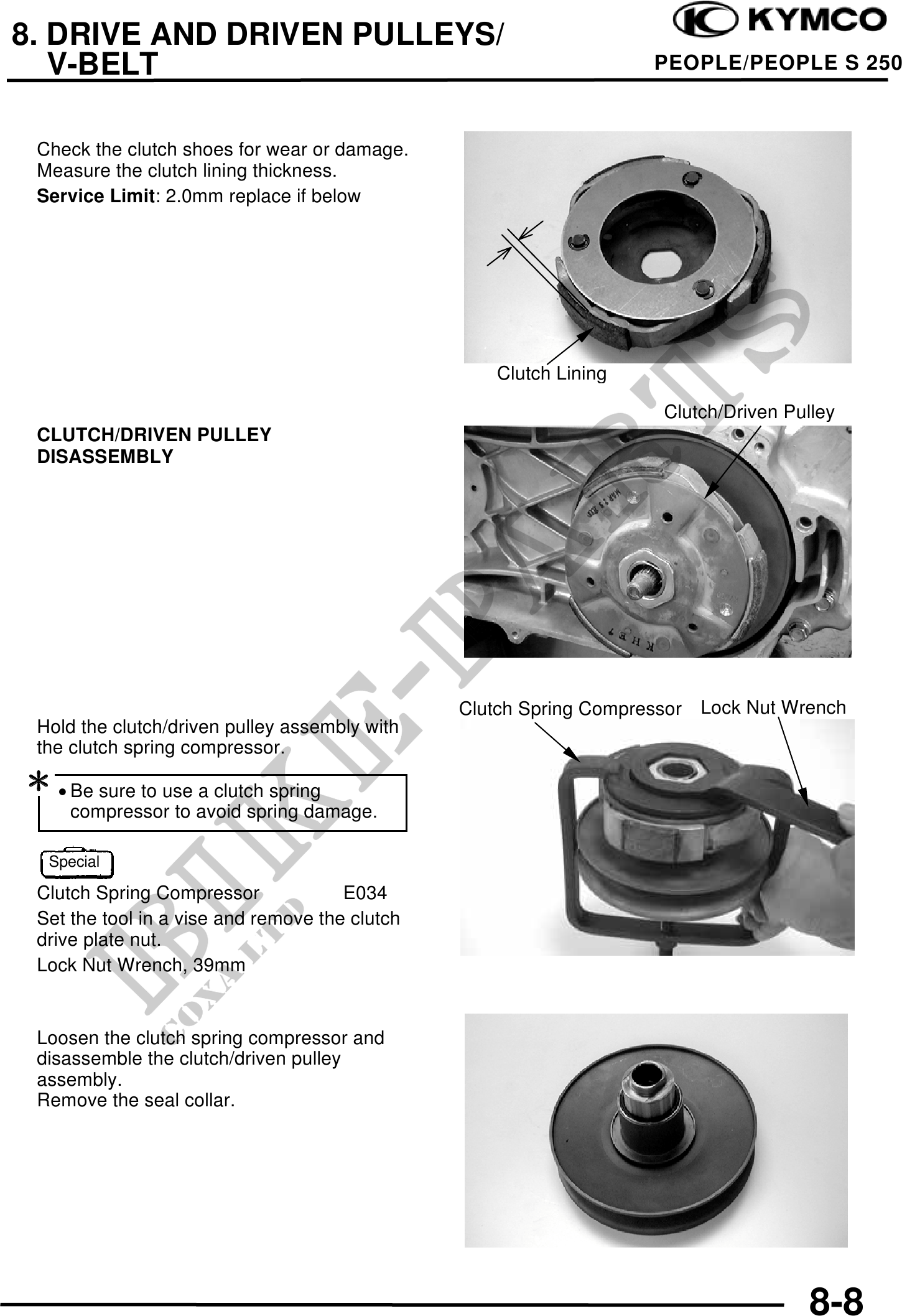

8. DRIVE AND DRIVEN PULLEYS/ V-BELT PEOPLE/PEOPLE S 250 Check the clutch shoes for wear or damage. Measure the clutch lining thickness. Service Limit: 2.0mm replace if below Clutch Lining Clutch/Driven Pulley CLUTCH/DRIVEN PULLEY DISASSEMBLY Clutch Spring Compressor Lock Nut Wrench Hold the clutch/driven pulley assembly with the clutch spring compressor. · Be sure to use a clutch spring compressor to avoid spring damage. Special Clutch Spring Compressor E034 Set the tool in a vise and remove the clutch drive plate nut. Lock Nut Wrench, 39mm Loosen the clutch spring compressor and disassemble the clutch/driven pulley assembly. Remove the seal collar. 8-8
