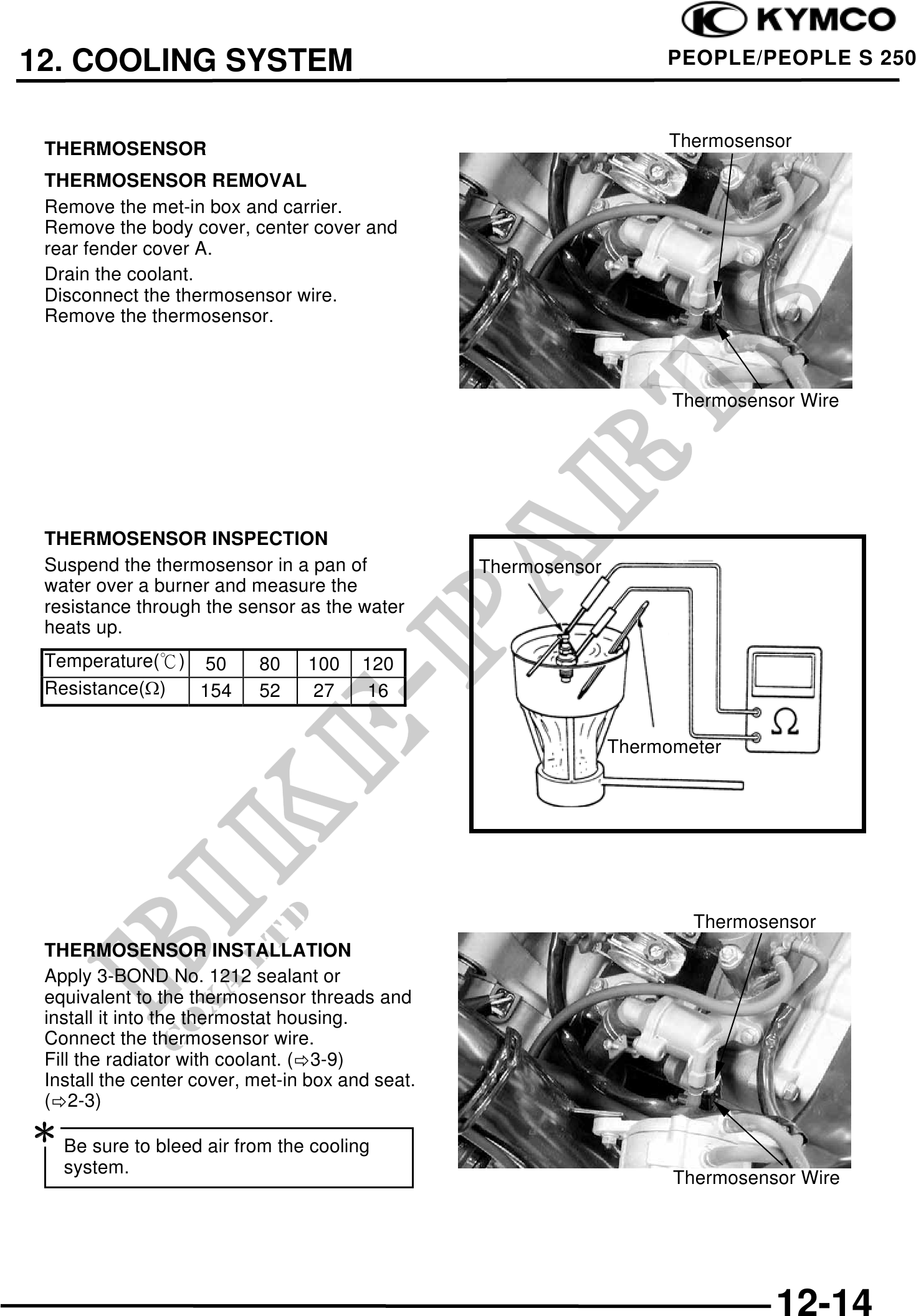

12. COOLING SYSTEM PEOPLE/PEOPLE S 250 THERMOSENSOR Thermosensor THERMOSENSOR REMOVAL Remove the met-in box and carrier. Remove the body cover, center cover and rear fender cover A. Drain the coolant. Disconnect the thermosensor wire. Remove the thermosensor. Thermosensor Wire THERMOSENSOR INSPECTION Suspend the thermosensor in a pan of Thermosensor water over a burner and measure the resistance through the sensor as the water heats up. Temperature() 50 80 100 120 Resistance() 154 52 27 16 Thermometer Thermosensor THERMOSENSOR INSTALLATION Apply 3-BOND No. 1212 sealant or equivalent to the thermosensor threads and install it into the thermostat housing. Connect the thermosensor wire. Fill the radiator with coolant. ( 3-9) Install the center cover, met-in box and seat. ( 2-3) Be sure to bleed air from the cooling system. Thermosensor Wire 12-14
