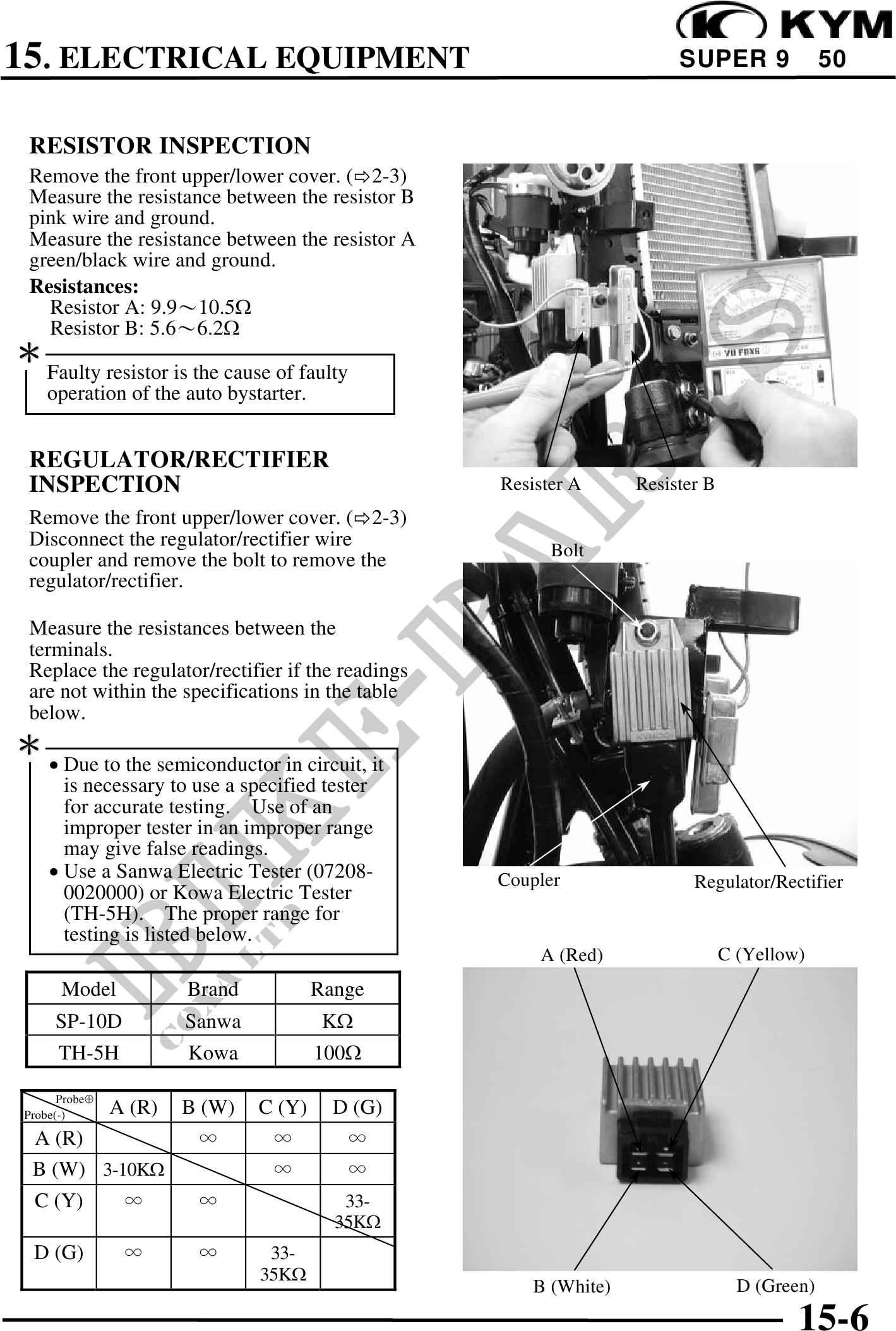

          15. ELECTRICAL EQUIPMENT                                                SUPER 9               50


 RESISTOR INSPECTION
 Remove the front upper/lower cover. ( 2-3)
 Measure the resistance between the resistor B
 pink wire and ground.
 Measure the resistance between the resistor A
 green/black wire and ground.
 Resistances:
   Resistor A: 9.910.5
   Resistor B: 5.66.2

    Faulty resistor is the cause of faulty
    operation of the auto bystarter.


 REGULATOR/RECTIFIER
 INSPECTION                                        Resister A      Resister B
 Remove the front upper/lower cover. ( 2-3)
 Disconnect the regulator/rectifier wire
                                                         Bolt
 coupler and remove the bolt to remove the
 regulator/rectifier.

 Measure the resistances between the
 terminals.
 Replace the regulator/rectifier if the readings
 are not within the specifications in the table
 below.

    · Due to the semiconductor in circuit, it
      is necessary to use a specified tester
      for accurate testing. Use of an
      improper tester in an improper range
      may give false readings.
    · Use a Sanwa Electric Tester (07208-          Coupler                Regulator/Rectifier
      0020000) or Kowa Electric Tester
      (TH-5H). The proper range for
      testing is listed below.
                                                       A (Red)                  C (Yellow)
      Model            Brand           Range
     SP-10D            Sanwa            K
     TH-5H             Kowa            100

       Probe
 Probe(-)      A (R)   B (W)   C (Y)     D (G)
  A (R)
  B (W) 3-10K
  C (Y)                                   33-
                                         35K
  D (G)                         33-
                               35K
                                                       B (White)                  D (Green)
                                                                                         15-6
