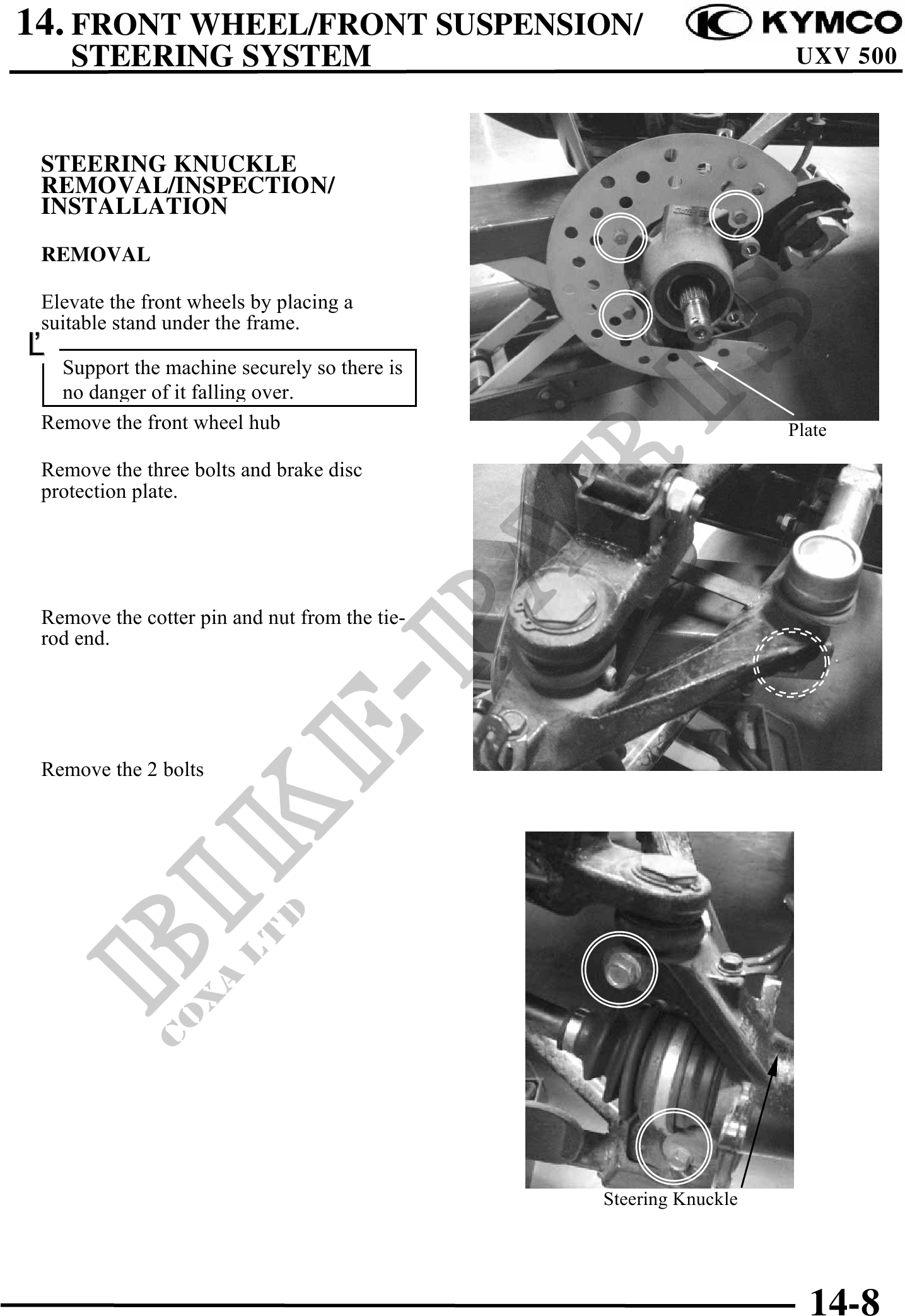

14. FRONT WHEEL/FRONT SUSPENSION/
STEERING SYSTEM UXV 500
STEERING KNUCKLE
REMOVAL/INSPECTION/
INSTALLATION
REMOVAL
Elevate the front wheels by placing a
suitable stand under the frame.
Support the machine securely so there is
no danger of it falling over.
Remove the front wheel hub Plate
Remove the three bolts and brake disc
protection plate.
Remove the cotter pin and nut from the tie-
rod end.
Remove the 2 bolts
Steering Knuckle
14-8
