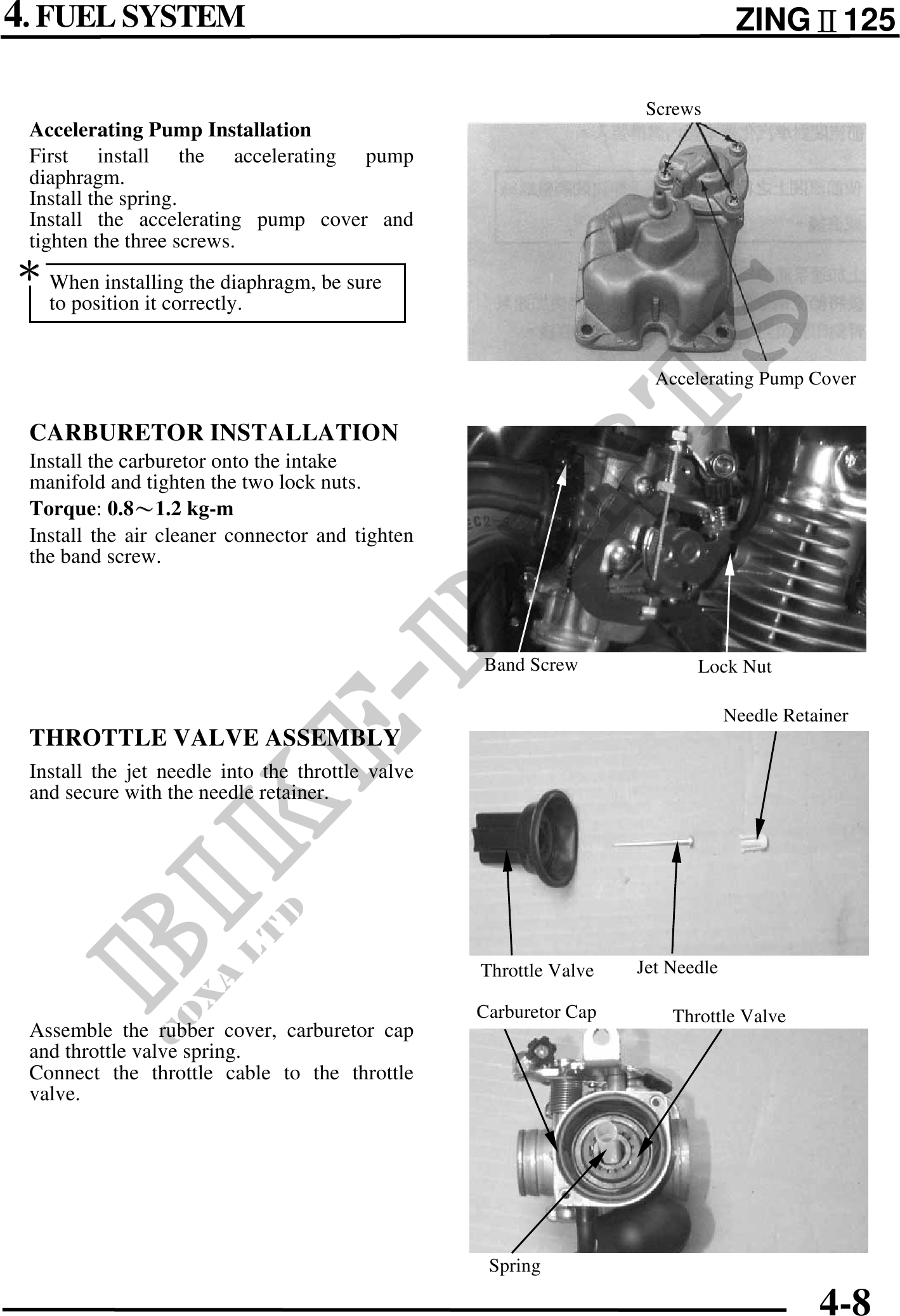

          4. FUEL SYSTEM                                                                   ZING125

                                                                    Screws
 Accelerating Pump Installation
 First install the accelerating pump
 diaphragm.
 Install the spring.
 Install the accelerating pump cover and
 tighten the three screws.
 When installing the diaphragm, be sure
   to position it correctly.


                                                                     Accelerating Pump Cover

 CARBURETOR INSTALLATION
 Install the carburetor onto the intake
 manifold and tighten the two lock nuts.
 Torque: 0.81.2 kg-m
 Install the air cleaner connector and tighten
 the band screw.




                                                  Band Screw              Lock Nut

                                                                                Needle Retainer
 THROTTLE VALVE ASSEMBLY
 Install the jet needle into the throttle valve
 and secure with the needle retainer.




                                                  Throttle Valve   Jet Needle

                                                  Carburetor Cap       Throttle Valve
 Assemble the rubber cover, carburetor cap
 and throttle valve spring.
 Connect the throttle cable to the throttle
 valve.




                                                   Spring

                                                                                           4-8
