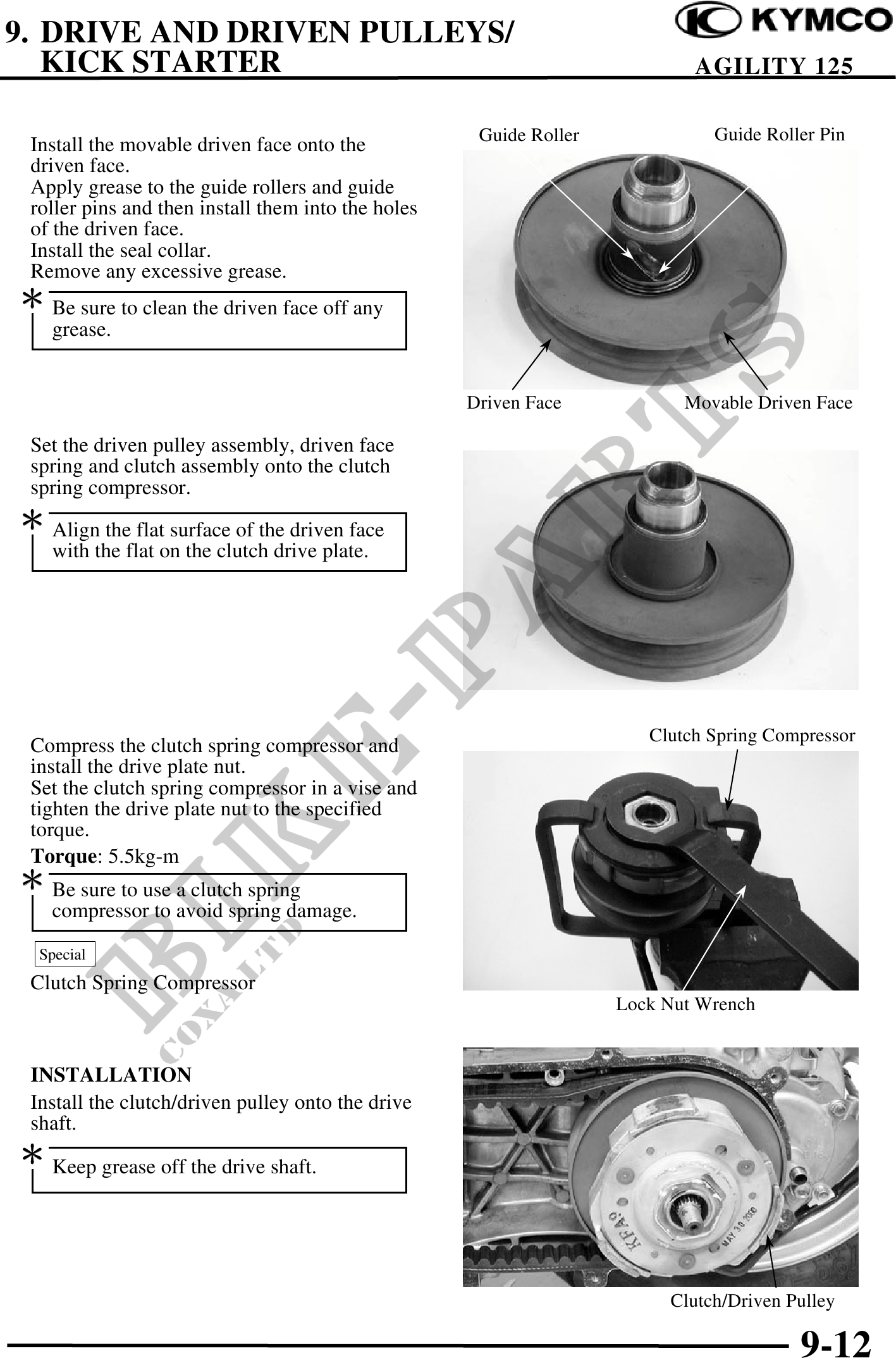

9. DRIVE AND DRIVEN PULLEYS/ KICK STARTER AGILITY 125 Guide Roller Guide Roller Pin Install the movable driven face onto the driven face. Apply grease to the guide rollers and guide roller pins and then install them into the holes of the driven face. Install the seal collar. Remove any excessive grease. Be sure to clean the driven face off any grease. Driven Face Movable Driven Face Set the driven pulley assembly, driven face spring and clutch assembly onto the clutch spring compressor. Align the flat surface of the driven face with the flat on the clutch drive plate. Clutch Spring Compressor Compress the clutch spring compressor and install the drive plate nut. Set the clutch spring compressor in a vise and tighten the drive plate nut to the specified torque. Torque: 5.5kg-m Be sure to use a clutch spring compressor to avoid spring damage. Special Clutch Spring Compressor Lock Nut Wrench INSTALLATION Install the clutch/driven pulley onto the drive shaft. Keep grease off the drive shaft. Clutch/Driven Pulley 9-12
