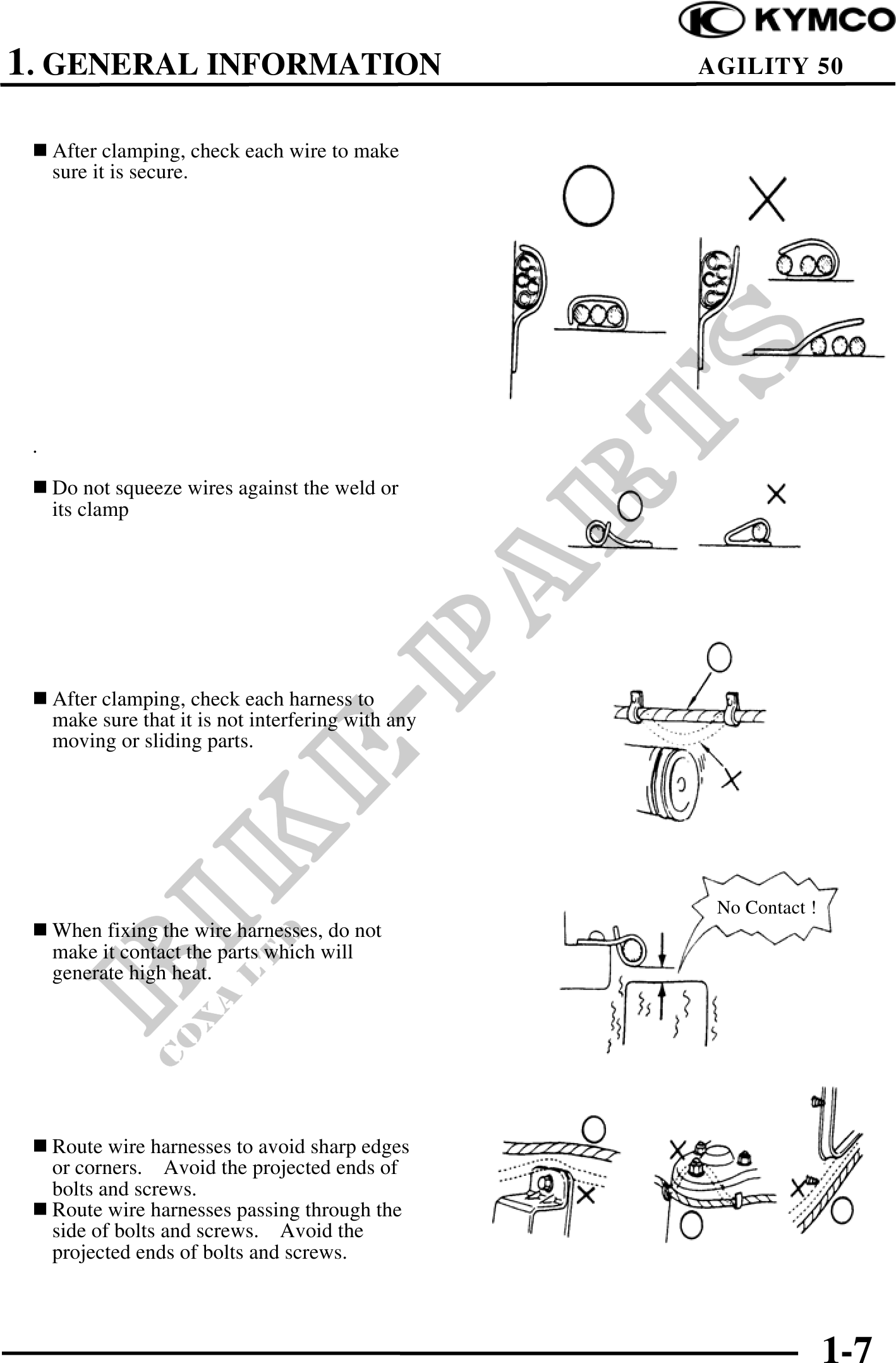

          1. GENERAL INFORMATION                               AGILITY 50


     After clamping, check each wire to make
     sure it is secure.




 .

     Do not squeeze wires against the weld or
     its clamp




     After clamping, check each harness to
     make sure that it is not interfering with any
     moving or sliding parts.




                                                      No Contact !
     When fixing the wire harnesses, do not
     make it contact the parts which will
     generate high heat.




     Route wire harnesses to avoid sharp edges
     or corners. Avoid the projected ends of
     bolts and screws.
     Route wire harnesses passing through the
     side of bolts and screws. Avoid the
     projected ends of bolts and screws.



                                                                     1-7
