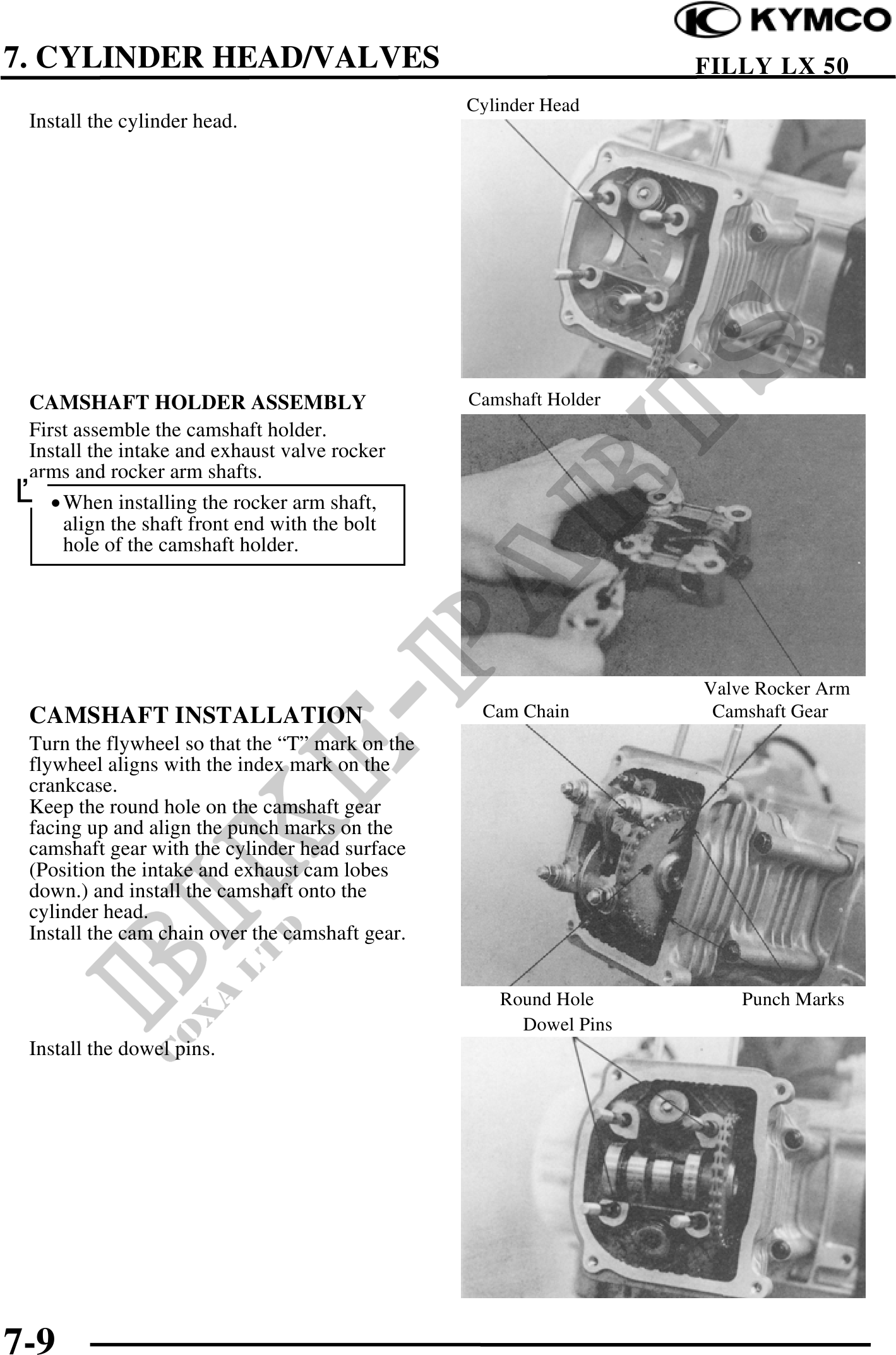

          7. CYLINDER HEAD/VALVES                                            FILLY LX 50
                                                 Cylinder Head
 Install the cylinder head.




CAMSHAFT HOLDER ASSEMBLY                         Camshaft Holder
First assemble the camshaft holder.
Install the intake and exhaust valve rocker
arms and rocker arm shafts.
 · When installing the rocker arm shaft,
    align the shaft front end with the bolt
    hole of the camshaft holder.




                                                                   Valve Rocker Arm
 CAMSHAFT INSTALLATION                            Cam Chain         Camshaft Gear
 Turn the flywheel so that the "T" mark on the
 flywheel aligns with the index mark on the
 crankcase.
 Keep the round hole on the camshaft gear
 facing up and align the punch marks on the
 camshaft gear with the cylinder head surface
 (Position the intake and exhaust cam lobes
 down.) and install the camshaft onto the
 cylinder head.
 Install the cam chain over the camshaft gear.


                                                    Round Hole         Punch Marks
                                                      Dowel Pins
 Install the dowel pins.




7-9
