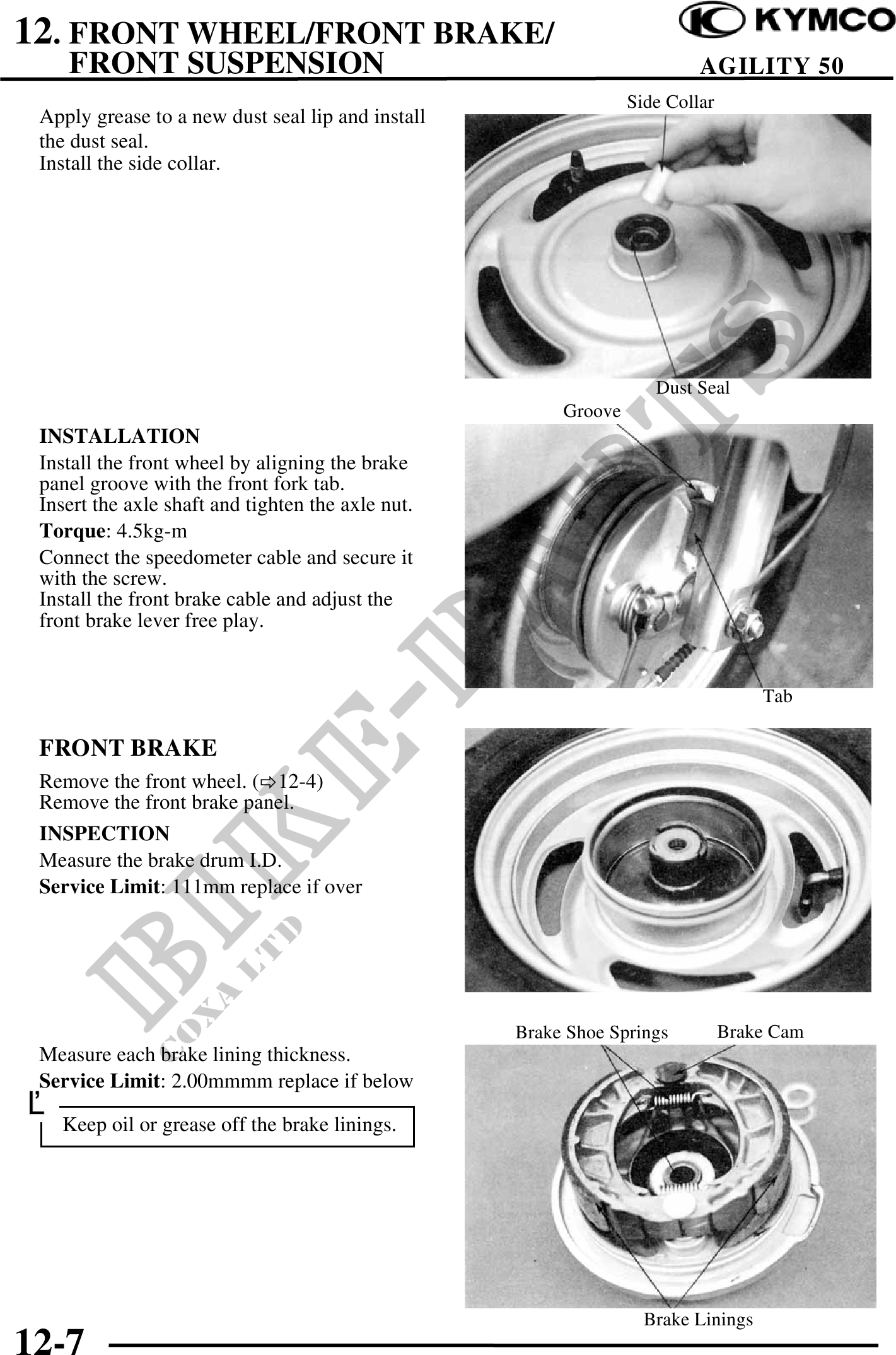

12. FRONT WHEEL/FRONT BRAKE/
FRONT SUSPENSION AGILITY 50
Side Collar
Apply grease to a new dust seal lip and install
the dust seal.
Install the side collar.
Dust Seal
Groove
INSTALLATION
Install the front wheel by aligning the brake
panel groove with the front fork tab.
Insert the axle shaft and tighten the axle nut.
Torque: 4.5kg-m
Connect the speedometer cable and secure it
with the screw.
Install the front brake cable and adjust the
front brake lever free play.
Tab
FRONT BRAKE
Remove the front wheel. ( 12-4)
Remove the front brake panel.
INSPECTION
Measure the brake drum I.D.
Service Limit: 111mm replace if over
Brake Shoe Springs Brake Cam
Measure each brake lining thickness.
Service Limit: 2.00mmmm replace if below
Keep oil or grease off the brake linings.
Brake Linings
12-7
