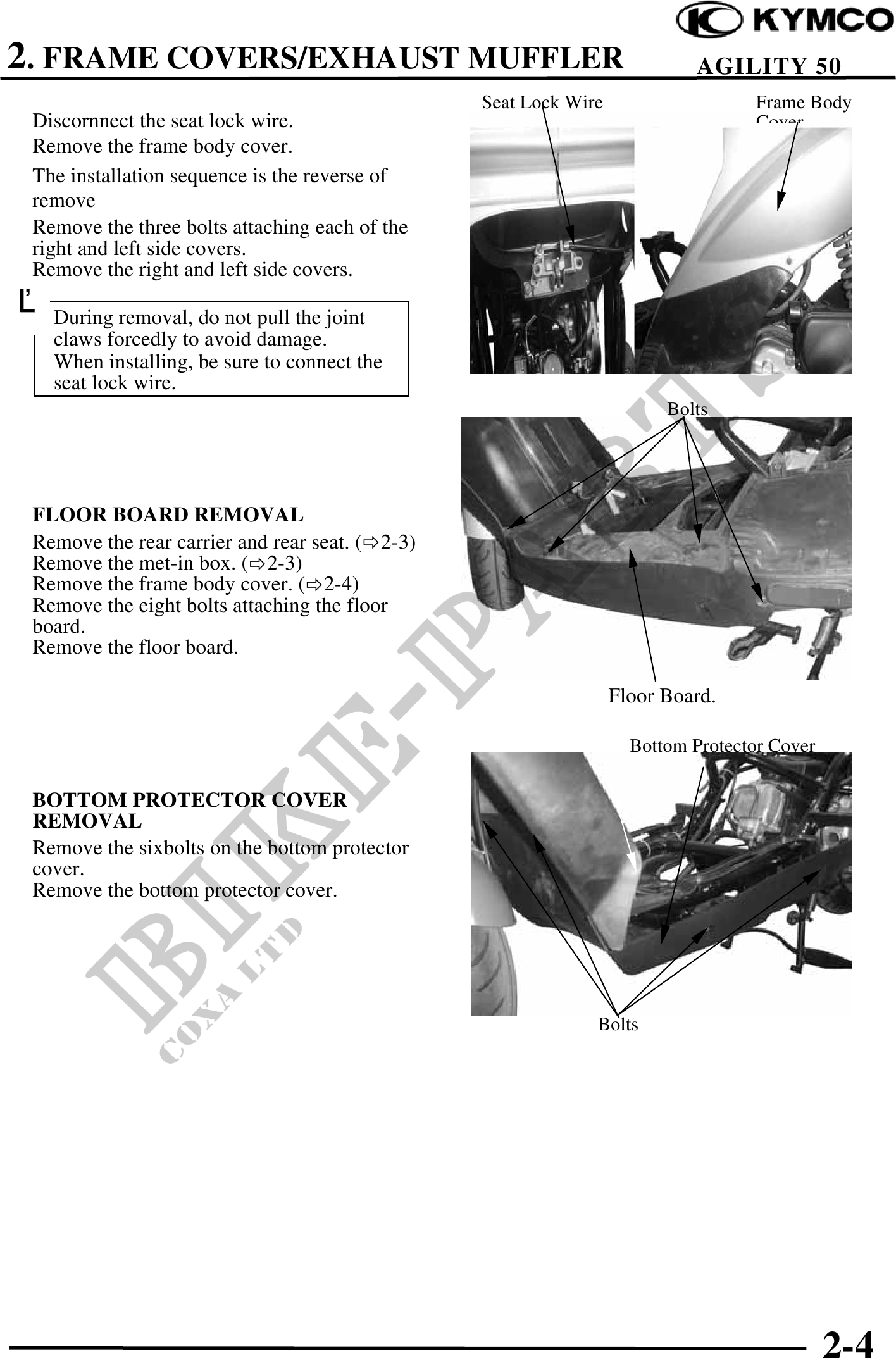

2. FRAME COVERS/EXHAUST MUFFLER AGILITY 50
Seat Lock Wire Frame Body
Discornnect the seat lock wire. Cover
Remove the frame body cover.
The installation sequence is the reverse of
remove
Remove the three bolts attaching each of the
right and left side covers.
Remove the right and left side covers.
During removal, do not pull the joint
claws forcedly to avoid damage.
When installing, be sure to connect the
seat lock wire.
Bolts
FLOOR BOARD REMOVAL
Remove the rear carrier and rear seat. ( 2-3)
Remove the met-in box. ( 2-3)
Remove the frame body cover. ( 2-4)
Remove the eight bolts attaching the floor
board.
Remove the floor board.
Floor Board.
Bottom Protector Cover
BOTTOM PROTECTOR COVER
REMOVAL
Remove the sixbolts on the bottom protector
cover.
Remove the bottom protector cover.
Bolts
2-4
