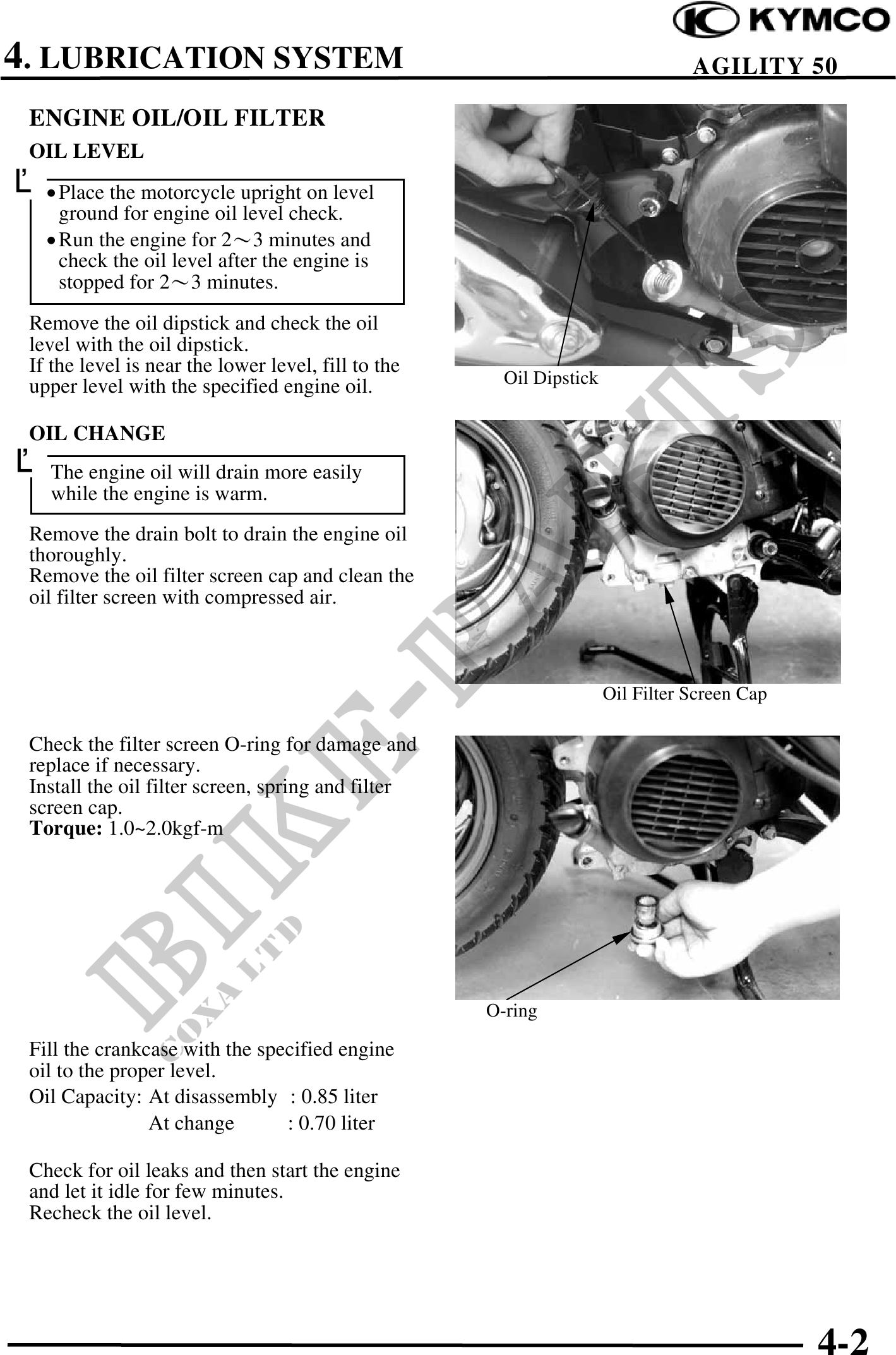

4. LUBRICATION SYSTEM AGILITY 50
ENGINE OIL/OIL FILTER
OIL LEVEL
· Place the motorcycle upright on level
ground for engine oil level check.
· Run the engine for 23 minutes and
check the oil level after the engine is
stopped for 23 minutes.
Remove the oil dipstick and check the oil
level with the oil dipstick.
If the level is near the lower level, fill to the
upper level with the specified engine oil. Oil Dipstick
OIL CHANGE
The engine oil will drain more easily
while the engine is warm.
Remove the drain bolt to drain the engine oil
thoroughly.
Remove the oil filter screen cap and clean the
oil filter screen with compressed air.
Oil Filter Screen Cap
Check the filter screen O-ring for damage and
replace if necessary.
Install the oil filter screen, spring and filter
screen cap.
Torque: 1.0~2.0kgf-m
O-ring
Fill the crankcase with the specified engine
oil to the proper level.
Oil Capacity: At disassembly : 0.85 liter
At change : 0.70 liter
Check for oil leaks and then start the engine
and let it idle for few minutes.
Recheck the oil level.
4-2
