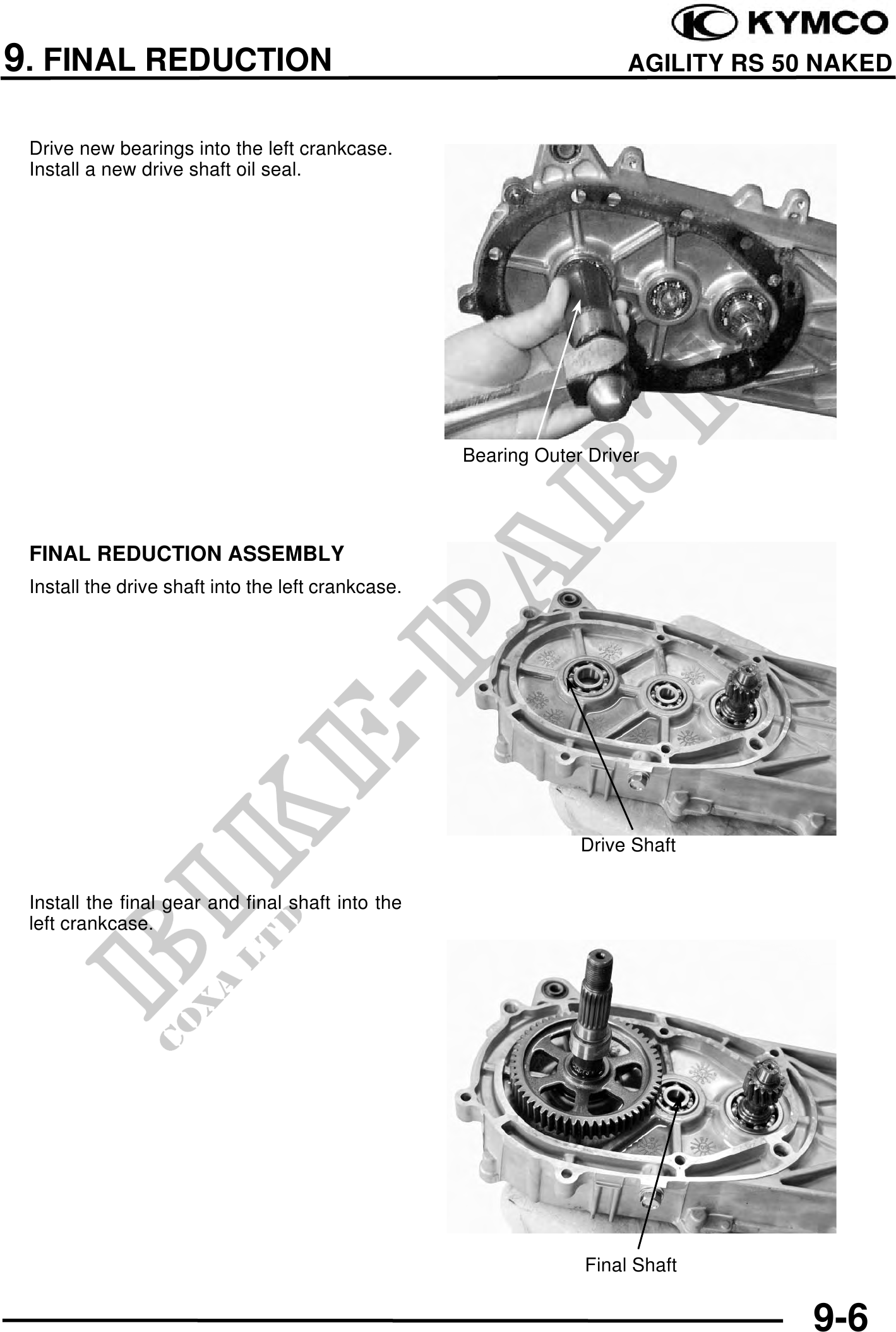

          9. FINAL REDUCTION                                                    AGILITY RS 50 NAKED


 Drive new bearings into the left crankcase.
 Install a new drive shaft oil seal.




                                                    Bearing Outer Driver




 FINAL REDUCTION ASSEMBLY
 Install the drive shaft into the left crankcase.




                                                                 Drive Shaft

 Install the final gear and final shaft into the
 left crankcase.




                                                                 Final Shaft


                                                                                   9-6
