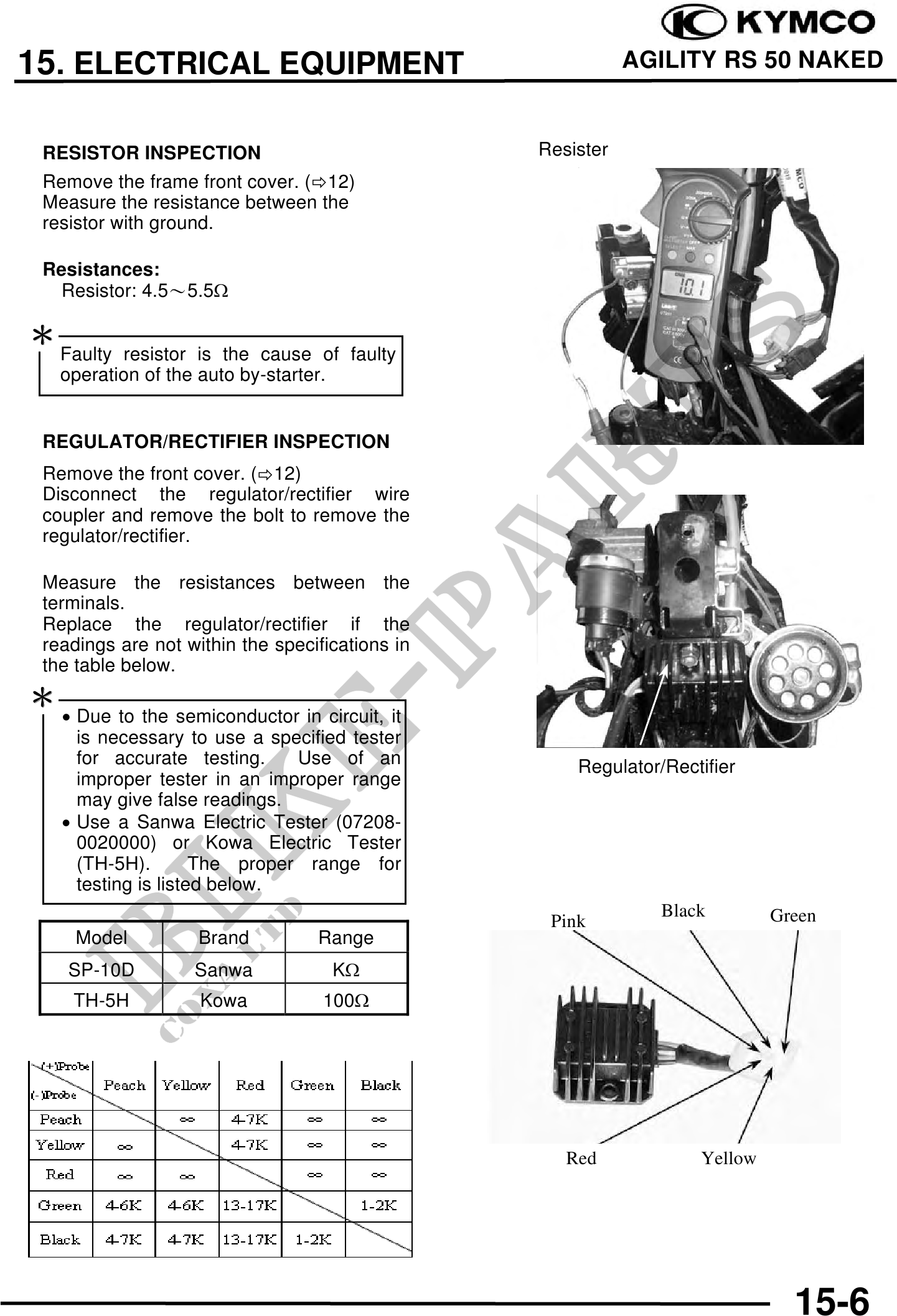

          15. ELECTRICAL EQUIPMENT                                    AGILITY RS 50 NAKED


 RESISTOR INSPECTION                             Resister
 Remove the frame front cover. ( 12)
 Measure the resistance between the
 resistor with ground.

 Resistances:
  Resistor: 4.55.5


   Faulty resistor is the cause of faulty
   operation of the auto by-starter.


 REGULATOR/RECTIFIER INSPECTION
 Remove the front cover. ( 12)
 Disconnect the regulator/rectifier wire
 coupler and remove the bolt to remove the
 regulator/rectifier.

 Measure the resistances between the
 terminals.
 Replace the regulator/rectifier if the
 readings are not within the specifications in
 the table below.

   · Due to the semiconductor in circuit, it
     is necessary to use a specified tester
     for accurate testing.     Use of an             Regulator/Rectifier
     improper tester in an improper range
     may give false readings.
   · Use a Sanwa Electric Tester (07208-
     0020000) or Kowa Electric Tester
     (TH-5H).        The proper range for
     testing is listed below.
                                                               Black        Green
                                                  Pink
     Model          Brand         Range
    SP-10D         Sanwa            K
    TH-5H           Kowa           100




                                                    Red            Yellow




                                                                              15-6
