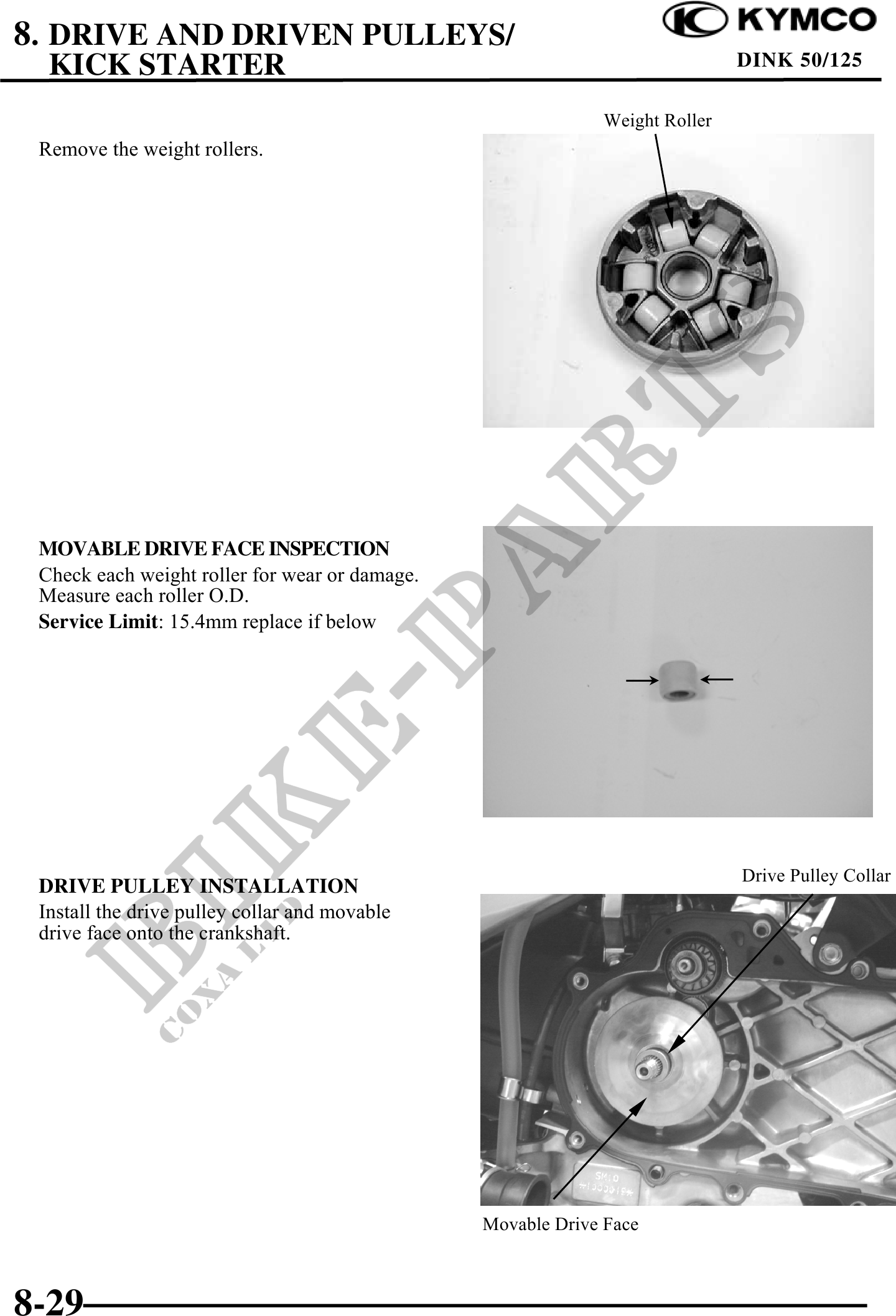

          8. DRIVE AND DRIVEN PULLEYS/
  KICK STARTER                                                               DINK 50/125

                                                             Weight Roller
 Remove the weight rollers.




 MOVABLE DRIVE FACE INSPECTION
 Check each weight roller for wear or damage.
 Measure each roller O.D.
 Service Limit: 15.4mm replace if below




                                                                             Drive Pulley Collar
 DRIVE PULLEY INSTALLATION
 Install the drive pulley collar and movable
 drive face onto the crankshaft.




                                                Movable Drive Face



8-29
