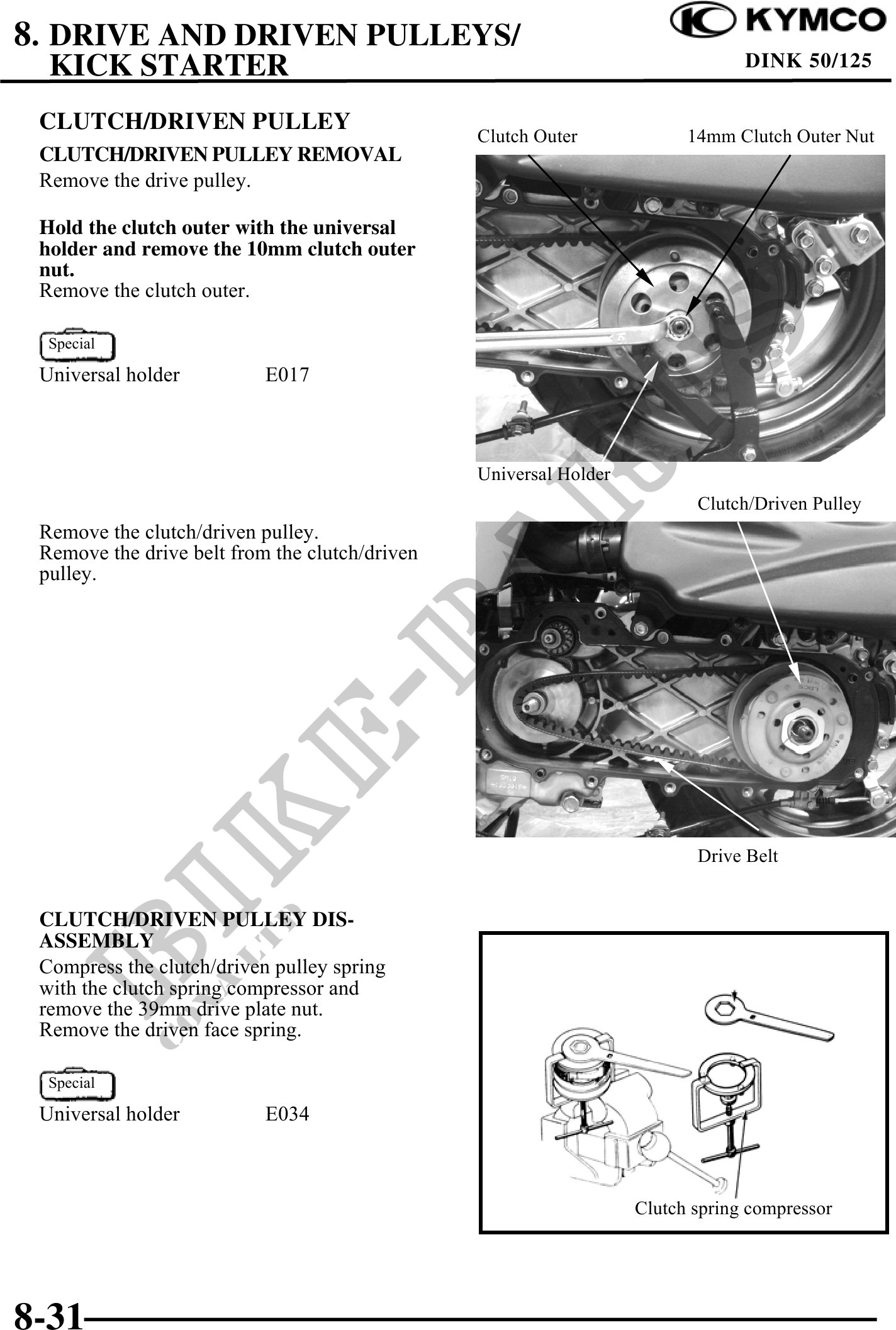

8. DRIVE AND DRIVEN PULLEYS/
KICK STARTER DINK 50/125
CLUTCH/DRIVEN PULLEY
Clutch Outer 14mm Clutch Outer Nut
CLUTCH/DRIVEN PULLEY REMOVAL
Remove the drive pulley.
Hold the clutch outer with the universal
holder and remove the 10mm clutch outer
nut.
Remove the clutch outer.
Special
Universal holder E017
Universal Holder
Clutch/Driven Pulley
Remove the clutch/driven pulley.
Remove the drive belt from the clutch/driven
pulley.
Drive Belt
CLUTCH/DRIVEN PULLEY DIS-
ASSEMBLY
Compress the clutch/driven pulley spring
with the clutch spring compressor and
remove the 39mm drive plate nut.
Remove the driven face spring.
Special
Universal holder E034
Clutch spring compressor
8-31
