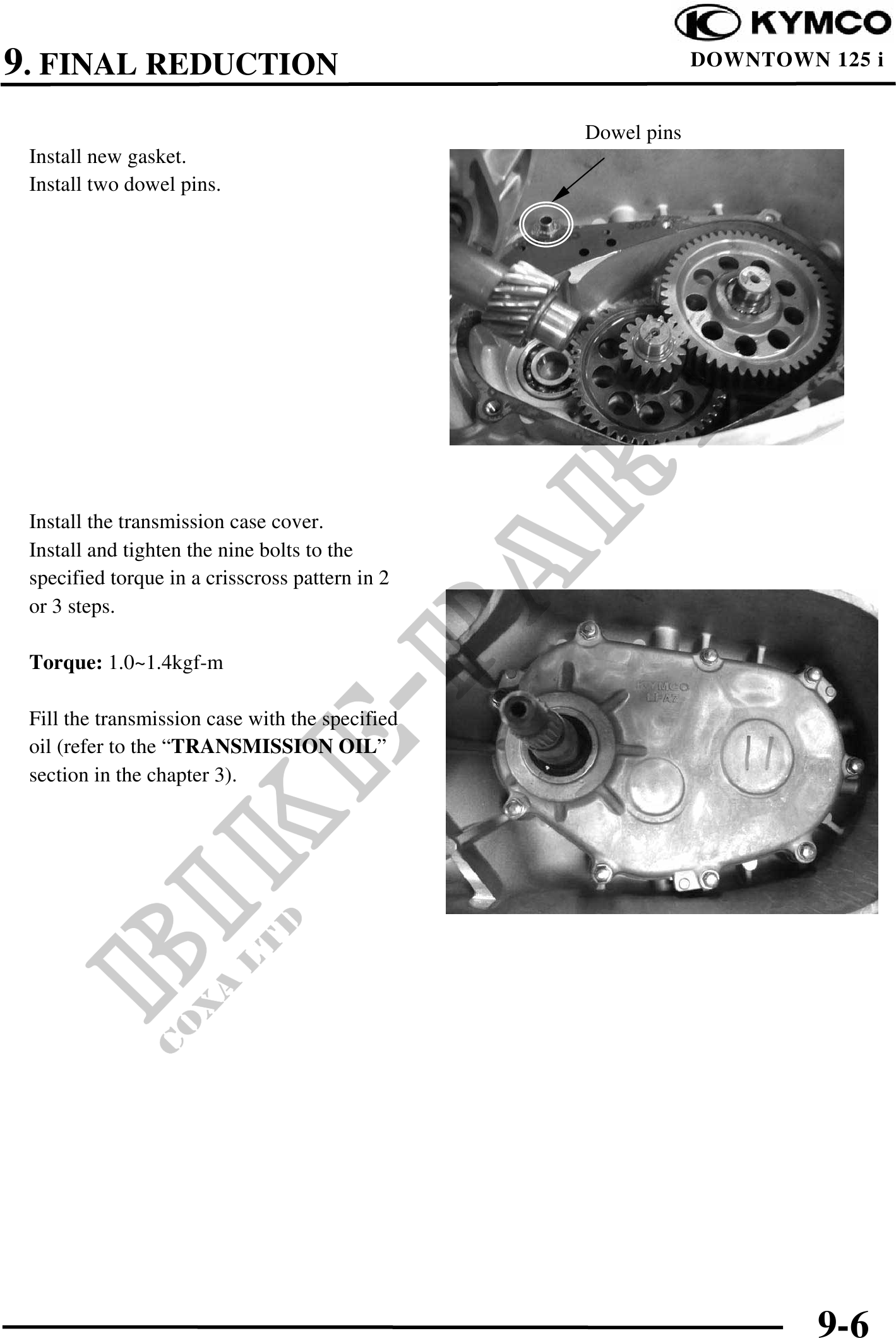

9. FINAL REDUCTION DOWNTOWN 125 i
Dowel pins
Install new gasket.
Install two dowel pins.
Install the transmission case cover.
Install and tighten the nine bolts to the
specified torque in a crisscross pattern in 2
or 3 steps.
Torque: 1.0~1.4kgf-m
Fill the transmission case with the specified
oil (refer to the "TRANSMISSION OIL"
section in the chapter 3).
9-6
